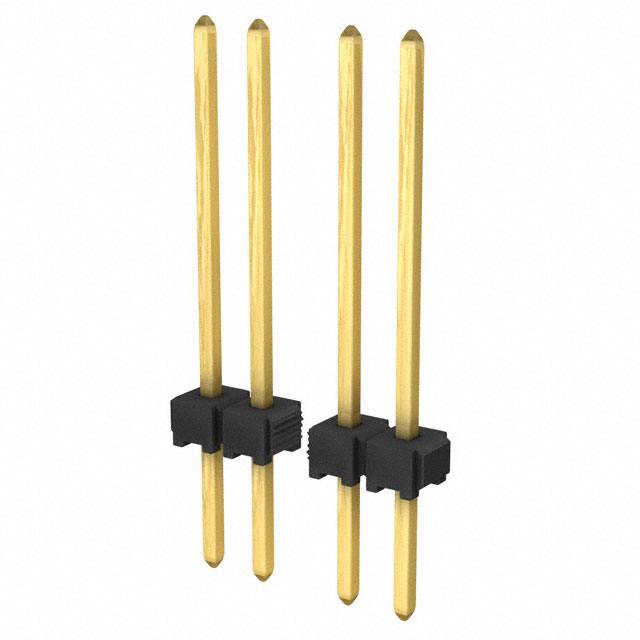

MTMM-136-13-G-S-450

Active

Samtec Inc.

CONN HEADER VERT 36POS 2MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsMTMM Series Datasheet Datasheet

MTMM-136-13-G-S-450

Active

Samtec Inc.

CONN HEADER VERT 36POS 2MM

Deep-Dive with AI

DocumentsMTMM Series Datasheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MTMM-136-13-G-S-450

Connector Type	Cuttable, Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	0.51 µm
Contact Finish Thickness - Mating	20 µin
Contact Finish Thickness - Post	3 µin
Contact Finish Thickness - Post	0.076 µm
Contact Length - Mating	11.43 mm
Contact Length - Mating	0.45 in
Contact Length - Post	0.164 in
Contact Length - Post	4.17 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	1.5 mm
Insulation Height	0.059 "
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	36
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Overall Contact Length	0.673 in
Overall Contact Length	17.09 mm
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

MTMM-136 Series

Part	Material Flammability Rating	Style	Pitch - Mating [x]	Pitch - Mating [x]	Overall Contact Length	Overall Contact Length	Connector Type	Insulation Height	Insulation Height	Contact Material	Contact Finish - Mating	Fastening Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Positions	Contact Finish - Post	Contact Shape	Current Rating (Amps)	Contact Length - Post	Contact Length - Post [x]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Mounting Type	Insulation Color	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Row Spacing - Mating	Row Spacing - Mating	Shrouding	Insulation Material	Contact Type	Number of Positions Loaded	Contact Length - Mating	Contact Length - Mating	Number of Rows	Contact Length - Post	Contact Length - Mating [x]	Contact Length - Mating [x]
Samtec Inc. MTMM-136-09-G-Q-335
Samtec Inc. MTMM-136-09-G-Q-220	UL94 V-0	Board to Board Cable	0.079 in	2 mm	0.535 in	13.59 mm	Cuttable Header	1.5 mm	0.059 "	Phosphor Bronze	Gold	Push-Pull	3 µin	0.076 µm	144	Gold	Square	3 A	6.5 mm	0.256 in	0.51 µm	20 µin	Through Hole	Black	-55 °C	125 °C	Solder	0.079 in	2 mm	Unshrouded	Liquid Crystal Polymer (LCP)	Male Pin	All	0.22 in	5.59 mm
Samtec Inc. MTMM-136-06-G-D-220	UL94 V-0	Board to Board Cable	0.079 in	2 mm	0.397 in	10.08 mm	Cuttable Header	1.5 mm	0.059 "	Phosphor Bronze	Gold	Push-Pull	3 µin	0.076 µm	72	Gold	Square	3 A	3 mm		0.51 µm	20 µin	Through Hole	Black	-55 °C	125 °C	Solder	0.079 in	2 mm	Unshrouded	Liquid Crystal Polymer (LCP)	Male Pin	All	0.22 in	5.59 mm	2	0.118 in
Samtec Inc. MTMM-136-09-G-D-235
Samtec Inc. MTMM-136-12-G-Q-480	UL94 V-0	Board to Board Cable	0.079 in	2 mm	0.614 "	15.6 mm	Cuttable Header	1.5 mm	0.059 "	Phosphor Bronze	Gold	Push-Pull	3 µin	0.076 µm	144	Gold	Square	3 A	1.91 mm	0.075 in	0.51 µm	20 µin	Through Hole	Black	-55 °C	125 °C	Solder	0.079 in	2 mm	Unshrouded	Liquid Crystal Polymer (LCP)	Male Pin	All					0.48 in	12.19 mm
Samtec Inc. MTMM-136-04-G-D-140
Samtec Inc. MTMM-136-06-G-S-250
Samtec Inc. MTMM-136-09-G-S-180
Samtec Inc. MTMM-136-13-G-S-450	UL94 V-0	Board to Board Cable	0.079 in	2 mm	0.673 in	17.09 mm	Cuttable Header	1.5 mm	0.059 "	Phosphor Bronze	Gold	Push-Pull	3 µin	0.076 µm	36	Gold	Square	3 A	4.17 mm		0.51 µm	20 µin	Through Hole	Black	-55 °C	125 °C	Solder			Unshrouded	Liquid Crystal Polymer (LCP)	Male Pin	All	0.45 in	11.43 mm	1	0.164 in
Samtec Inc. MTMM-136-09-G-D-065	UL94 V-0	Board to Board Cable	0.079 in	2 mm	0.535 in	13.59 mm	Cuttable Header	1.5 mm	0.059 "	Phosphor Bronze	Gold	Push-Pull	3 µin	0.076 µm	72	Gold	Square	3 A	10.44 mm		0.51 µm	20 µin	Through Hole	Black	-55 °C	125 °C	Solder	0.079 in	2 mm	Unshrouded	Liquid Crystal Polymer (LCP)	Male Pin	All	0.065 in	1.65 mm	2	0.411 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 8.46

Description

General part information

MTMM-136 Series

Connector Header Through Hole 36 position 0.079" (2.00mm)

Documents

Technical documentation and resources

MTMM Series Datasheet

Datasheet
