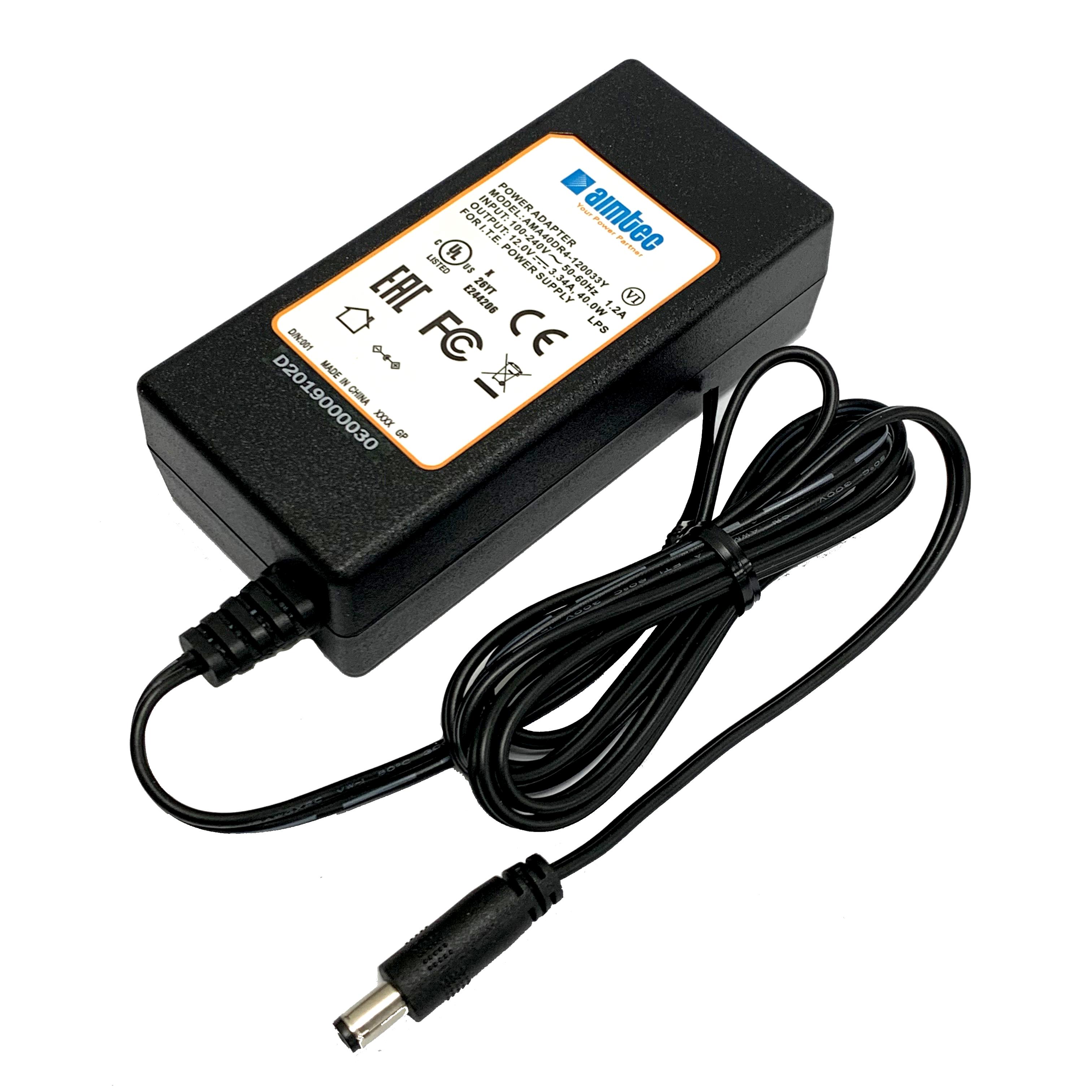

AMA40DR4-120033Y

Active

aimtec

AC/DC DESKTOP ADAPTER 12V 40W

Search across all available documentation for this part.

Active

aimtec

AC/DC DESKTOP ADAPTER 12V 40W

Technical Specifications

Parameters and characteristics for this part

Specification	AMA40DR4-120033Y

Applications	ITE (Commercial)
Approval Agency	UL, CE
Cord Length	60.2 in
Cord Length	1.5 m
Current - Output (Max) [Max]	3.34 A
Efficiency	Level VI
Form	Desktop (Class I)
Input Connector	IEC 320-C14
Input Type	Cord
No Load Power Consumption [Max]	75 mW
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	0 °C
Output Connector	Barrel Plug
Output Connector [diameter]	2.1 mm, 5.5 mm
Output Connector [x]	9.5 mm
Polarization	Positive Center
Power (Watts)	40 W
Region Utilized	International
Size / Dimension [x]	111 mm
Size / Dimension [x]	4.37 in
Size / Dimension [y]	52 mm
Size / Dimension [y]	2.05 in
Size / Dimension [z]	32 mm
Size / Dimension [z]	1.26 in
Standard Number	60950-1, 62368-1
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	12 V

Part	Voltage - Output	Standard Number	No Load Power Consumption [Max]	Polarization	Operating Temperature [Max]	Operating Temperature [Min]	Output Connector [diameter]	Output Connector [x]	Output Connector	Approval Agency	Power (Watts)	Form	Applications	Voltage - Input [Min]	Voltage - Input [Max]	Efficiency	Cord Length	Cord Length	Current - Output (Max) [Max]	Region Utilized	Input Connector	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Input Type
aimtec AMA40DR4-120033Y	12 V	60950-1 62368-1	75 mW	Positive Center	40 °C	0 °C	2.1 mm 5.5 mm	9.5 mm	Barrel Plug	CE UL	40 W	Desktop (Class I)	ITE (Commercial)	90 VAC	264 VAC	Level VI	60.2 in	1.5 m	3.34 A	International	IEC 320-C14	111 mm	32 mm	52 mm	4.37 in	1.26 in	2.05 in	Cord
aimtec AMA40DR5-120033Y	12 V	60950-1 62368-1	75 mW	Positive Center	40 °C	0 °C	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	CE UL	40 W	Desktop (Class I)	ITE (Commercial)	90 VAC	264 VAC	Level VI	60.2 in	1.5 m	3.34 A	International	IEC 320-C14	111 mm	32 mm	52 mm	4.37 in	1.26 in	2.05 in	Cord

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

12V 40 W AC/DC External Desktop (Class I) Adapter Cord (Sold Separately) Input
