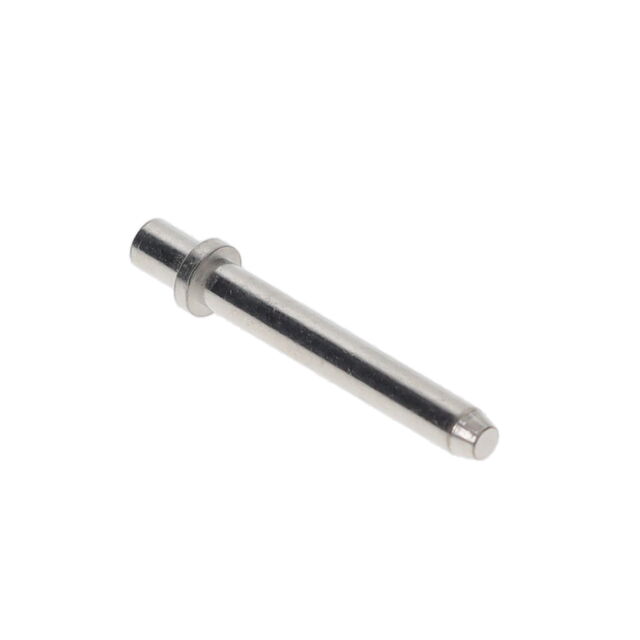

4357-0-00-80-00-00-03-0
ActiveMill-Max Manufacturing Corp.
CONN PC PIN CIRC
Deep-Dive with AI
Search across all available documentation for this part.
4357-0-00-80-00-00-03-0
ActiveMill-Max Manufacturing Corp.
CONN PC PIN CIRC
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 4357-0-00-80-00-00-03-0 |
|---|---|
| Contact Finish | Tin |
| Contact Finish Thickness | 200 Áin |
| Contact Finish Thickness | 5.08 Ám |
| Contact Material | Brass Alloy |
| Flange Diameter [diameter] | 2.39 mm |
| Flange Diameter [diameter] | 0.094 in |
| Insulation | Non-Insulated |
| Length - Above Flange [x] | 0.44 in |
| Length - Above Flange [x] | 11.18 mm |
| Length - Below Flange [x] | 2.13 mm |
| Length - Below Flange [x] | 0.084 in |
| Length - Overall | 0.549 in |
| Length - Overall | 13.94 mm |
| Mounting Hole Diameter | 1.63 mm |
| Mounting Hole Diameter [diameter] | 0.064 in |
| Mounting Type | Through Hole |
| Pin Size - Above Flange [diameter] | 1.52 mm |
| Pin Size - Above Flange [diameter] | 0.06 in |
| Pin Size - Below Flange [diameter] | 0.062 " |
| Pin Size - Below Flange [diameter] | 1.58 mm |
| Terminal Style | Single End |
| Terminal Type | PC Pin |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.93 | |
| 10 | $ 0.79 | |||
| 100 | $ 0.71 | |||
| 1000 | $ 0.51 | |||
| 5000 | $ 0.45 | |||
| 10000 | $ 0.43 | |||
Description
General part information
4357-0 Series
PC Pin Terminal Connector Through Hole Tin 0.060" (1.52mm) Dia
