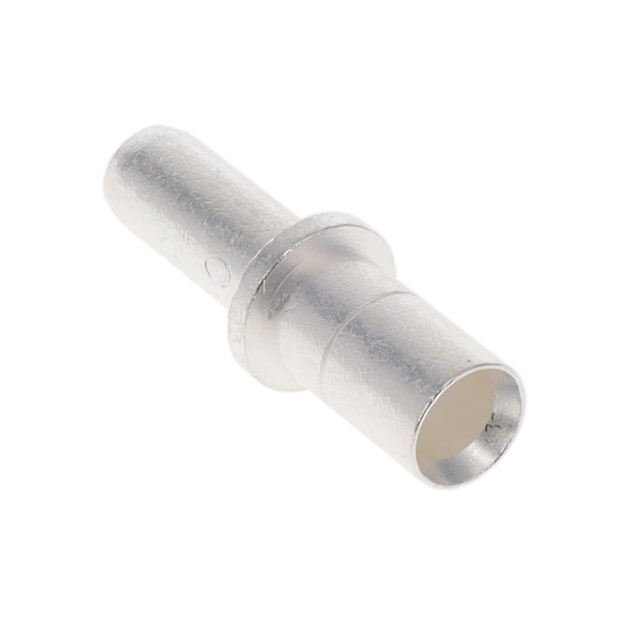

SRK-PC-080-25-601

Active

TE Connectivity AMP Connectors

PIN, SOLID, SIZE M8, 25MM2, AG

SRK-PC-080-25-601

Active

TE Connectivity AMP Connectors

PIN, SOLID, SIZE M8, 25MM2, AG

Description Specifications Series Pricing CAD Documents

Description

General part information

DEUTSCH DTSK Series

Pin Terminal, 4 AWG, 25 mm² Wire, Silver (Ag), Sealable, 8 mm [.315 in] Pin Diameter, Single Wire Seal (SWS), Terminates To Wire, DEUTSCH DTSK

Technical Specifications

Parameters and characteristics for this part

Specification	SRK-PC-080-25-601

Contact Finish	Silver
Contact Material	Copper
Contact Size	8
Contact Termination	Crimp
Contact Type	Pin
Termination Finish	Silver
Type	Machined, Power
Wire Gauge or Range - AWG	4 AWG
Wire Gauge or Range - AWG	4 AWG
Wire Gauge or Range - mm²	25 mm²

DEUTSCH DTSK Series

Part	Wire Gauge or Range - mm²	Contact Material	Type	Contact Type	Contact Termination	Wire Gauge or Range - AWG	Wire Gauge or Range - AWG	Contact Size	Contact Finish	Number of Positions	Position Types	Fastening Type	Shielding	Shell Material	Connector Type	Contact Size Options	Ingress Protection	Mounting Type	Orientation	Features	Housing Color	Contact Shape	Insert Material	Note	Operating Temperature (Max)	Operating Temperature (Min)	Termination Finish	Accessory Type	For Use With/Related Products	Material	Color
TE Connectivity AMP Connectors SRK-SC-080-35-601	35 mm²	Copper	Machined Power	Socket	Crimp	2 AWG	2 AWG	8	Silver
TE Connectivity AMP Connectors DTSK06-1-08SB			For Male Pins	Crimp						1	Power	Latch Lock	Unshielded	Glass Filled Nylon 4/6 Polyamide (PA46)	Plug Housing	8 Power	IP68 IP6K9K	Free Hanging (In-Line)	B	Cap (Cover)	Black	Circular	Glass Filled Nylon 6/6 PA66 Polyamide	Contacts Not Included	125 °C	-55 °C
TE Connectivity AMP Connectors SRK-PC-080-35-601	35 mm²	Copper	Machined Power	Pin	Crimp			8	Silver																		Silver
TE Connectivity AMP Connectors SRK-PC-080-32-601	32 mm²	Copper	Machined Power	Pin	Crimp	2 AWG	2 AWG	8	Silver																		Silver
TE Connectivity AMP Connectors WS-35-001																												Wire Seal	DTSK Connectors	Silicon	Green
TE Connectivity AMP Connectors SRK-SC-080-32-601	32 mm²	Copper	Machined Power	Socket	Crimp	2 AWG	2 AWG	8	Silver																		Silver
TE Connectivity AMP Connectors SRK-SC-080-25-601	25 mm²	Copper	Machined Power	Socket	Crimp	4 AWG	4 AWG	8	Silver																		Silver
TE Connectivity AMP Connectors DTSK06-1-08SC			For Male Pins	Crimp						1	Power	Latch Lock	Unshielded	Glass Filled Nylon 4/6 Polyamide (PA46)	Plug Housing	8 Power	IP68 IP6K9K	Free Hanging (In-Line)	C	Cap (Cover)	Brown	Circular	Glass Filled Nylon 6/6 PA66 Polyamide	Contacts Not Included	125 °C	-55 °C
TE Connectivity AMP Connectors DTSK04-1-08PC			For Female Sockets	Crimp						1	Power	Detent Lock	Unshielded	Glass Filled Nylon 4/6 Polyamide (PA46)	Receptacle Housing	8 Power	IP68 IP6K9K	Free Hanging (In-Line)	C	Cap (Cover)	Brown	Circular	Glass Filled Nylon 6/6 PA66 Polyamide	Contacts Not Included	125 °C	-55 °C
TE Connectivity AMP Connectors SRK-PC-080-25-601	25 mm²	Copper	Machined Power	Pin	Crimp	4 AWG	4 AWG	8	Silver																		Silver
