Specification	292207-6

Applications	General Purpose
Connector Type	Header
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	39.4 µin
Contact Length - Mating	0.094 in
Contact Length - Post	0.118 in
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating	0 A
Current Rating	Varies by Wire Gauge
Fastening Type	Detent Lock
Features	Board Guide
Insulation Color	Gray
Insulation Height	0.272 in
Insulation Material	Nylon, Glass Filled, Polyamide (PA)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	6
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-30 °C
Overall Contact Length	0.307 in
Pitch - Mating	0.059 in
Shrouding	Shrouded - 4 Wall
Style	Cable/Wire, Board
Termination	Kinked Pin, Solder
Voltage Rating	50 V

292207 Series

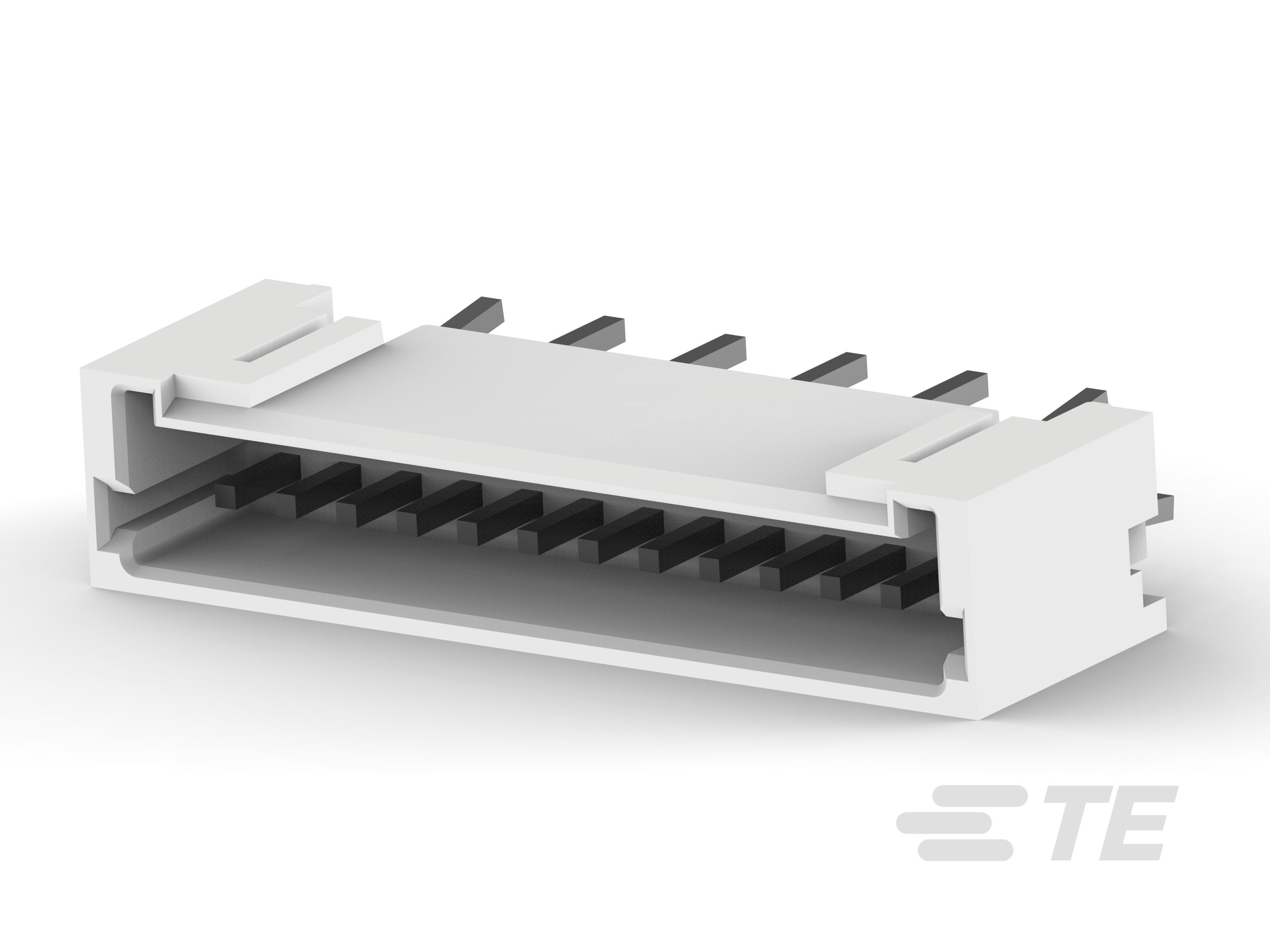

Headers & Wire Housings MINI CT SGL DIP H 19P BLUE

Part	Insulation Height	Contact Finish Thickness - Mating	Contact Shape	Number of Positions	Contact Material	Contact Length - Mating	Termination	Connector Type	Insulation Material	Fastening Type	Contact Finish - Mating	Pitch - Mating	Shrouding	Number of Rows	Overall Contact Length	Operating Temperature (Min)	Operating Temperature (Max)	Number of Positions Loaded	Voltage Rating	Contact Finish - Post	Features	Current Rating	Mounting Type	Style	Contact Length - Post	Insulation Color	Contact Type	Material Flammability Rating	Applications
TE Connectivity AMP Connectors 3-292207-3	0.272 in	39.4 µin	Square	13	Brass	0.094 in	Kinked Pin Solder	Header	Glass Filled Nylon Polyamide (PA)	Detent Lock	Tin	0.059 in	Shrouded - 4 Wall	1	0.307 in	-30 °C	105 °C	All	50 V	Tin	Board Guide	Varies by Wire Gauge	Through Hole	Board Cable/Wire	0.118 in	Black	Male Pin	UL94 V-0	General Purpose

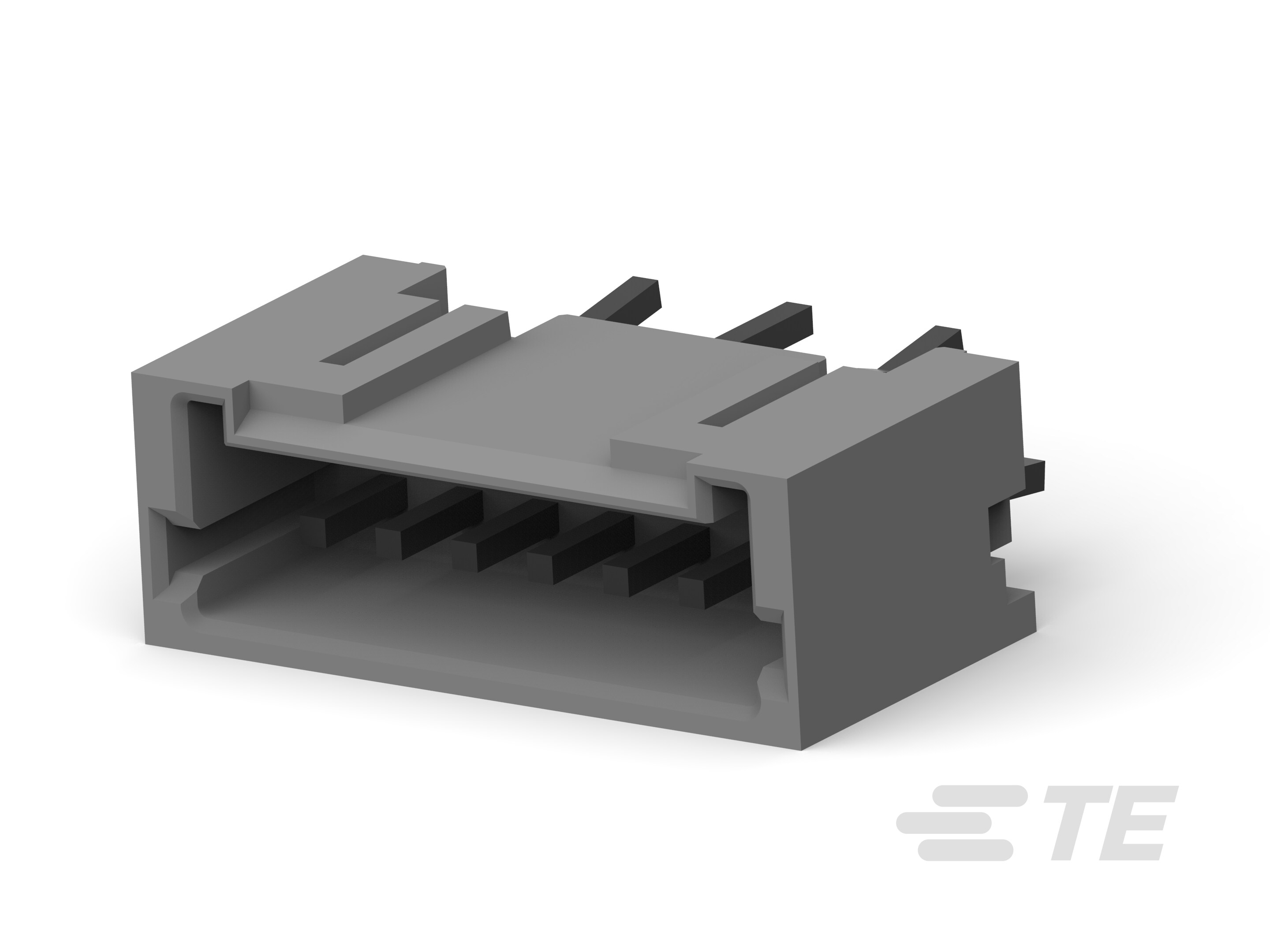

TE Connectivity AMP Connectors 292207-7	0.272 in	39.4 µin	Square	7	Brass	0.094 in	Kinked Pin Solder	Header	Glass Filled Nylon Polyamide (PA)	Detent Lock	Tin	0.059 in	Shrouded - 4 Wall	1	0.307 in	-30 °C	105 °C	All	50 V	Tin	Board Guide	Varies by Wire Gauge	Through Hole	Board Cable/Wire	0.118 in	Gray	Male Pin	UL94 V-0	General Purpose
TE Connectivity AMP Connectors 1-292207-5	0.272 in	39.4 µin	Square	15	Brass	0.094 in	Kinked Pin Solder	Header	Glass Filled Nylon Polyamide (PA)	Detent Lock	Tin	0.059 in	Shrouded - 4 Wall	1	0.307 in	-30 °C	105 °C	All	50 V	Tin	Board Guide	Varies by Wire Gauge	Through Hole	Board Cable/Wire	0.118 in	Gray	Male Pin	UL94 V-0	General Purpose
TE Connectivity AMP Connectors 6-292207-8	0.272 in	39.4 µin	Square	18	Brass	0.094 in	Kinked Pin Solder	Header	Glass Filled Nylon Polyamide (PA)	Detent Lock	Tin	0.059 in	Shrouded - 4 Wall	1	0.307 in	-30 °C	105 °C	All	50 V	Tin	Board Guide	Varies by Wire Gauge	Through Hole	Board Cable/Wire	0.118 in	Blue	Male Pin	UL94 V-0	General Purpose
TE Connectivity AMP Connectors 1-292207-6	0.272 in	39.4 µin	Square	16	Brass	0.094 in	Kinked Pin Solder	Header	Glass Filled Nylon Polyamide (PA)	Detent Lock	Tin	0.059 in	Shrouded - 4 Wall	1	0.307 in	-30 °C	105 °C	All	50 V	Tin	Board Guide	Varies by Wire Gauge	Through Hole	Board Cable/Wire	0.118 in	Gray	Male Pin	UL94 V-0	General Purpose
TE Connectivity AMP Connectors 1-292207-9	0.272 in	39.4 µin	Square	19	Brass	0.094 in	Kinked Pin Solder	Header	Glass Filled Nylon Polyamide (PA)	Detent Lock	Tin	0.059 in	Shrouded - 4 Wall	1	0.307 in	-30 °C	105 °C	All	50 V	Tin	Board Guide	Varies by Wire Gauge	Through Hole	Board Cable/Wire	0.118 in	Gray	Male Pin	UL94 V-0	General Purpose
TE Connectivity AMP Connectors 1-292207-2	0.272 in	39.4 µin	Square	12	Brass	0.094 in	Kinked Pin Solder	Header	Glass Filled Nylon Polyamide (PA)	Detent Lock	Tin	0.059 in	Shrouded - 4 Wall	1	0.307 in	-30 °C	105 °C	All	50 V	Tin	Board Guide	Varies by Wire Gauge	Through Hole	Board Cable/Wire	0.118 in	Gray	Male Pin	UL94 V-0	General Purpose
TE Connectivity AMP Connectors 2-292207-6	0.272 in	39.4 µin	Square	6	Brass	0.094 in	Kinked Pin Solder	Header	Glass Filled Nylon Polyamide (PA)	Detent Lock	Tin	0.059 in	Shrouded - 4 Wall	1	0.307 in	-30 °C	105 °C	All	50 V	Tin	Board Guide	Varies by Wire Gauge	Through Hole	Board Cable/Wire	0.118 in	Black	Male Pin	UL94 V-0	General Purpose

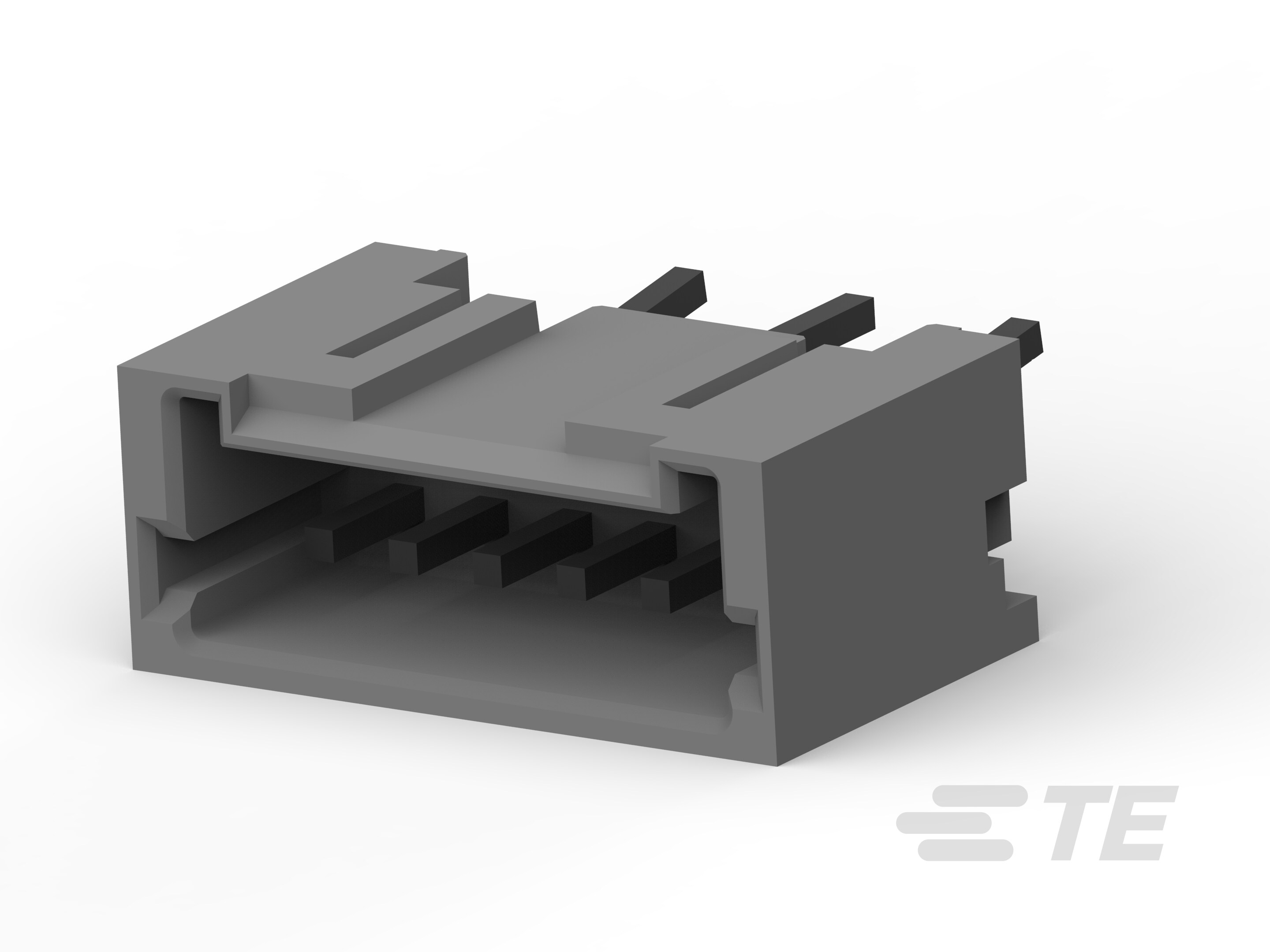

TE Connectivity AMP Connectors 292207-6	0.272 in	39.4 µin	Square	6	Brass	0.094 in	Kinked Pin Solder	Header	Glass Filled Nylon Polyamide (PA)	Detent Lock	Tin	0.059 in	Shrouded - 4 Wall	1	0.307 in	-30 °C	105 °C	All	50 V	Tin	Board Guide	Varies by Wire Gauge	Through Hole	Board Cable/Wire	0.118 in	Gray	Male Pin	UL94 V-0	General Purpose
TE Connectivity AMP Connectors 1-292207-3	0.272 in	39.4 µin	Square	13	Brass	0.094 in	Kinked Pin Solder	Header	Glass Filled Nylon Polyamide (PA)	Detent Lock	Tin	0.059 in	Shrouded - 4 Wall	1	0.307 in	-30 °C	105 °C	All	50 V	Tin	Board Guide	Varies by Wire Gauge	Through Hole	Board Cable/Wire	0.118 in	Gray	Male Pin	UL94 V-0	General Purpose
