5650945-5
ActiveTE Connectivity AMP Connectors

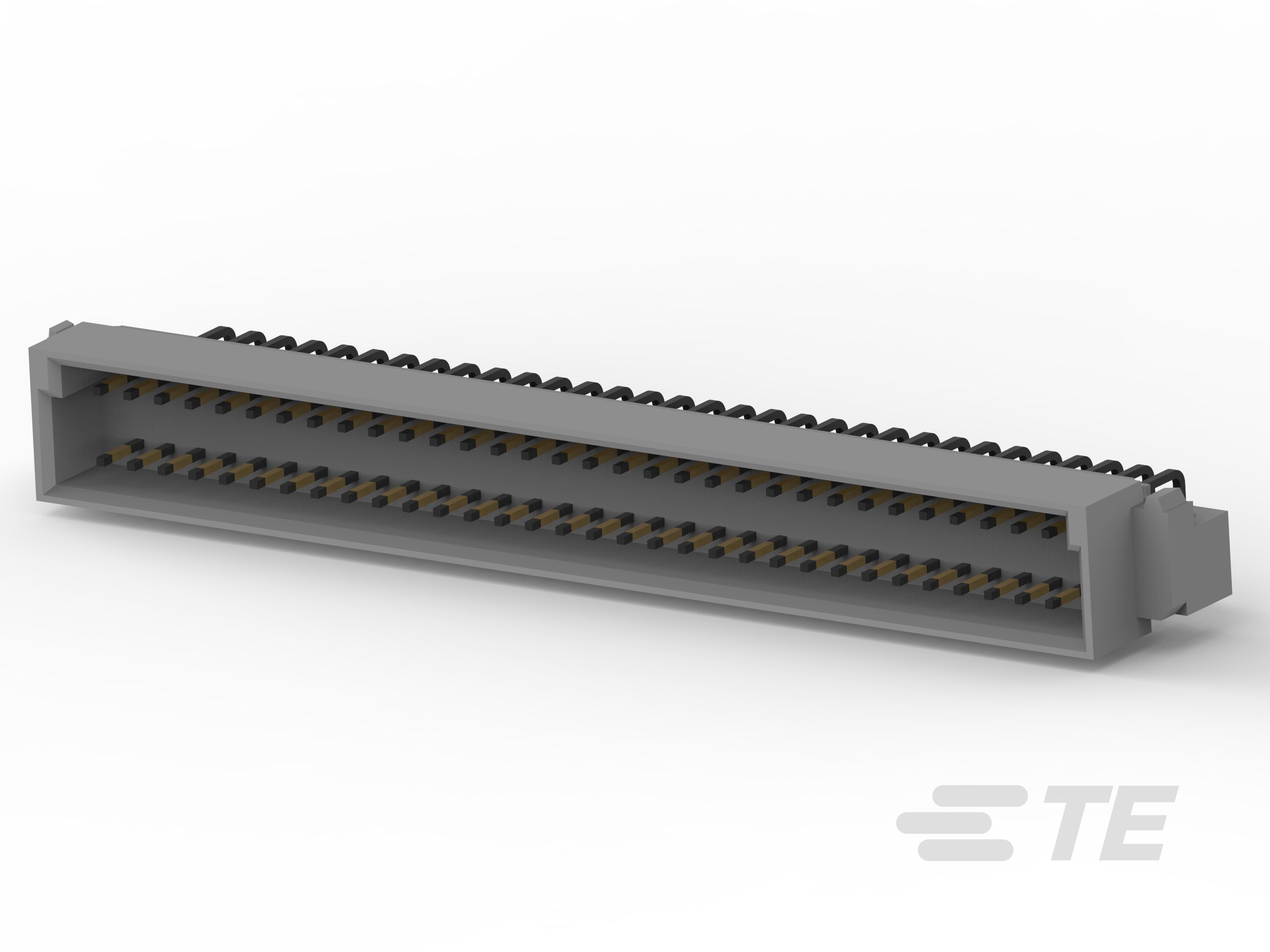

DIN 41612 CONNECTORS PLUG 64P R/A TYPE C
5650945-5
ActiveTE Connectivity AMP Connectors
DIN 41612 CONNECTORS PLUG 64P R/A TYPE C
Description
General part information
5650945 Series
Plug, Board-to-Board, 64 Position, 2.54 mm [.1 in] Centerline, Printed Circuit Board, 3 Row, Right Angle, 32 Column, Eurocard Connectors
Technical Specifications
Parameters and characteristics for this part
| Specification | 5650945-5 |
|---|---|
| Connector Type | Male Pins, Plug |
| Contact Finish | Gold |
| Level, Class | 2 |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 96 |
| Number of Positions Loaded | 64 |
| Number of Rows | 3 |
| Pitch | 0.1 in |
| Style | C |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
