BR-2330A/FAN

Active

Panasonic - BSG

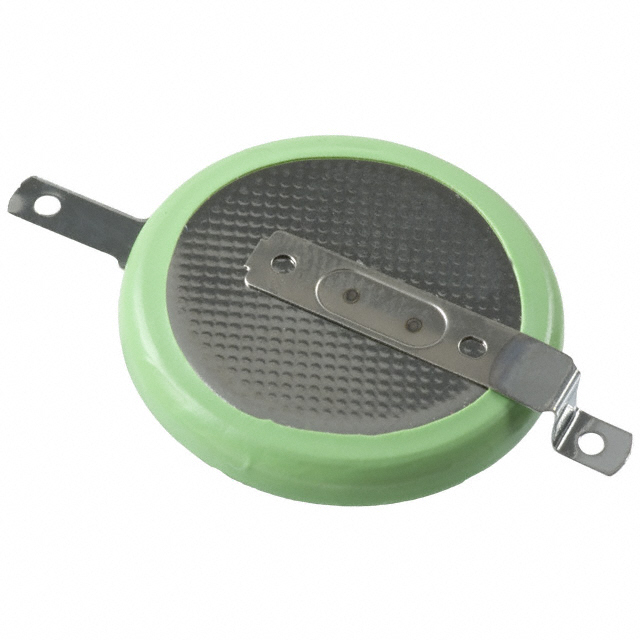

BATTERY LITHIUM 3V COIN 23MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

BR-2330A/FAN

Active

Panasonic - BSG

BATTERY LITHIUM 3V COIN 23MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.33
		20	$ 1.93
		40	$ 1.80
		100	$ 1.61
		400	$ 1.49
		800	$ 1.42
		1200	$ 1.34
		2800	$ 1.27

Description

General part information

BR-2330 Series

Coin, 23.0mm Lithium Poly-Carbon Monofluoride 3 V Battery Non-Rechargeable (Primary)

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	BR-2330A/FAN	BR-2330 Series

Battery Cell Size	Coin	Coin
Battery Cell Size [diameter]	23 mm	23 mm
Battery Chemistry	Lithium Poly-Carbon Monofluoride	Lithium Poly-Carbon Monofluoride
Capacity	255 mAh	255 mAh
Discharge Rate	30 µA	30 µA
Shipping Info	Due to restrictions, only ground shipment is allowed.	Due to restrictions, only ground shipment is allowed.
Size / Dimension [diameter]	23 mm	22.9 - 23 mm
Size / Dimension [diameter]	0.91 "	0.9 - 0.91 "
Size / Dimension [z]	3 mm	2.8 - 3 mm
Size / Dimension [z]	0.12 in	0.11 - 0.12 in
Termination Style	SMD (SMT) Tab	PC Pin (Horizontal Mount), SMD (SMT) Tab, PC Pin (Vertical Mount)
Voltage - Rated	3 VDC	3 VDC
Weight	3.2 g	3.2 g

BR-2330 Series

BATTERY LITHIUM 3V COIN 23MM

Part	Battery Cell Size [diameter]	Battery Cell Size	Discharge Rate	Battery Chemistry	Voltage - Rated	Termination Style	Shipping Info	Capacity	Size / Dimension [diameter]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [diameter]	Weight
Panasonic - BSG BR-2330A/HDN	23 mm	Coin	30 µA	Lithium Poly-Carbon Monofluoride	3 VDC	PC Pin (Horizontal Mount)	Due to restrictions, only ground shipment is allowed.	255 mAh	23 mm	3 mm	0.12 in	0.91 "	3.2 g
Panasonic - BSG BR-2330/HFN	23 mm	Coin	30 µA	Lithium Poly-Carbon Monofluoride	3 VDC	PC Pin (Horizontal Mount)	Due to restrictions, only ground shipment is allowed.	255 mAh	23 mm	3 mm	0.12 in	0.91 "	3.2 g
Panasonic - BSG BR-2330/GUFN	23 mm	Coin		Lithium Poly-Carbon Monofluoride	3 VDC		Due to restrictions, only ground shipment is allowed.	255 mAh	22.9 mm	2.8 mm	0.11 in	0.9 in	3.2 g
Panasonic - BSG BR-2330/F3N	23 mm	Coin	30 µA	Lithium Poly-Carbon Monofluoride	3 VDC	SMD (SMT) Tab	Due to restrictions, only ground shipment is allowed.	255 mAh	23 mm	3 mm	0.12 in	0.91 "	3.2 g
Panasonic - BSG BR-2330A/VAN	23 mm	Coin	30 µA	Lithium Poly-Carbon Monofluoride	3 VDC	PC Pin (Vertical Mount)	Due to restrictions, only ground shipment is allowed.	255 mAh	23 mm	3 mm	0.12 in	0.91 "	3.2 g
Panasonic - BSG BR-2330/GVFN	23 mm	Coin	30 µA	Lithium Poly-Carbon Monofluoride	3 VDC	PC Pin (Vertical Mount)	Due to restrictions, only ground shipment is allowed.	255 mAh	23 mm	3 mm	0.12 in	0.91 "	3.2 g
Panasonic - BSG BR-2330/VCN	23 mm	Coin	30 µA	Lithium Poly-Carbon Monofluoride	3 VDC	PC Pin (Vertical Mount)	Due to restrictions, only ground shipment is allowed.	255 mAh	23 mm	3 mm	0.12 in	0.91 "	3.2 g
Panasonic - BSG BR-2330A/FAN	23 mm	Coin	30 µA	Lithium Poly-Carbon Monofluoride	3 VDC	SMD (SMT) Tab	Due to restrictions, only ground shipment is allowed.	255 mAh	23 mm	3 mm	0.12 in	0.91 "	3.2 g
Panasonic - BSG BR-2330/HEN	23 mm	Coin	30 µA	Lithium Poly-Carbon Monofluoride	3 VDC	PC Pin (Horizontal Mount)	Due to restrictions, only ground shipment is allowed.	255 mAh	23 mm	3 mm	0.12 in	0.91 "	3.2 g
