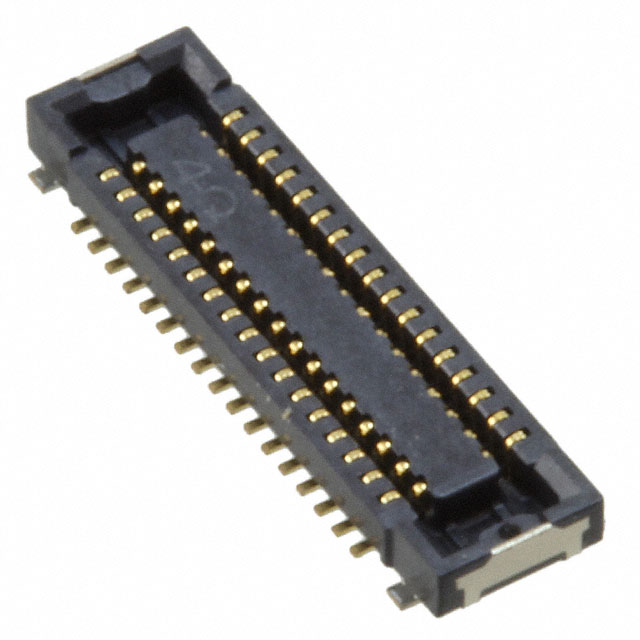

AXE734127A

Active

Panasonic Electric Works

CONN SOCKET 34POS SMD GOLD

Search across all available documentation for this part.

Active

Panasonic Electric Works

CONN SOCKET 34POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	AXE734127A

Connector Type	Socket, Outer Shroud Contacts
Contact Finish	Gold
Features	Solder Retention
Height Above Board [z]	0.03 in
Height Above Board [z]	0.75 mm
Mated Stacking Heights	0.8 mm
Mounting Type	Surface Mount
Number of Positions	34
Number of Rows	2
Pitch [x]	0.35 mm
Pitch [x]	0.014 in

Part	Mated Stacking Heights	Height Above Board [z]	Height Above Board [z]	Number of Positions	Features	Connector Type	Contact Finish	Number of Rows	Pitch [x]	Pitch [x]	Mounting Type
Panasonic Electric Works AXE734127A	0.8 mm	0.03 in	0.75 mm	34	Solder Retention	Outer Shroud Contacts Socket	Gold	2	0.35 mm	0.014 in	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

34 Position Connector Socket, Outer Shroud Contacts Surface Mount Gold
