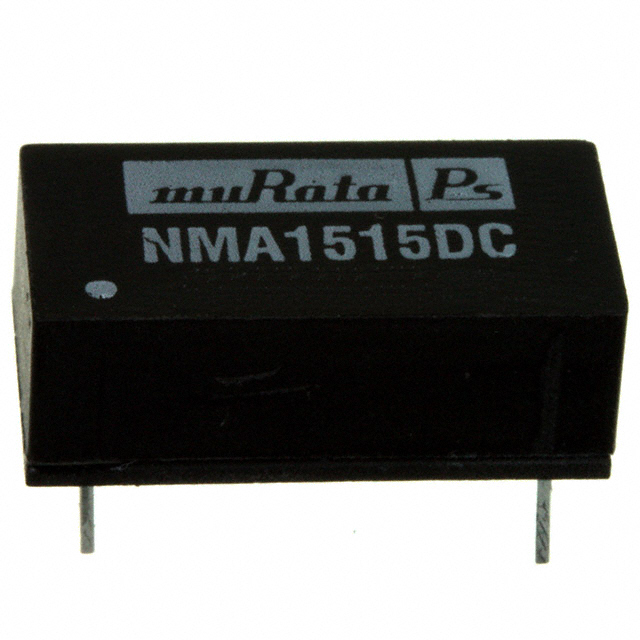

NMA1515DC

Active

Murata Power Solutions Inc.

DC DC CONVERTER +/-15V 1W

Search across all available documentation for this part.

Active

Murata Power Solutions Inc.

DC DC CONVERTER +/-15V 1W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Isolated Module DC DC Converter 2 Output 15V -15V 33mA, 33mA 13.5V - 16.5V Input

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	NMA1515DC	NMA15 Series

Applications	ITE (Commercial)	ITE (Commercial)
Current - Output (Max)	33 mA	33 mA
Current - Output (Max)	-	42 mA
Current - Output (Max)	-	42 mA
Efficiency	80 %	78 - 80 %
Mounting Type	Through Hole	Through Hole
Number of Outputs	2	2
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	14-DIP Module, 6 Leads	7-SIP Module, 5 Leads, 14-DIP Module, 6 Leads
Size / Dimension	-	9.9 mm
Size / Dimension	-	6.1 mm
Size / Dimension	-	19.6 mm
Size / Dimension [x]	0.77 in, 19.6 mm	0.77 - 19.6 in
Size / Dimension [y]	0.39 ", 9.9 mm	0.24 - 9.9 "
Size / Dimension [z]	0.27 ", 6.9 mm	0.27 - 6.9 in
Type	Isolated Module	Isolated Module
Voltage - Input (Max) [Max]	16.5 V	16.5 V
Voltage - Input (Min) [Min]	13.5 V	13.5 V
Voltage - Isolation	1000 V	1000 V
Voltage - Output 1	15 V	12 - 15 V
Voltage - Output 2	-15 V	-15 - -12 V

DC DC CONVERTER +/-12V 1W

Part	Voltage - Isolation	Package / Case	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Operating Temperature [Max]	Operating Temperature [Min]	Number of Outputs	Current - Output (Max) [Max]	Current - Output (Max) [Max]	Type	Efficiency	Voltage - Input (Min) [Min]	Mounting Type	Voltage - Output 1	Applications	Voltage - Input (Max) [Max]	Voltage - Output 2	Current - Output (Max)
Murata Power Solutions Inc. NMA1512SC	1000 V	7-SIP Module, 5 Leads	0.39 in	0.77 in	9.9 mm	6.1 mm	19.6 mm	0.24 "	85 °C	-40 °C	2	42 mA	42 mA	Isolated Module	78 %	13.5 V	Through Hole	12 V	ITE (Commercial)	16.5 V	-12 V
Murata Power Solutions Inc. NMA1515DC	1000 V	14-DIP Module, 6 Leads	0.27 ", 6.9 mm	0.77 in, 19.6 mm				0.39 ", 9.9 mm	85 °C	-40 °C	2			Isolated Module	80 %	13.5 V	Through Hole	15 V	ITE (Commercial)	16.5 V	-15 V	33 mA
