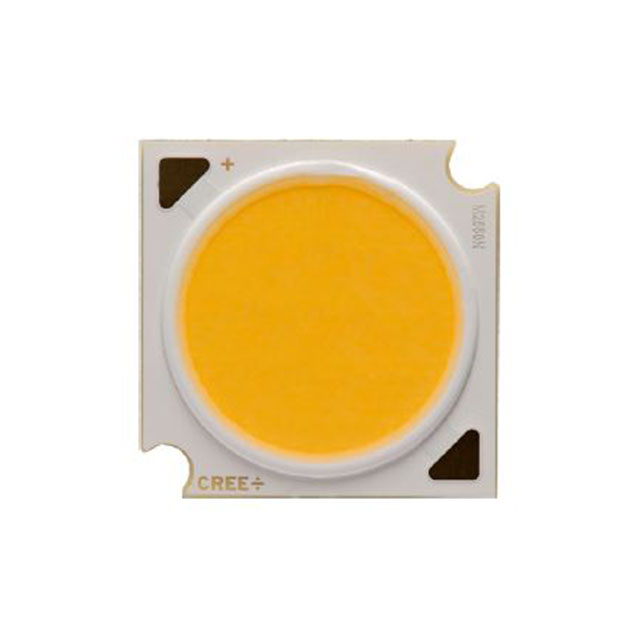

CMA2550-0000-00PN0U0A40H

Active

CreeLED, Inc.

LED COB XLAMP NEUT WHT SQU 4000K

CMA2550-0000-00PN0U0A40H

Active

CreeLED, Inc.

LED COB XLAMP NEUT WHT SQU 4000K

Description Specifications Series Pricing CAD Documents

Description

General part information

CMA2550 Series

LED Lighting COBs Engines Modules Chip On Board (COB) XLamp® CMA2550 White, Neutral Square

Technical Specifications

Parameters and characteristics for this part

Specification	CMA2550-0000-00PN0U0A40H

CCT (K)	4000 K
CCT Description	2-Step MacAdam Ellipse
Color	White, Neutral
Configuration	Square
CRI (Color Rendering Index)	90
Current - Max	3.3 A
Current - Test	1.4 A
Height	1.7 mm
Lens Type	Flat
Light Emitting Surface (LES) Diameter	19 mm
Size / Dimension Length	23.85 mm
Size / Dimension Width	23.85 mm
Temperature - Test	85 °C
Type	Chip On Board (COB)
Viewing Angle	115 °
Voltage - Forward (Vf) (Typ)	34 V

CMA2550 Series

Part	CCT (K)	CCT Description	Current - Test	Height	Voltage - Forward (Vf) (Typ)	CRI (Color Rendering Index)	Lens Type	Viewing Angle	Luminous Flux (Typical)	Color	Size / Dimension Width	Size / Dimension Length	Type	Configuration	Temperature - Test	Light Emitting Surface (LES) Diameter	Lumens/Watt	Current - Max
CreeLED, Inc. CMA2550-0000-000N0U0A57G	5700 K	3-Step MacAdam Ellipse	1.4 A	1.7 mm	34 V	90	Flat	115 °	6407 lm	Cool White	23.85 mm	23.85 mm	Chip On Board (COB)	Square	85 °C	19 mm	135 lm/W	3.3 A
CreeLED, Inc. CMA2550-0000-000N0H0A22G	2200 K	3-Step MacAdam Ellipse	1.4 A	1.7 mm	34 V	80	Flat	115 °	5792 lm	Warm White	23.85 mm	23.85 mm	Chip On Board (COB)	Square	85 °C	19 mm	122 lm/W	2.16 A
CreeLED, Inc. CMA2550-0000-000N0U0A30Q	3000 K	3-Step MacAdam Ellipse	1.4 A	1.7 mm	34 V	90	Flat	115 °	5792 lm	Warm White	23.85 mm	23.85 mm	Chip On Board (COB)	Square	85 °C	19 mm	122 lm/W	3.3 A
CreeLED, Inc. CMA2550-0000-000N0H0A27G	2700 K	3-Step MacAdam Ellipse	1.4 A	1.7 mm	34 V	80	Flat	115 °	6573 lm	Warm White	23.85 mm	23.85 mm	Chip On Board (COB)	Square	85 °C	19 mm	138 lm/W	3.3 A
CreeLED, Inc. CMA2550-0000-00PN0U0A30H	3000 K	2-Step MacAdam Ellipse	1.4 A	1.7 mm	34 V	90	Flat	115 °		Warm White	23.85 mm	23.85 mm	Chip On Board (COB)	Square	85 °C	19 mm		3.3 A
CreeLED, Inc. CMA2550-0000-000N0H0A22G	2200 K	3-Step MacAdam Ellipse	1.4 A	1.7 mm	34 V	80	Flat	115 °	5792 lm	Warm White	23.85 mm	23.85 mm	Chip On Board (COB)	Square	85 °C	19 mm	122 lm/W	2.16 A
CreeLED, Inc. CMA2550-0000-00PN0U0A50G	5000 K	3-Step MacAdam Ellipse	1.4 A	1.7 mm	34 V	90	Flat	115 °		Cool White	23.85 mm	23.85 mm	Chip On Board (COB)	Square	85 °C	19 mm		3.3 A
CreeLED, Inc. CMA2550-0000-00PN0U0A27G	2700 K	3-Step MacAdam Ellipse	1.4 A	1.7 mm	34 V	90	Flat	115 °		Warm White	23.85 mm	23.85 mm	Chip On Board (COB)	Square	85 °C	19 mm		3.3 A
CreeLED, Inc. CMA2550-0000-00PN0U0A40H	4000 K	2-Step MacAdam Ellipse	1.4 A	1.7 mm	34 V	90	Flat	115 °		Neutral White	23.85 mm	23.85 mm	Chip On Board (COB)	Square	85 °C	19 mm		3.3 A
CreeLED, Inc. CMA2550-0000-00PN0U0A31Q	3100 K	3-Step MacAdam Ellipse	1.4 A	1.7 mm	34 V	90	Flat	115 °		Warm White	23.85 mm	23.85 mm	Chip On Board (COB)	Square	85 °C	19 mm		3.3 A
