SF1115-6087

Active

Amphenol SV Microwave

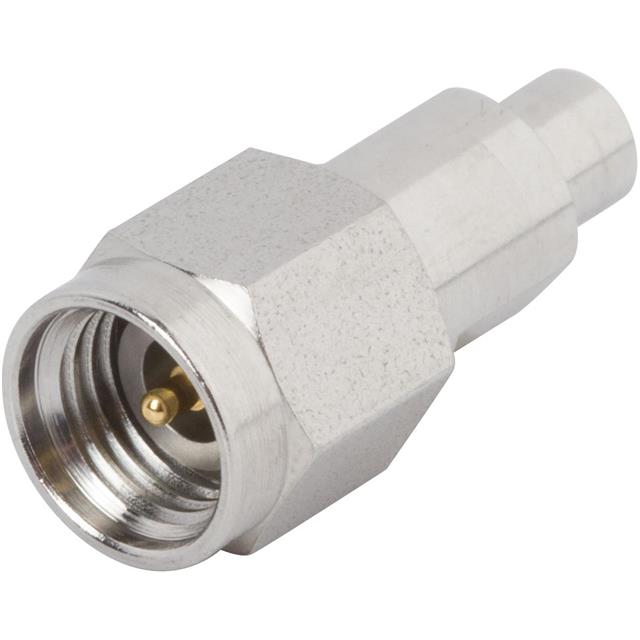

2.92MM MALE TO SMPM MALE ADAPTER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SF1115-6087

Active

Amphenol SV Microwave

2.92MM MALE TO SMPM MALE ADAPTER

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SF1115-6087

Adapter Series	SMPM
Adapter Series	2.92 mm
Adapter Type	Plug to Plug
Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Center Gender	Male to Male
Conversion Type	Between Series
Convert From (Adapter End)	SMPM Plug, Male Pin
Convert To (Adapter End)	2.92mm (OS-2.9) Plug, Male Pin
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Threaded, Snap-On
Features	Smooth Bore
Frequency - Max [Max]	40 GHz
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Style	Straight

SF1115 Series

Part	Adapter Series	Adapter Series	Center Contact Plating	Style	Body Material	Adapter Type	Mating Cycles	Convert To (Adapter End)	Center Contact Material	Convert From (Adapter End)	Frequency - Max [Max]	Conversion Type	Mounting Type	Dielectric Material	Impedance	Features	Center Gender	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Body Finish	Convert From (Adapter End)	Convert To (Adapter End)
Amphenol SV Microwave SF1115-6009	SMA	2.92 mm	Gold	Straight	Stainless Steel	Plug to Jack	500	2.92mm (OS-2.9) Plug Male Pin	Beryllium Copper	Female Socket SMA Jack	26.5 GHz	Between Series	Free Hanging (In-Line)	Polytetrafluoroethylene (PTFE)	50 Ohms
Amphenol SV Microwave SF1115-6087	SMPM	2.92 mm	Gold	Straight	Stainless Steel	Plug to Plug	500	2.92mm (OS-2.9) Plug Male Pin	Beryllium Copper	SMPM Plug Male Pin	40 GHz	Between Series	Free Hanging (In-Line)	Polytetrafluoroethylene (PTFE)	50 Ohms	Smooth Bore	Male to Male	Snap-On Threaded	-65 ░C	165 °C
Amphenol SV Microwave SF1115-6091	SMPS to 2.92mm		Gold	Straight	Beryllium Copper Stainless Steel	Plug to Jack	500	2.92mm (OS-2.9) Plug Male Pin	Beryllium Copper	Female Socket SMPS Jack	40 GHz	Between Series	Free Hanging (In-Line)	Polytetrafluoroethylene (PTFE)	50 Ohms			Snap-On Threaded	-65 ░C	165 °C	Gold; Passivated
Amphenol SV Microwave SF1115-6089	SMPS to 2.92mm		Gold	Straight	Stainless Steel	Plug to Plug	500	2.92mm (OS-2.9) Plug Male Pin	Beryllium Copper	SMPS Plug Male Pin	40 GHz	Between Series	Free Hanging (In-Line)	Polytetrafluoroethylene (PTFE)	50 Ohms	Full Detent	Male to Male	Snap-On Threaded	-65 ░C	165 °C
Amphenol SV Microwave SF1115-6005	SMA	2.92 mm	Gold	Straight	Stainless Steel	Jack to Jack	500	Female Socket SMA Jack	Beryllium Copper	Jack Female Socket OS-2.9	26.5 GHz	Between Series	Free Hanging (In-Line)	Polytetrafluoroethylene (PTFE)	50 Ohms		Female to Female					2.92 mm
Amphenol SV Microwave SF1115-6090	SMPS to 2.92mm		Gold	Straight	Stainless Steel	Plug to Plug	500	2.92mm (OS-2.9) Plug Male Pin	Beryllium Copper	SMPS Plug Male Pin	40 GHz	Between Series	Free Hanging (In-Line)	Polytetrafluoroethylene (PTFE)	50 Ohms	Smooth Bore	Male to Male	Snap-On Threaded	-65 ░C	165 °C
Amphenol SV Microwave SF1115-6082	SMP to 2.92mm		Gold	Straight	Stainless Steel	Plug to Jack	500	2.92mm (OS-2.9) Plug Male Pin	Beryllium Copper	SMP Jack Female Socket	40 GHz	Between Series	Free Hanging (In-Line)	Polytetrafluoroethylene (PTFE)	50 Ohms			Snap-On Threaded	-65 ░C	165 °C
Amphenol SV Microwave SF1115-6084	SMPM	2.92 mm	Gold	Straight	Stainless Steel	Plug to Jack	500	OS-2.9 Jack Female Socket	Beryllium Copper	SMPM Plug Male Pin	40 GHz	Between Series	Free Hanging (In-Line)	Polytetrafluoroethylene (PTFE)	50 Ohms	Full Detent		Snap-On Threaded	-65 ░C	165 °C			2.92 mm
Amphenol SV Microwave SF1115-6081	SMP to 2.92mm		Gold	Straight	Stainless Steel	Plug to Plug	500	2.92mm (OS-2.9) Plug Male Pin	Beryllium Copper	SMP Plug Male Pin	40 GHz	Between Series	Free Hanging (In-Line)	Polytetrafluoroethylene (PTFE)	50 Ohms	Full Detent	Male to Male	Snap-On Threaded	-65 ░C	165 °C
Amphenol SV Microwave SF1115-6007	SMA	2.92 mm	Gold	Straight	Stainless Steel	Plug to Jack	500	OS-2.9 Jack Female Socket	Beryllium Copper	SMA Plug Male Pin	26.5 GHz	Between Series	Free Hanging (In-Line)	Polytetrafluoroethylene (PTFE)	50 Ohms								2.92 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 159.64
		10	$ 147.93
		25	$ 142.61
		50	$ 141.54

Description

General part information

SF1115 Series

Adapter Coaxial Connector SMPM Plug, Male Pin To 2.92mm (OS-2.9) Plug, Male Pin 50 Ohms
