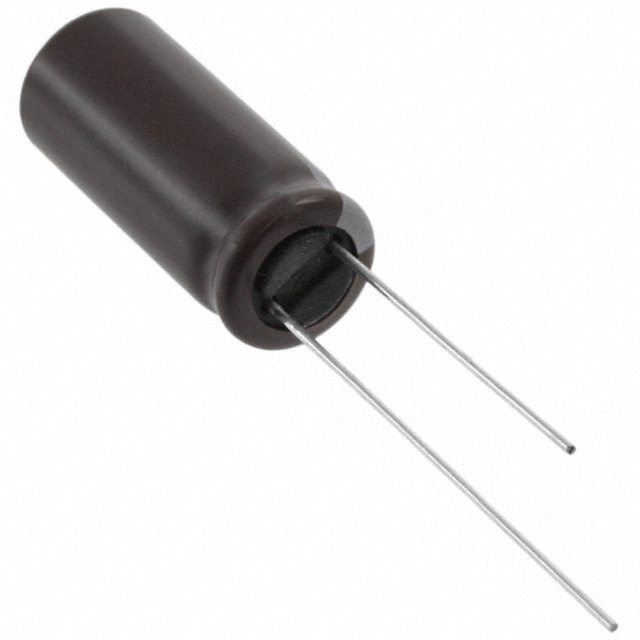

EKZE350ELL561MJ25S

Active

Chemi-Con

CAP ALUM 560UF 20% 35V RADIAL TH

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

EKZE350ELL561MJ25S

Active

Chemi-Con

CAP ALUM 560UF 20% 35V RADIAL TH

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.78
		10	$ 0.55
		50	$ 0.46
		100	$ 0.38
		500	$ 0.31
		1000	$ 0.26
		3000	$ 0.25
		5000	$ 0.23

Description

General part information

EKZE350E Series

560 µF 35 V Aluminum Electrolytic Capacitors Radial, Can 4000 Hrs @ 105°C

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	EKZE350ELL561MJ25S	EKZE350E Series

Applications	General Purpose	General Purpose
Capacitance	560 µF	1.2 - 1800 mF
Height - Seated (Max)	-	17.5 - 31.5 mm
Height - Seated (Max)	-	0.689 - 1.24 in
Height - Seated (Max) [Max] [z]	1.043 in	0.315 - 16.51 mm
Height - Seated (Max) [Max] [z]	26.5 mm	8 - 36.5 mm
Impedance	22 mOhms	15 - 470 mOhms
Lead Spacing	5 mm	2 - 7.5 mm
Lead Spacing	0.197 in	0.079 - 0.295 in
Lifetime @ Temp.	4000 Hrs	2000 - 5000 Hrs
Mounting Type	Through Hole	Through Hole
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	Radial, Can	Radial, Can
Polarization	Polar	Polar
Ripple Current @ High Frequency	2.15 A	1.43 - 995 A
Ripple Current @ Low Frequency	-	1.416 - 910 A
Size / Dimension [diameter]	10 mm	5 - 16 mm
Size / Dimension [diameter]	0.394 in	0.197 - 0.63 in
Tolerance	20 %	20 %
Voltage - Rated	35 V	35 V

EKZE350E Series

CAP ALUM 1200UF 20% 35V RADIAL

Part	Applications	Ripple Current @ High Frequency	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Voltage - Rated	Size / Dimension [diameter]	Size / Dimension [diameter]	Capacitance	Lead Spacing	Lead Spacing	Lifetime @ Temp.	Ripple Current @ Low Frequency	Mounting Type	Polarization	Tolerance	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Impedance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
Chemi-Con EKZE350EC3122MK30S	General Purpose	3.29 A	31.5 mm	1.24 in	35 V	0.492 in	12.5 mm	1.2 mF	5 mm	0.197 in	5000 Hrs	1.974 A	Through Hole	Polar	20 %	-40 °C	105 ░C	Radial, Can	16 mOhms
Chemi-Con EKZE350ELL471MJ20S	General Purpose	1.82 A	21.5 mm	0.846 in	35 V	0.394 in	10 mm	470 µF	5 mm	0.197 in	4000 Hrs	910 mA	Through Hole	Polar	20 %	-40 °C	105 ░C	Radial, Can	23 mOhms
Chemi-Con EKZE350ETD122MK30S	General Purpose	3.29 A	31.5 mm	1.24 in	35 V	0.492 in	12.5 mm	1.2 mF	5 mm	0.197 in	5000 Hrs	1.974 A	Through Hole	Polar	20 %	-40 °C	105 ░C	Radial, Can	16 mOhms
Chemi-Con EKZE350ELL221MH15D	General Purpose	995 mA			35 V	0.315 "	8 mm	220 µF	3.5 mm	0.138 in	3000 Hrs	497.5 mA	Through Hole	Polar	20 %	-40 °C	105 ░C	Radial, Can	56 mOhms	16.5 mm	16.51 mm
Chemi-Con EKZE350ELL561MJ25S	General Purpose	2.15 A			35 V	0.394 in	10 mm	560 µF	5 mm	0.197 in	4000 Hrs		Through Hole	Polar	20 %	-40 °C	105 ░C	Radial, Can	22 mOhms	26.5 mm	1.043 in
Chemi-Con EKZE350EC5182ML25S	General Purpose	3.46 A			35 V	0.63 in	16 mm	1800 µF	7.5 mm	0.295 in	5000 Hrs	2.076 A	Through Hole	Polar	20 %	-40 °C	105 ░C	Radial, Can	16 mOhms	26.5 mm	1.043 in
Chemi-Con EKZE350ELL102MK25S	General Purpose	2.77 A			35 V	0.492 in	12.5 mm	1000 µF	5 mm	0.197 in	5000 Hrs	1.662 A	Through Hole	Polar	20 %	-40 °C	105 ░C	Radial, Can	18 mOhms	26.5 mm	1.043 in
Chemi-Con EKZE350ETD221MH15D	General Purpose	995 mA			35 V	0.315 "	8 mm	220 µF	3.5 mm	0.138 in	3000 Hrs	497.5 mA	Through Hole	Polar	20 %	-40 °C	105 ░C	Radial, Can	56 mOhms	16.5 mm	16.51 mm
Chemi-Con EKZE350EC3151MHB5D	General Purpose				35 V	0.315 "	8 mm	150 µF	3.5 mm	0.138 in	3000 Hrs	304 mA	Through Hole	Polar	20 %	-40 °C	105 ░C	Radial, Can	72 mOhms	13 mm	0.512 "
Chemi-Con EKZE350ETD561MJ25S	General Purpose	2.15 A			35 V	0.394 in	10 mm	560 µF	5 mm	0.197 in	4000 Hrs		Through Hole	Polar	20 %	-40 °C	105 ░C	Radial, Can	22 mOhms	26.5 mm	1.043 in
