9330 0605000

Active

Belden Inc.

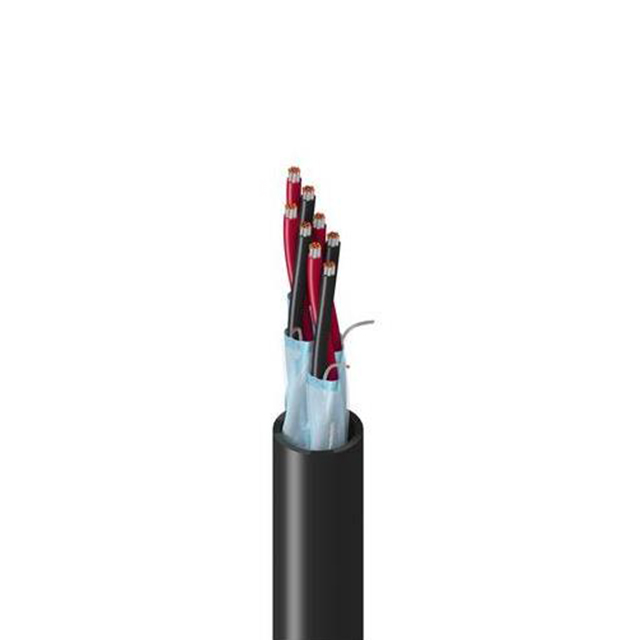

MULTI-PAIR 8COND 22AWG

Search across all available documentation for this part.

Active

Belden Inc.

MULTI-PAIR 8COND 22AWG

Technical Specifications

Parameters and characteristics for this part

Specification	9330 0605000

Cable Type	Multi-Pair
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	7
Conductor Strand [custom]	30 AWG
Features	Rip Cord, Drain Wire
Jacket (Insulation) Diameter [diameter]	9.45 mm
Jacket (Insulation) Diameter [diameter]	0.372 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	1.067 mm
Jacket (Insulation) Thickness	0.042 in
Jacket Color	Chrome
Number of Conductors	8
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-30 ░C
Ratings	UL Style 2464
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Usage	Instrumentation
Wire Gauge	22 AWG

Part	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Features	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket Color	Shield Type	Shield Material	Usage	Operating Temperature [Min]	Operating Temperature [Max]	Conductor Material	Jacket (Insulation) Material	Wire Gauge	Conductor Insulation	Shield Coverage	Cable Type	Number of Conductors	Conductor Strand [custom]	Conductor Strand [custom]	Ratings	Length [x]	Length [x]
Belden Inc. 9330 0605000	9.45 mm	0.372 in	Drain Wire Rip Cord	1.067 mm	0.042 in	Chrome	Foil	Aluminum	Instrumentation	-30 ░C	105 ░C	Copper Tinned	Poly-Vinyl Chloride (PVC)	22 AWG	Poly-Vinyl Chloride (PVC)	100 %	Multi-Pair	8	7	30 AWG	UL Style 2464
Belden Inc. 9330 060500	9.45 mm	0.372 in	Drain Wire Rip Cord	1.067 mm	0.042 in	Chrome	Foil	Aluminum	Instrumentation	-30 ░C	105 ░C	Copper Tinned	Poly-Vinyl Chloride (PVC)	22 AWG	Poly-Vinyl Chloride (PVC)	100 %	Multi-Pair	8	7	30 AWG	UL Style 2464	500 '	152.4 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	5000	$ 4.41

General part information

8 (4 Pair) Conductor Multi-Pair Cable Chrome 22 AWG Foil 5000' (1524.0m)
