LXR9-SW57

Active

Lumileds

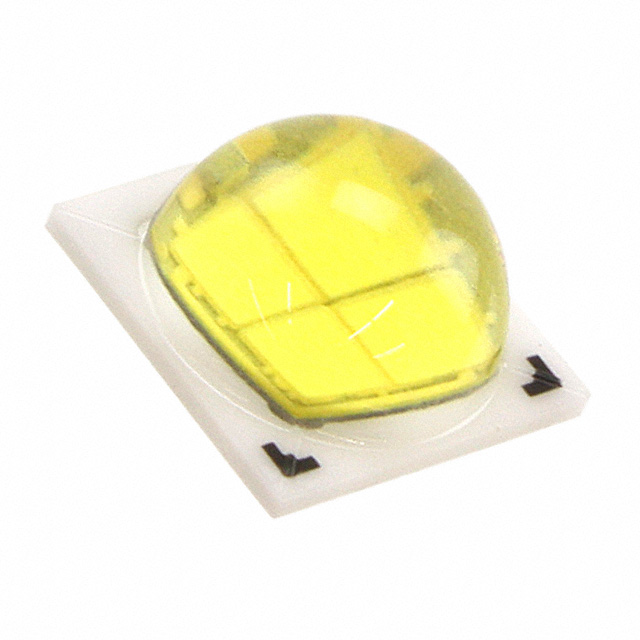

LED LUXEON COOL WHITE 5700K 2SMD

Search across all available documentation for this part.

Active

Lumileds

LED LUXEON COOL WHITE 5700K 2SMD

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	LXR9-SW57	LXR9 Series

CCT (K)	5700 K	2700 - 5700 K
Color	Cool, White	Cool, White, Warm
CRI (Color Rendering Index)	90	90
Current - Max	-	4.8 A
Current - Test	-	2.8 A
Flux @ 85°C, Current - Test	1110 lm	660 - 1110 lm
Height - Seated (Max) [Max]	3.87 mm	3.87 mm
Height - Seated (Max) [Max]	0.152 in	0.152 in
Lumens/Watt @ Current - Test	132 lm/W	84 - 132 lm/W
Mounting Type	Surface Mount	Surface Mount
Size / Dimension [x]	0.276 "	0.276 "
Size / Dimension [x]	7 mm	7 mm
Size / Dimension [y]	7 mm	7 mm
Size / Dimension [y]	0.276 in	0.276 in
Thermal Resistance of Package [custom]	1.25 °C/W	1.25 °C/W
Viewing Angle	120 °	120 °
Voltage - Forward (Vf) (Typ)	12 V	2.8 - 12 V

LED LUXEON COOL WHITE 5700K 2SMD

Part	Lumens/Watt @ Current - Test	Viewing Angle	Color	Voltage - Forward (Vf) (Typ)	CCT (K)	Mounting Type	Flux @ 85°C, Current - Test	Thermal Resistance of Package [custom]	CRI (Color Rendering Index)	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Current - Max [Max]	Current - Test
Lumileds LXR9-SW57	132 lm/W	120 °	Cool, White	12 V	5700 K	Surface Mount	1110 lm	1.25 °C/W	90	3.87 mm	0.152 in	7 mm	0.276 in	0.276 "	7 mm
Lumileds LXR9-QW27	84 lm/W	120 °	Warm, White	2.8 V	2700 K	Surface Mount	660 lm	1.25 °C/W	90	3.87 mm	0.152 in	7 mm	0.276 in	0.276 "	7 mm	4.8 A	2.8 A
