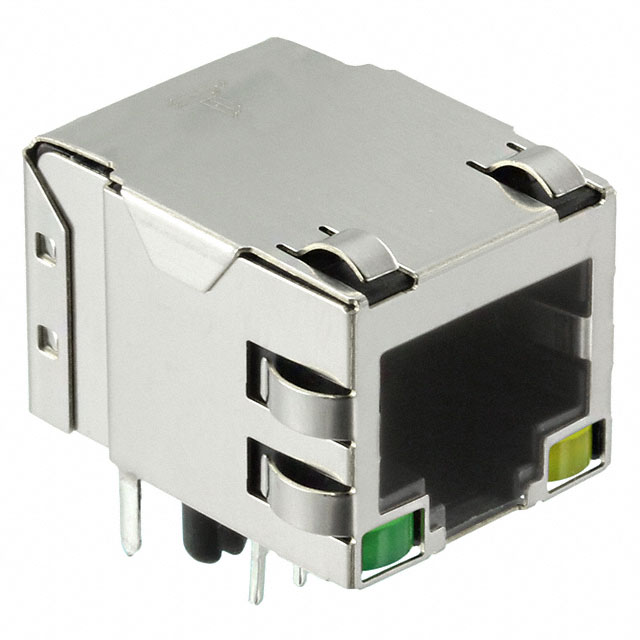

5-1840406-8

Active

TRP Connector B.V.

CONN JACK 1PORT 100 BASE-T

Search across all available documentation for this part.

Active

TRP Connector B.V.

CONN JACK 1PORT 100 BASE-T

Technical Specifications

Parameters and characteristics for this part

Specification	5-1840406-8

Applications	10/100 Base-T, AutoMDIX
Connector Type	RJ45
Contact Finish	Gold
Contact Finish Thickness	50 µin
Contact Finish Thickness	1.27 µm
Contact Material	Phosphor Bronze
Features	Board Guide
Height Above Board [z]	14.1 mm
Height Above Board [z]	0.555 in
Housing Material	Polyethylene Terephthalate (PET), Polyester
LED Color	Yellow, Green
Mounting Type	Through Hole
Number of Ports	1
Number of Rows	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	0 °C
Orientation	90 °
Shield Material	Brass
Shielding	Shielded, EMI Finger
Tab Direction	Down
Termination	Solder

CONN JACK 1PORT 100 BASE-T

Part	Shielding	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Number of Ports	Shield Material	Features	Termination	Mounting Type	Height Above Board [z]	Height Above Board [z]	Housing Material	Connector Type	Orientation	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Tab Direction	Number of Rows	Contact Material	LED Color
TRP Connector B.V. 5-1840406-8	Shielded, EMI Finger	70 °C	0 °C	10/100 Base-T, AutoMDIX	1	Brass	Board Guide	Solder	Through Hole	14.1 mm	0.555 in	Polyester, Polyethylene Terephthalate (PET)	RJ45	90 °	50 µin	1.27 µm	Gold	Down	1	Phosphor Bronze	Green, Yellow

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

1 Port RJ45Through Hole 10/100 Base-T, AutoMDIX

Technical documentation and resources

No documents available
