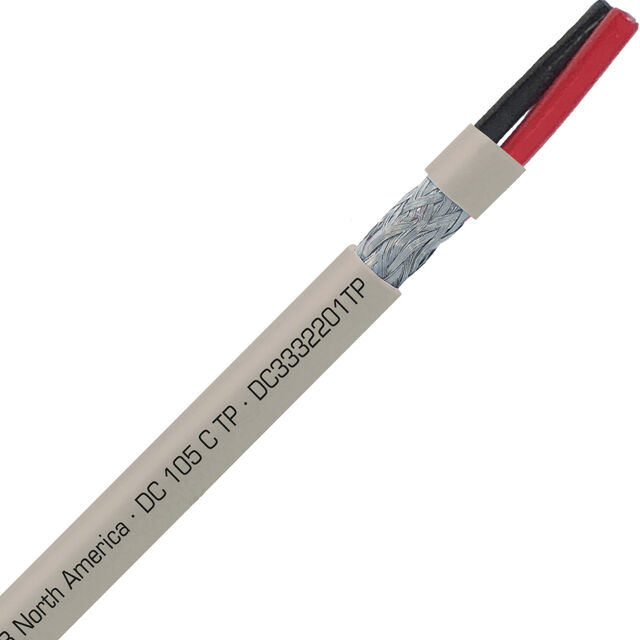

DC3332201TP

Active

SAB North America

MULTI-PAIR 2COND 22AWG GRY 1=1FT

Search across all available documentation for this part.

Active

SAB North America

MULTI-PAIR 2COND 22AWG GRY 1=1FT

Technical Specifications

Parameters and characteristics for this part

Specification	DC3332201TP

Cable Type	Multi-Pair
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	7
Conductor Strand [custom]	30 AWG
Features	Oil Resistant
Jacket (Insulation) Diameter [diameter]	5.16 mm
Jacket (Insulation) Diameter [diameter]	0.203 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Gray
Length	Enter Number of Feet in Order Quantity
Number of Conductors	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-25 °C
Shield Material	Copper, Tinned
Shield Type	Foil, Braid
Voltage	300 V
Wire Gauge	22 AWG

MULTI-PAIR 2COND 22AWG GRY 1=1FT

Part	Jacket (Insulation) Material	Shield Type	Operating Temperature [Min]	Operating Temperature [Max]	Shield Material	Jacket Color	Conductor Material	Conductor Strand [custom]	Conductor Strand [custom]	Number of Conductors	Voltage	Conductor Insulation	Wire Gauge	Length	Features	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Cable Type
SAB North America DC3332201TP	Poly-Vinyl Chloride (PVC)	Braid, Foil	-25 °C	105 ░C	Copper, Tinned	Gray	Copper, Tinned	7	30 AWG	2	300 V	Poly-Vinyl Chloride (PVC)	22 AWG	Enter Number of Feet in Order Quantity	Oil Resistant	5.16 mm	0.203 in	Multi-Pair

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 (1 Pair Twisted) Conductor Multi-Pair Cable Gray 22 AWG Foil, Braid Enter Number of Feet in Order Quantity
