C3P0604N-A

Active

ELECTROSWITCH

30° 3 2 250MA 125V 28V ROTARY SWITCHES ROHS

Search across all available documentation for this part.

Active

ELECTROSWITCH

30° 3 2 250MA 125V 28V ROTARY SWITCHES ROHS

Technical Specifications

Parameters and characteristics for this part

Specification	C3P0604N-A

Actuator Length [x]	9.52 mm
Actuator Type	Flatted
Actuator Type [diameter]	3.17 mm
Angle of Throw	30 °
Circuit per Deck	3P4T
Contact Finish	Silver
Contact Material	Brass
Contact Timing	Non-Shorting
Current Rating (Amps)	100 mA, 250 mA
Depth Behind Panel	30 mm
Index Stops	Adjustable
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Decks	2
Number of Poles per Deck	3
Number of Positions [Max]	4
Number of Positions [Min]	2
Panel Cutout Dimensions [diameter]	6.76 mm
Termination Style	PC Pin
Voltage Rating - AC	125 V
Voltage Rating - DC	28 V

Part	Actuator Type [diameter]	Actuator Type	Actuator Length [x]	Number of Decks	Voltage Rating - AC	Number of Positions [Max]	Number of Positions [Min]	Current Rating (Amps)	Contact Timing	Number of Poles per Deck	Index Stops	Termination Style	Voltage Rating - DC	Contact Finish	Panel Cutout Dimensions [diameter]	Angle of Throw	Circuit per Deck	Depth Behind Panel	Mounting Type	Contact Material
ELECTROSWITCH C3P0604N-A	3.17 mm	Flatted	9.52 mm	2	125 V	4	2	100 mA 250 mA	Non-Shorting	3	Adjustable	PC Pin	28 V	Silver	6.76 mm	30 °	3P4T	30 mm	Panel Mount Right Angle Through Hole	Brass

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

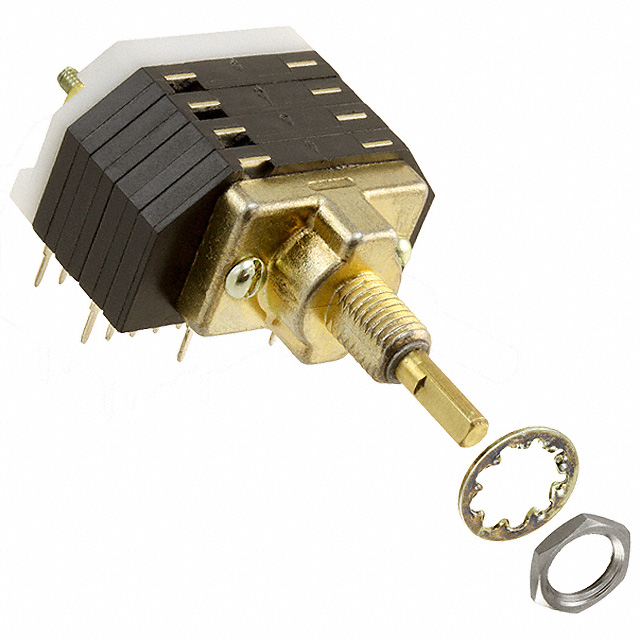

Rotary Switch 2 ~ 4 Position 3P4T 100mA (AC), 250mA (DC) 125 VAC Panel Mount, Through Hole, Right Angle
