4P01-2A02-DA

Active

3M (TC)

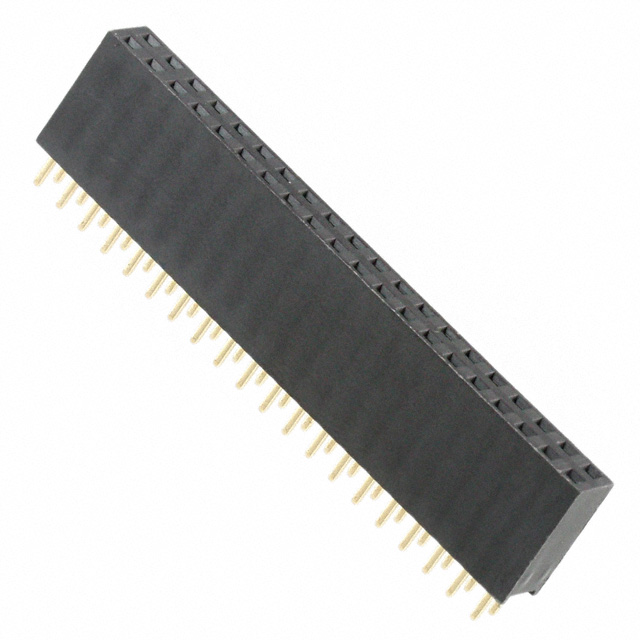

CONNECTOR, 4P01 SERIES, 40 CONTACTS, 2.54 MM, RECEPTACLE, THROUGH HOLE, 2 ROWS

Search across all available documentation for this part.

Active

3M (TC)

CONNECTOR, 4P01 SERIES, 40 CONTACTS, 2.54 MM, RECEPTACLE, THROUGH HOLE, 2 ROWS

Technical Specifications

Parameters and characteristics for this part

Specification	4P01-2A02-DA

Connector Style	PC/104
Connector Type	Non-Stackthrough, (PC/104)
Contact Finish	Gold
Contact Finish Thickness	3 Áin
Contact Finish Thickness	0.076 Ám
Current Rating (Amps)	3 A
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	40
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Termination	Solder

Part	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Current Rating (Amps)	Material Flammability Rating	Number of Positions Loaded	Connector Type	Number of Rows	Number of Positions	Pitch [x]	Pitch [x]	Termination	Contact Finish	Connector Style
3M (TC) 4P01-2A02-DA	-40 °C	105 ░C	Through Hole	3 Áin	0.076 Ám	3 A	UL94 V-0	All	Non-Stackthrough (PC/104)	2	40	2.54 mm	0.1 in	Solder	Gold	PC/104
3M (TC) 4P01-2C02-DA	-40 °C	105 ░C	Through Hole	3 Áin	0.076 Ám	3 A	UL94 V-0	All	Stackthrough (PC/104)	2	40	2.54 mm	0.1 in	Solder	Gold	PC/104

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

40 Connector Non-Stackthrough, (PC/104) Through Hole PC/104
