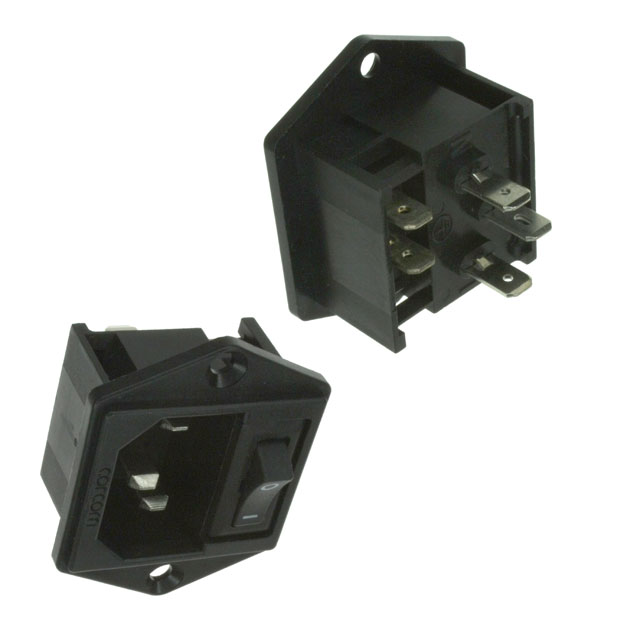

2-1609114-8

Obsolete

TE Connectivity Corcom Filters

PWR ENT MOD RCPT IEC320-C14 PNL

Search across all available documentation for this part.

Obsolete

TE Connectivity Corcom Filters

PWR ENT MOD RCPT IEC320-C14 PNL

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	2-1609114-8	1609114 Series

Accomodates a Fuse	False	False
Approval Agency	UL, VDE, CSA	UL, VDE, CSA
Connector Style	IEC 320-C14	IEC 320-C14
Connector Type	Receptacle, Male Blades - Module	Receptacle, Male Blades - Module
Current Rating - Appliance Inlet	15 A	1 - 15 A
Current Rating - Filter	-	1 - 10 A
Filter Type	Unfiltered - Commercial	Unfiltered - Commercial, Filtered (EMI, RFI) - Commercial
Mounting Type	Panel Mount, Flange	Panel Mount, Flange, Snap-In
Panel Cutout Dimensions [x]	28.1 mm	28.1 mm
Panel Cutout Dimensions [y]	31.9 mm	31.9 mm
Panel Thickness	-	0.157 in
Panel Thickness	-	4 mm
Switch Features	Switch On-Off	Switch On-Off
Termination	0.189 ", 4.8 mm	0.189 - 4.8 "
Termination	Quick Connect	Quick Connect
Voltage Rating - Appliance Inlet [Max]	250 VAC	250 VAC
Voltage Rating - Appliance Inlet [Min]	120 VAC	120 VAC

PWR ENT MOD RCPT IEC320-C14 PNL

Part	Termination	Termination	Filter Type	Connector Style	Mounting Type	Connector Type	Current Rating - Appliance Inlet	Switch Features	Approval Agency	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Voltage Rating - Appliance Inlet [Max]	Voltage Rating - Appliance Inlet [Min]	Current Rating - Filter	Panel Thickness	Panel Thickness
TE Connectivity Corcom Filters 2-1609114-8	0.189 ", 4.8 mm	Quick Connect	Unfiltered - Commercial	IEC 320-C14	Flange, Panel Mount	Receptacle, Male Blades - Module	15 A	Switch On-Off	CSA, UL, VDE	28.1 mm	31.9 mm	250 VAC	120 VAC
TE Connectivity Corcom Filters 2-1609114-2	0.189 ", 4.8 mm	Quick Connect	Filtered (EMI, RFI) - Commercial	IEC 320-C14	Flange, Panel Mount	Receptacle, Male Blades - Module	1 A	Switch On-Off	CSA, UL, VDE	28.1 mm	31.9 mm	250 VAC	120 VAC	1 A
TE Connectivity Corcom Filters 2-1609114-0	0.189 ", 4.8 mm	Quick Connect	Filtered (EMI, RFI) - Commercial	IEC 320-C14	Panel Mount, Snap-In	Receptacle, Male Blades - Module	10 A	Switch On-Off	CSA, UL, VDE	28.1 mm	31.9 mm	250 VAC	120 VAC	10 A	0.157 in	4 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Flange
