Specification	MS20M23F

Contact Finish	Gold
Contact Finish Thickness	0
Contact Finish Thickness	Flash
Contact Finish Thickness (string set options)	Flash
Contact Material	Copper Alloy
Contact Size	16 S
Contact Termination	Crimp
Contact Type	Socket
Termination Finish	Copper Alloy
Type	Signal, Machined
Wire Gauge or Range - AWG (Max)	22 AWG
Wire Gauge or Range - AWG (Min)	20 AWG
Wire Gauge or Range - mm² (Maximum)	0.5 mm²
Wire Gauge or Range - mm² (Minimum)	0.34 mm²

MS20 Series

Part	Termination Finish	Wire Gauge or Range - mm² (Maximum)	Wire Gauge or Range - mm² (Minimum)	Contact Material	Contact Size	Contact Finish	Type	Contact Finish Thickness	Contact Termination	Wire Gauge or Range - AWG (Min)	Wire Gauge or Range - AWG (Max)	Contact Type	Contact Finish Thickness (string set options)	Contact Finish Thickness
McGill Microwave Systems MS20M23G15	Nickel	0.5 mm²	0.34 mm²	Copper Alloy	16 S	Gold	Machined	15 µin	Crimp	20 AWG	22 AWG	Socket
McGill Microwave Systems MS20M23F	Copper Alloy	0.5 mm²	0.34 mm²	Copper Alloy	16 S	Gold	Machined Signal	0	Crimp	20 AWG	22 AWG	Socket	Flash	Flash
McGill Microwave Systems MS20M23G10	Nickel	0.5 mm²	0.34 mm²	Copper Alloy	16 S	Gold	Machined	10 Ąin	Crimp	20 AWG	22 AWG	Socket

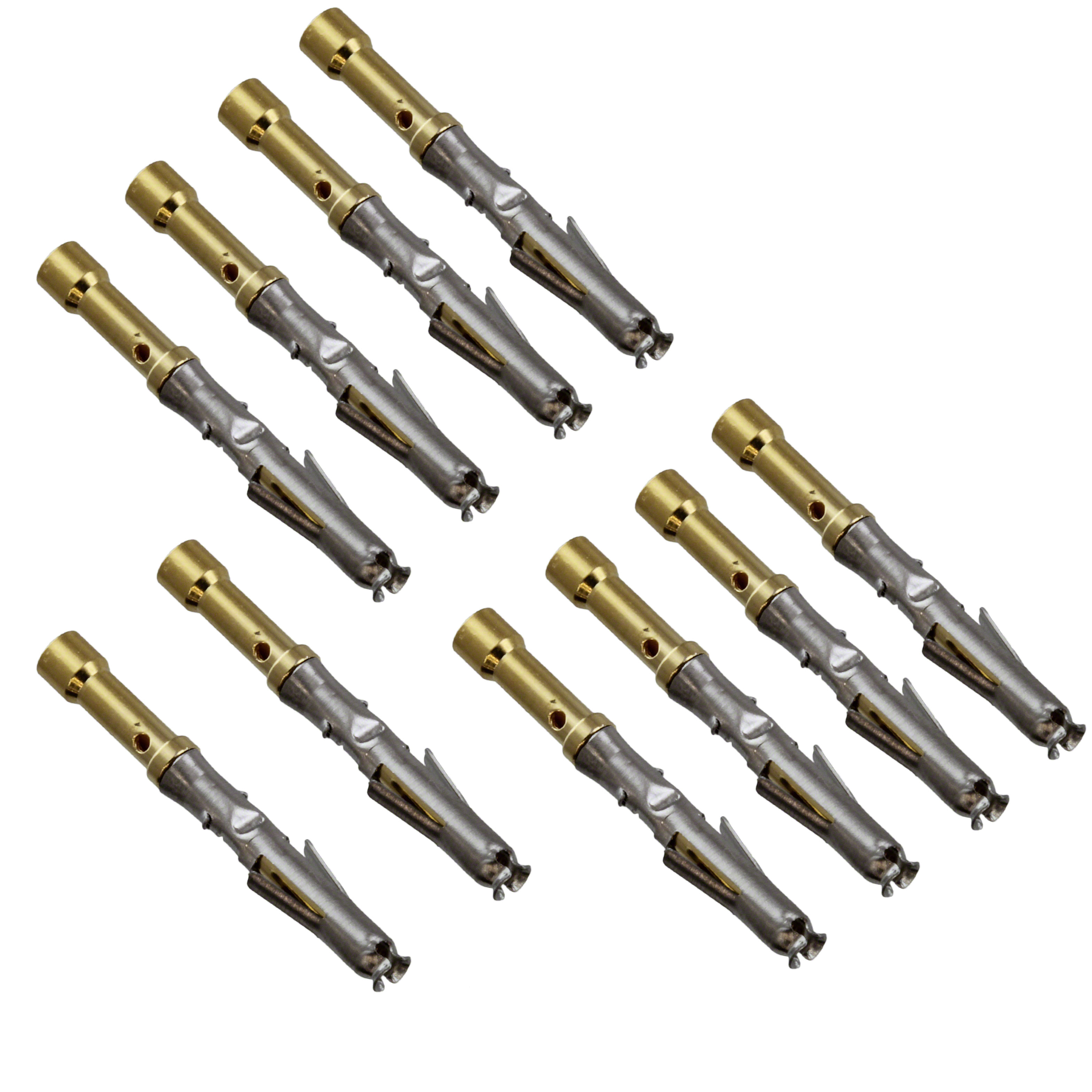

McGill Microwave Systems MS20W23F-10	Copper Alloy	0.5 mm²	0.34 mm²	Copper Alloy	20	Gold	Machined Signal	0	Crimp	20 AWG	22 AWG	Socket	Flash	Flash

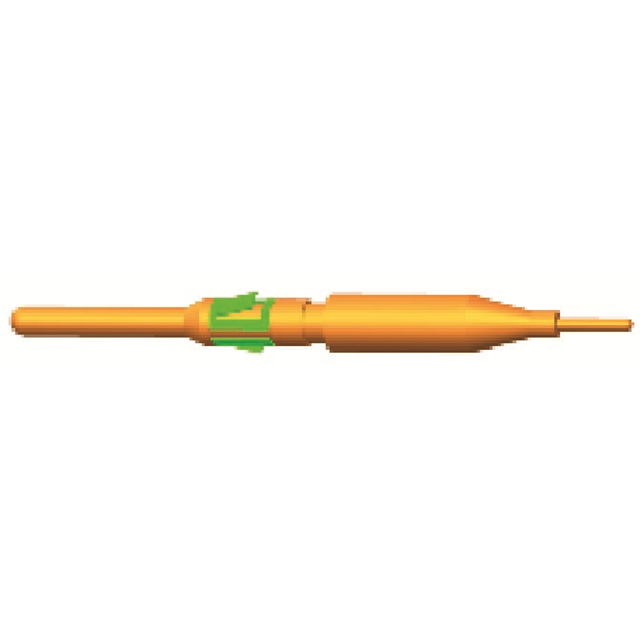

McGill Microwave Systems MS20W12E09F					20	Gold	Machined	0	Solder			Socket	Flash	Flash

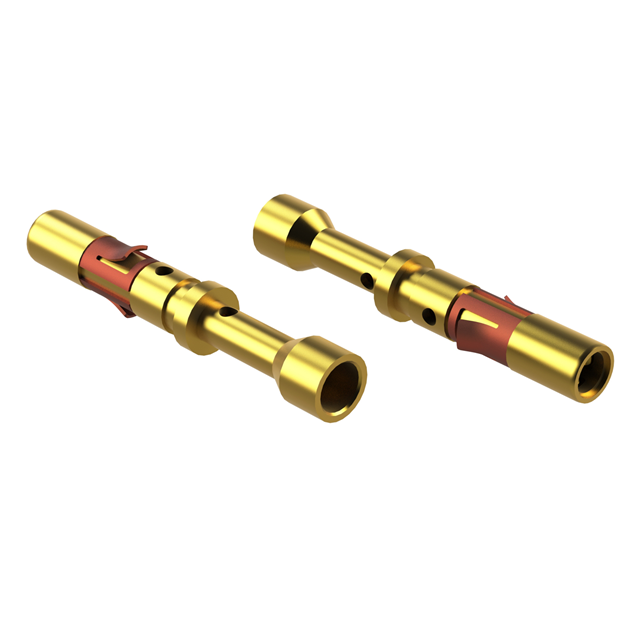

McGill Microwave Systems MS20M23G30	Nickel	0.5 mm²	0.34 mm²	Copper Alloy	16 S	Gold	Machined Signal	30 µin	Crimp	20 AWG	22 AWG	Socket
