Specification	1-1776275-2

Clamp Material - Plating	Steel, Stainless
Color	Blue
Contact Material	Brass
Current	10 A, 7 A
Features	Interlocking (Side)
Housing Material	Nylon 6/6, Polyamide, PA66
Mating Orientation	Horizontal with Board
Mounting Type	Through Hole
Number of Levels	1
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-55 °C
Pitch	0.138 in
Plating	Copper Tin Plated
Positions Per Level	12
Screw Material	Galvanized, Steel
Screw Plating	Chromate Plated
Screw Thread	M2.6
Torque - Screw	0.28 Nm
Voltage	300 V, 250 V
Wire Gauge (AWG) (Max)	26 AWG
Wire Gauge (AWG) (Min)	18 AWG
Wire Termination	Wire Guard, Screw, Leaf Spring

1776275 Series

Part	Current	Voltage	Pitch	Mounting Type	Number of Levels	Wire Gauge (AWG) (Min)	Wire Gauge (AWG) (Max)	Color	Features	Wire Termination	Positions Per Level	Mating Orientation	Clamp Material - Plating	Contact Material	Plating	Operating Temperature (Min)	Operating Temperature (Max)	Screw Thread	Housing Material	Screw Plating	Screw Material	Torque - Screw

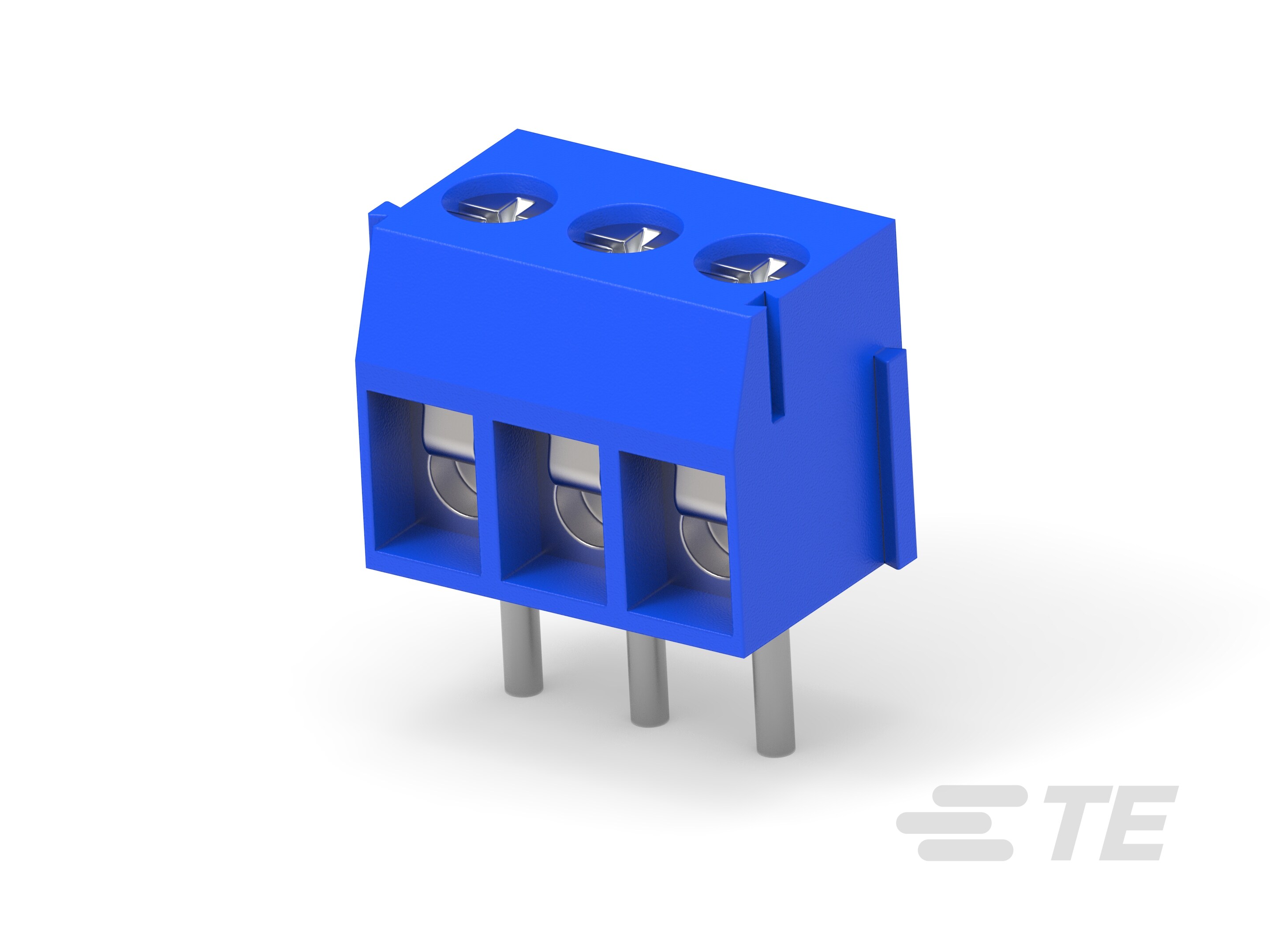

TE Connectivity AMP Connectors 1776275-3	7 A 10 A	250 V 300 V	0.138 in	Through Hole	1	18 AWG	26 AWG	Blue	Interlocking (Side)	Leaf Spring Screw Wire Guard	3	Horizontal with Board	Steel Stainless	Brass	Copper Tin Plated	-55 °C	105 °C	M2.6	Nylon 6/6 PA66 Polyamide	Chromate Plated	Galvanized Steel	0.28 Nm
TE Connectivity AMP Connectors 1-1776275-1	7 A 10 A	250 V 300 V	0.138 in	Through Hole	1	18 AWG	26 AWG	Blue	Interlocking (Side)	Leaf Spring Screw Wire Guard	11	Horizontal with Board	Steel Stainless	Brass	Copper Tin Plated	-55 °C	105 °C	M2.6	Nylon 6/6 PA66 Polyamide	Chromate Plated	Galvanized Steel	0.28 Nm
TE Connectivity AMP Connectors 2-1776275-4	7 A 10 A	250 V 300 V	0.138 in	Through Hole	1	18 AWG	26 AWG	Blue	Interlocking (Side)	Leaf Spring Screw Wire Guard	24	Horizontal with Board	Steel Stainless	Brass	Copper Tin Plated	-55 °C	105 °C	M2.6	Nylon 6/6 PA66 Polyamide	Chromate Plated	Galvanized Steel	0.28 Nm

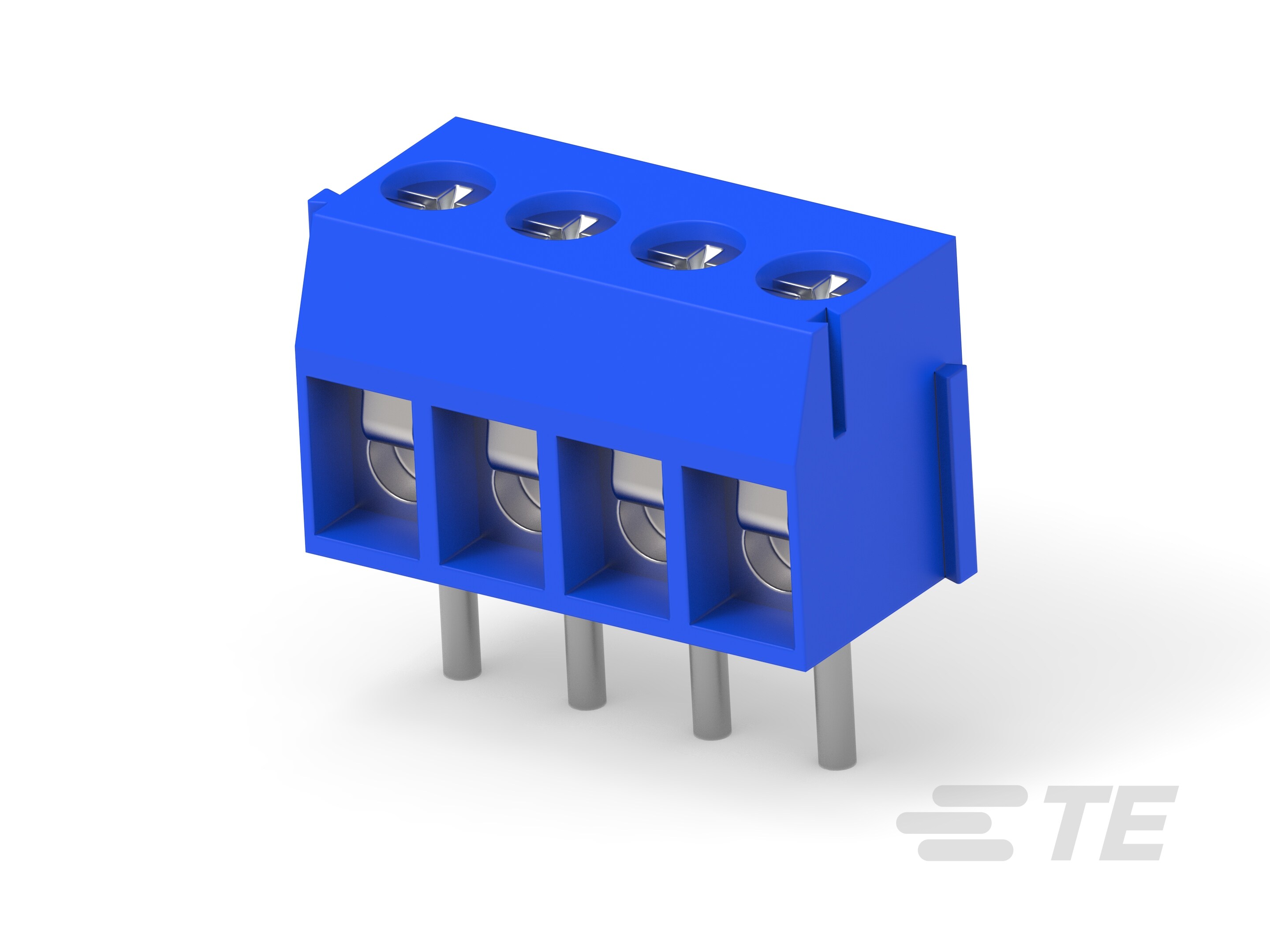

TE Connectivity AMP Connectors 1776275-4	7 A 10 A	250 V 300 V	0.138 in	Through Hole	1	18 AWG	26 AWG	Blue	Interlocking (Side)	Leaf Spring Screw Wire Guard	4	Horizontal with Board	Steel Stainless	Brass	Copper Tin Plated	-55 °C	105 °C	M2.6	Nylon 6/6 PA66 Polyamide	Chromate Plated	Galvanized Steel	0.28 Nm

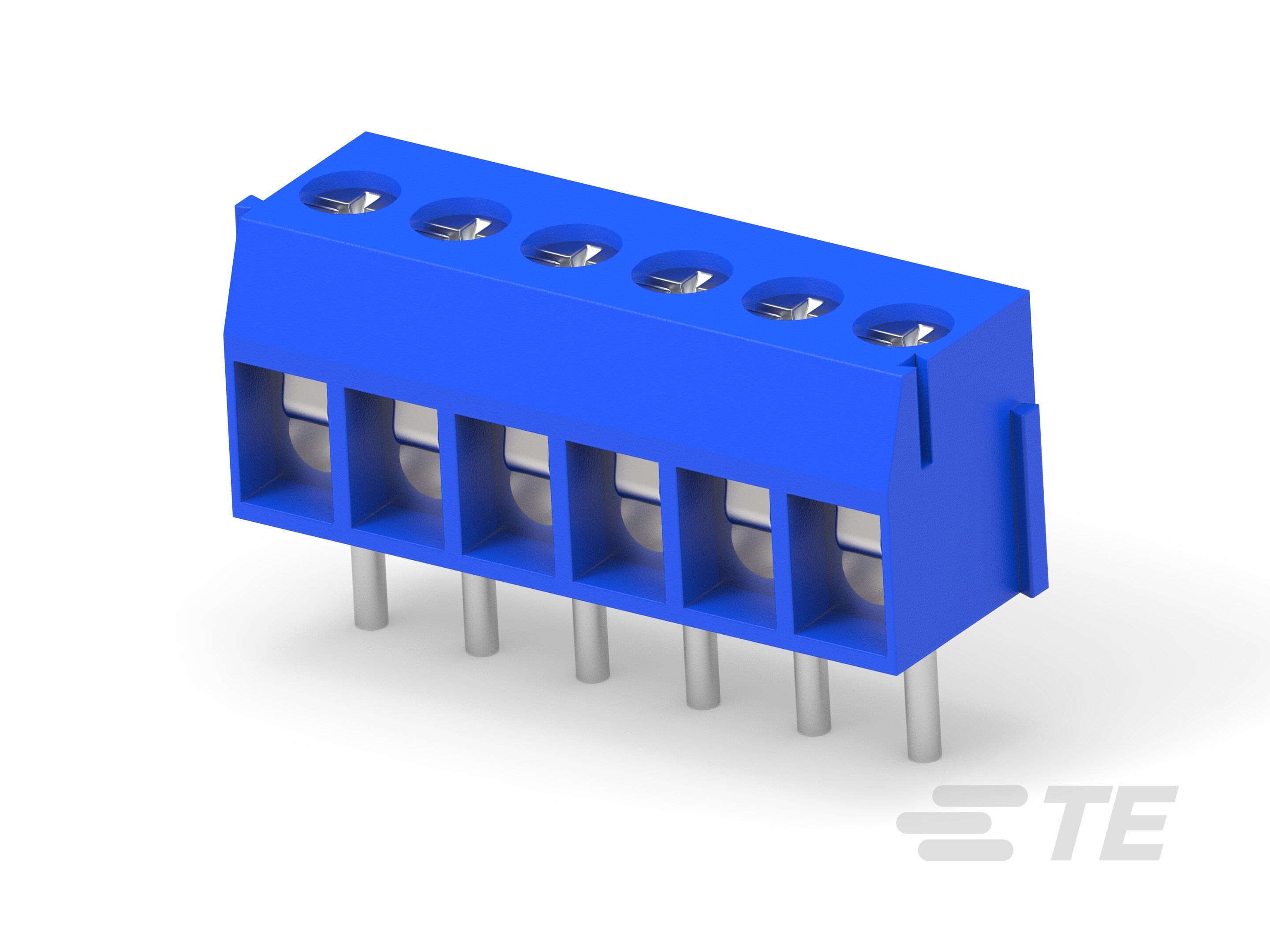

TE Connectivity AMP Connectors 1776275-6	7 A 10 A	250 V 300 V	0.138 in	Through Hole	1	18 AWG	26 AWG	Blue	Interlocking (Side)	Leaf Spring Screw Wire Guard	6	Horizontal with Board	Steel Stainless	Brass	Copper Tin Plated	-55 °C	105 °C	M2.6	Nylon 6/6 PA66 Polyamide	Chromate Plated	Galvanized Steel	0.28 Nm

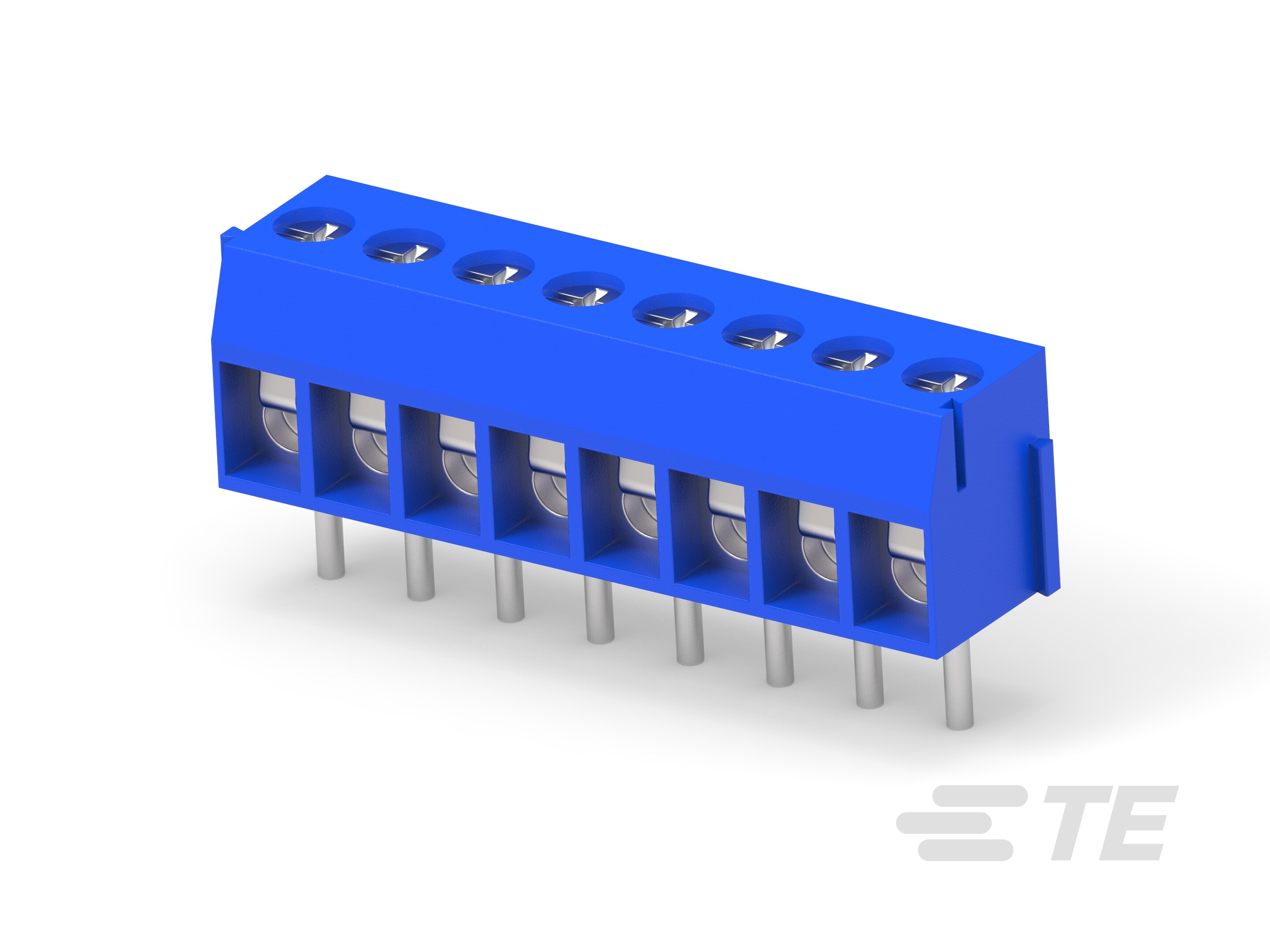

TE Connectivity AMP Connectors 1776275-8	7 A 10 A	250 V 300 V	0.138 in	Through Hole	1	18 AWG	26 AWG	Blue	Interlocking (Side)	Leaf Spring Screw Wire Guard	8	Horizontal with Board	Steel Stainless	Brass	Copper Tin Plated	-55 °C	105 °C	M2.6	Nylon 6/6 PA66 Polyamide	Chromate Plated	Galvanized Steel	0.28 Nm
TE Connectivity AMP Connectors 1776275-7	7 A 10 A	250 V 300 V	0.138 in	Through Hole	1	18 AWG	26 AWG	Blue	Interlocking (Side)	Leaf Spring Screw Wire Guard	7	Horizontal with Board	Steel Stainless	Brass	Copper Tin Plated	-55 °C	105 °C	M2.6	Nylon 6/6 PA66 Polyamide	Chromate Plated	Galvanized Steel	0.28 Nm
TE Connectivity AMP Connectors 1-1776275-3	7 A 10 A	250 V 300 V	0.138 in	Through Hole	1	18 AWG	26 AWG	Blue	Interlocking (Side)	Leaf Spring Screw Wire Guard	13	Horizontal with Board	Steel Stainless	Brass	Copper Tin Plated	-55 °C	105 °C	M2.6	Nylon 6/6 PA66 Polyamide	Chromate Plated	Galvanized Steel	0.28 Nm

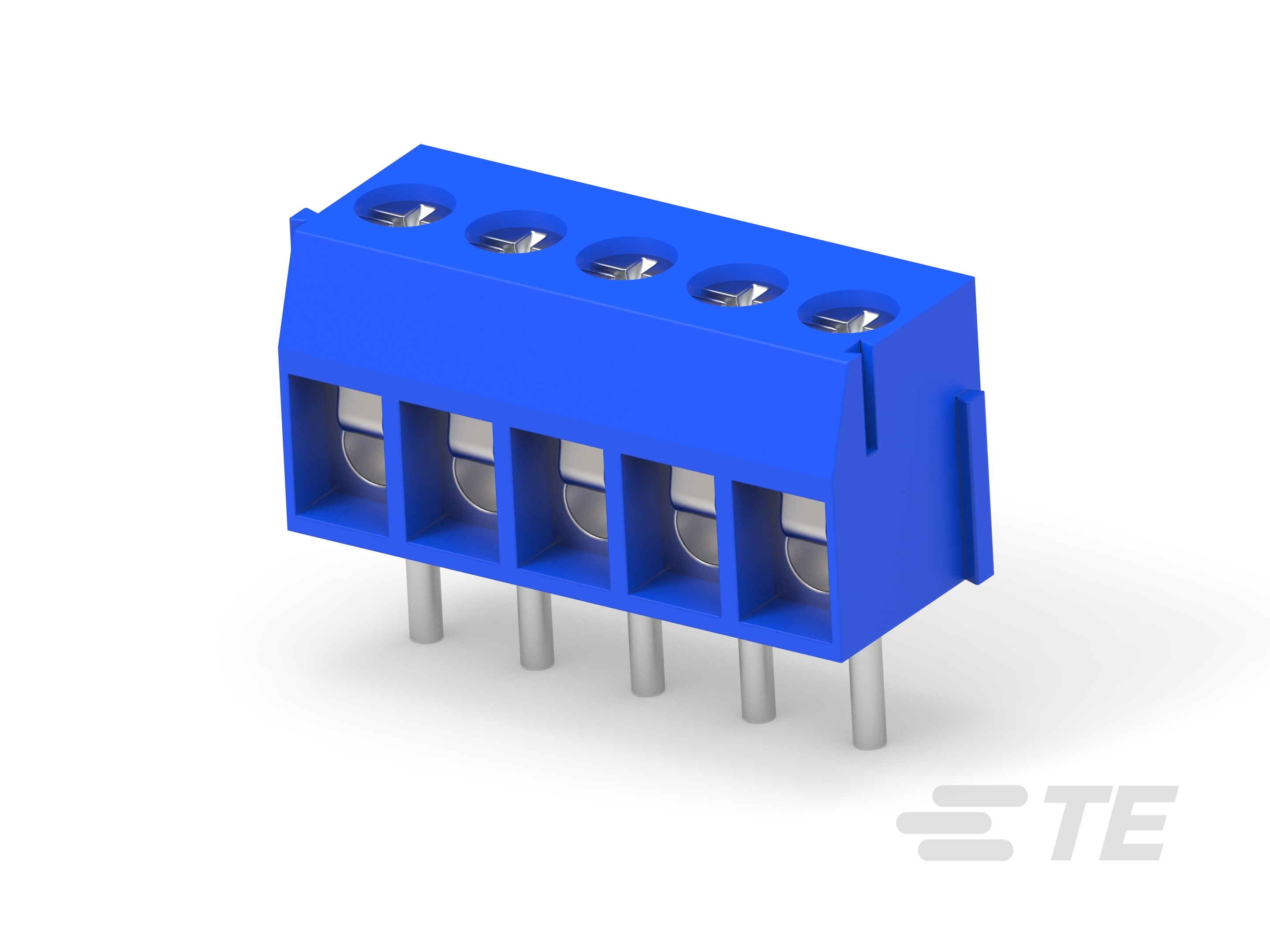

TE Connectivity AMP Connectors 1776275-5	7 A 10 A	250 V 300 V	0.138 in	Through Hole	1	18 AWG	26 AWG	Blue	Interlocking (Side)	Leaf Spring Screw Wire Guard	5	Horizontal with Board	Steel Stainless	Brass	Copper Tin Plated	-55 °C	105 °C	M2.6	Nylon 6/6 PA66 Polyamide	Chromate Plated	Galvanized Steel	0.28 Nm

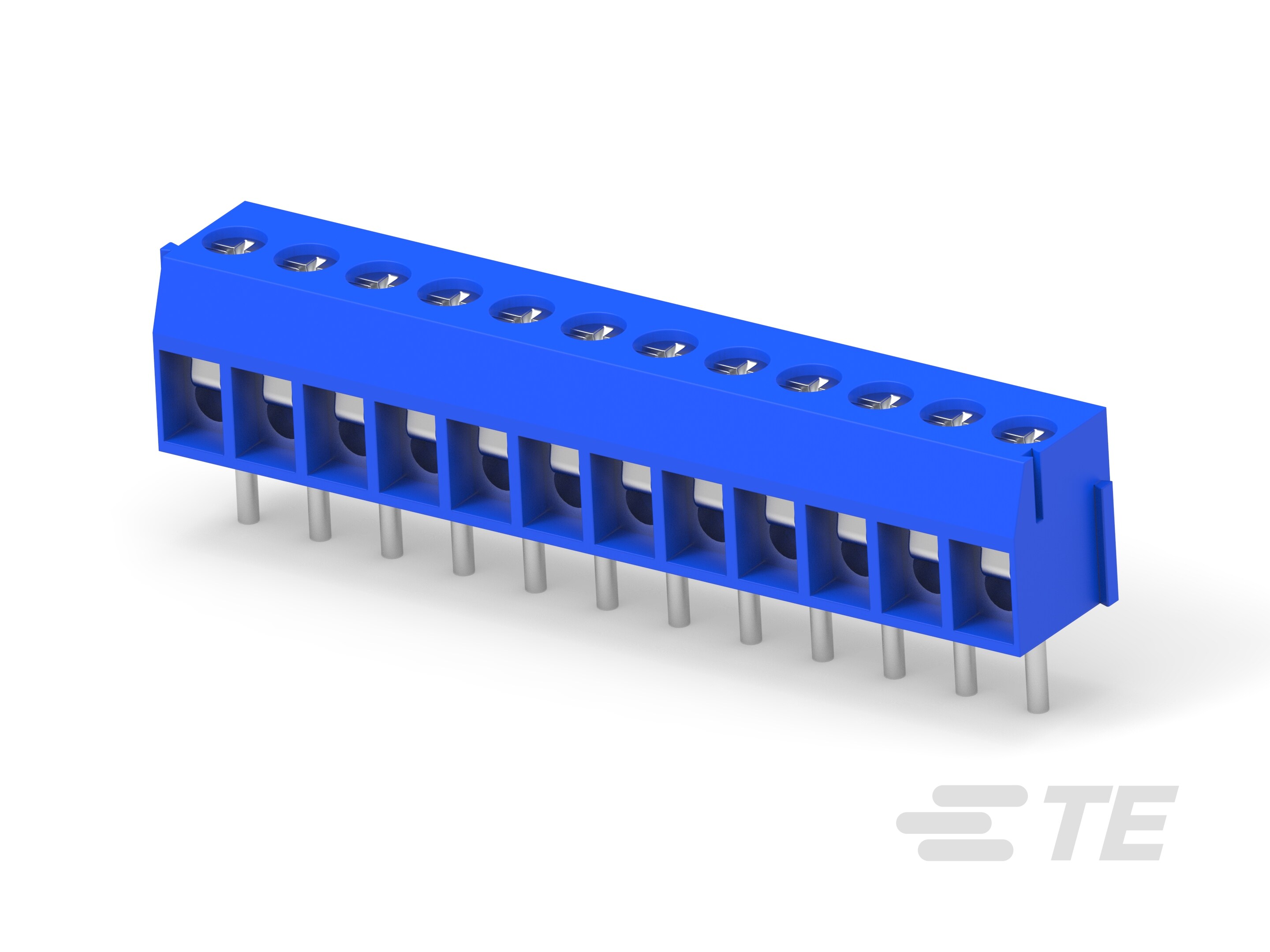

TE Connectivity AMP Connectors 1-1776275-2	7 A 10 A	250 V 300 V	0.138 in	Through Hole	1	18 AWG	26 AWG	Blue	Interlocking (Side)	Leaf Spring Screw Wire Guard	12	Horizontal with Board	Steel Stainless	Brass	Copper Tin Plated	-55 °C	105 °C	M2.6	Nylon 6/6 PA66 Polyamide	Chromate Plated	Galvanized Steel	0.28 Nm
