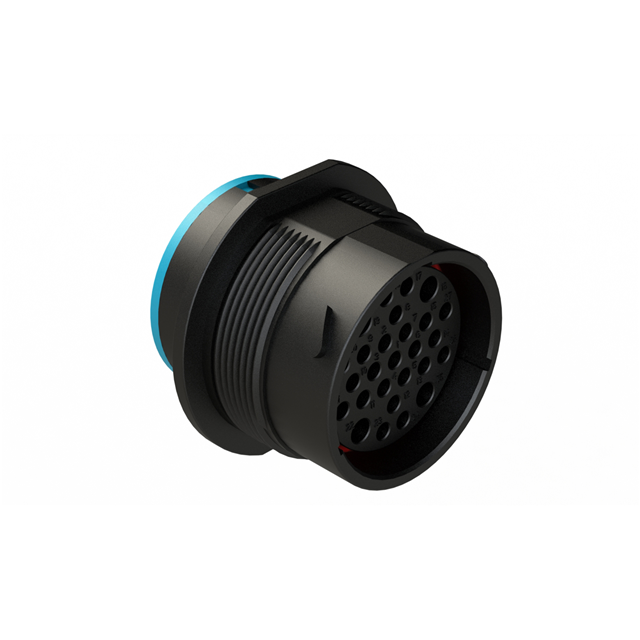

AHDP04-24-27SR-SRA

Active

McGill Microwave Systems

CONN RCPT HSG FMALE 27POS PNL MT

AHDP04-24-27SR-SRA

Active

McGill Microwave Systems

CONN RCPT HSG FMALE 27POS PNL MT

Description Specifications Series Pricing CAD Documents

Description

General part information

AHDP04 Series

27 Position Circular Connector Receptacle Housing Panel Mount

Technical Specifications

Parameters and characteristics for this part

Specification	AHDP04-24-27SR-SRA

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Size	12, 16
Contact Type	Crimp
Fastening Type	Bayonet Lock
Housing Color	Black
Ingress Protection Description	Water Resistant, Dust Tight, Waterproof
Ingress Protection IP Rating	IP67, IP69K
Insert Material	Thermoplastic
Mounting Feature	Bulkhead, Front Side Nut
Mounting Type	Panel Mount
Note	Contacts Not Included, Jam Nut Not Included
Number of Positions	27
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Orientation	Keyed
Shell Material	Thermoplastic
Shell Size - Insert (Maximum)	27
Shell Size - Insert (Minimum)	24
Shielding	Unshielded
Type	For Female Sockets

AHDP04 Series

...

Part	Insert Material	Shell Size - Insert Length	Shell Size - Insert Width	Mounting Type	Housing Color	Type	Connector Type	Operating Temperature (Max)	Operating Temperature (Min)	Orientation	Primary Material	Ingress Protection Description	Ingress Protection IP Rating	Mounting Feature	Fastening Type	Note	Shielding	Contact Size	Shell Material	Number of Positions	Contact Shape	Contact Type	Shell Size - Insert (Maximum)	Shell Size - Insert (Minimum)	Position Types

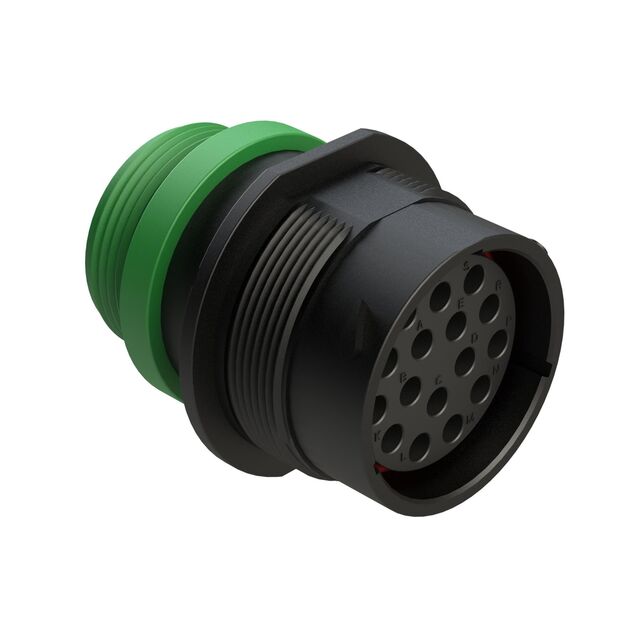

McGill Microwave Systems AHDP04-24-16SN-STA	Thermoplastic	24 mm	16 mm	Panel Mount	Black	For Female Sockets	Receptacle Housing	125 °C	-55 °C	Keyed	Plastic	Dust Tight Water Resistant Waterproof	IP68 IP69K	Bulkhead Front Side Nut	Bayonet Lock	Contacts Not Included	Unshielded	12	Thermoplastic	16	Circular	Crimp
McGill Microwave Systems AHDP04-24-09PR-SRA	Thermoplastic	24 mm	9 mm	Panel Mount	Black	For Male Pins	Receptacle Housing	125 °C	-55 °C	Keyed		Dust Tight Water Resistant Waterproof	IP67 IP69K	Bulkhead Front Side Nut	Bayonet Lock	Contacts Not Included Jam Nut Not Included	Unshielded	4 8 12	Thermoplastic	9	Circular	Crimp

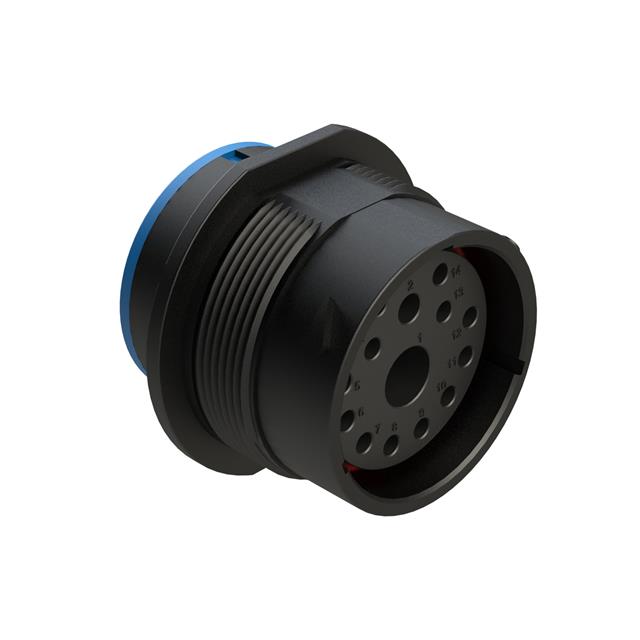

McGill Microwave Systems AHDP04-24-14SR-SRA		24 mm	14 mm	Panel Mount	Black	For Female Sockets	Receptacle Housing	125 °C	-55 °C	Keyed	Plastic	Dust Tight Water Resistant Waterproof	IP67 IP69K	Bulkhead Front Side Nut	Bayonet Lock	Contacts Not Included	Unshielded	4 12 16	Thermoplastic	14	Circular	Crimp
McGill Microwave Systems AHDP04-24-07PN-STA	Thermoplastic	24 mm	7 mm	Panel Mount	Black	For Male Pins	Receptacle Housing	125 °C	-55 °C	Keyed	Plastic	Dust Tight Water Resistant Waterproof	IP68 IP69K	Bulkhead Front Side Nut	Bayonet Lock	Contacts Not Included	Unshielded	8 12	Thermoplastic	7	Circular	Crimp

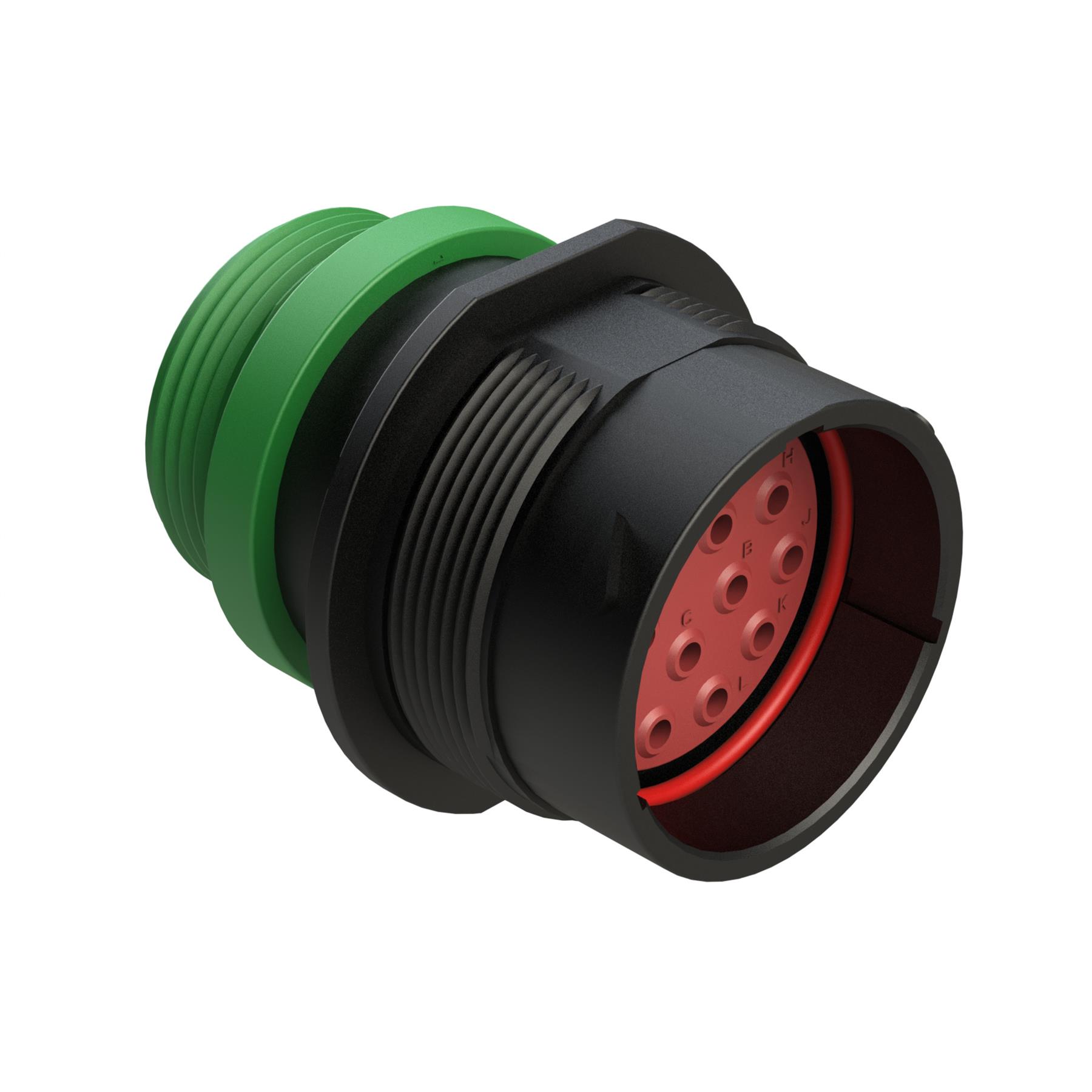

McGill Microwave Systems AHDP04-24-16PN-STA	Thermoplastic	24 mm	16 mm	Panel Mount	Black	For Male Pins	Receptacle Housing	125 °C	-55 °C	Keyed	Plastic	Dust Tight Water Resistant Waterproof	IP68 IP69K	Bulkhead Front Side Nut	Bayonet Lock	Contacts Not Included	Unshielded	12	Thermoplastic	16	Circular	Crimp
McGill Microwave Systems AHDP04-24-91PR16-SRA	Thermoplastic			Panel Mount	Black	For Male Pins	Receptacle Housing	125 °C	-55 °C	Keyed	Plastic	Dust Tight Water Resistant Waterproof	IP67 IP69K	Bulkhead Front Side Nut	Bayonet Lock	Contacts Not Included Jam Nut Not Included	Unshielded	8 12 16	Thermoplastic	9	Circular	Crimp	91	24
McGill Microwave Systems AHDP04-24-27SR-SRA	Thermoplastic			Panel Mount	Black	For Female Sockets	Receptacle Housing	125 °C	-55 °C	Keyed		Dust Tight Water Resistant Waterproof	IP67 IP69K	Bulkhead Front Side Nut	Bayonet Lock	Contacts Not Included Jam Nut Not Included	Unshielded	12 16	Thermoplastic	27	Circular	Crimp	27	24
McGill Microwave Systems AHDP04-24-31SR-SRA	Thermoplastic			Panel Mount	Black	For Female Sockets	Receptacle Housing	125 °C	-55 °C	Keyed		Dust Tight Water Resistant Waterproof	IP67 IP69K	Bulkhead Front Side Nut	Bayonet Lock	Contacts Not Included Jam Nut Not Included	Unshielded	16 S	Thermoplastic	31	Circular	Crimp	31	24
McGill Microwave Systems AHDP04-24-23ST-SRA	Thermoplastic	24 mm	23 mm	Panel Mount	Black	For Female Sockets	Receptacle Housing	125 °C	-55 °C	Keyed	Plastic	Dust Tight Water Resistant Waterproof	IP68 IP69K	Bulkhead Front Side Nut	Bayonet Lock	Contacts Not Included	Unshielded	16 S	Thermoplastic	23	Circular	Crimp

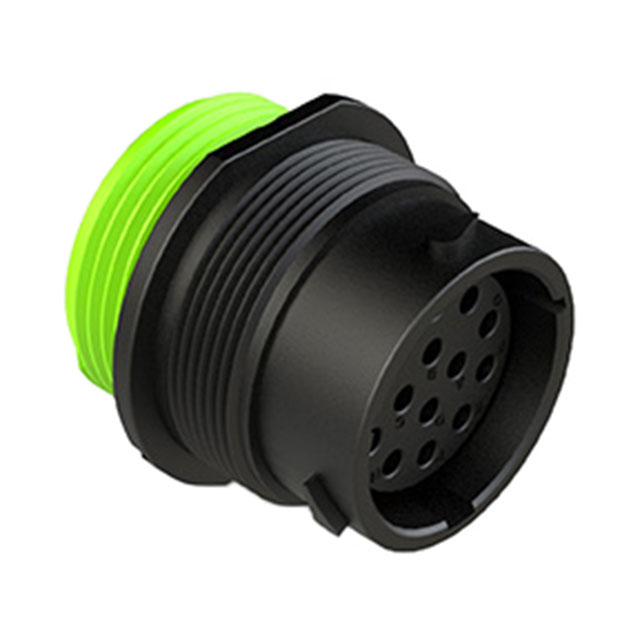

McGill Microwave Systems AHDP04-18-14SN-WTA	Thermoplastic	18 mm	14 mm	Panel Mount	Black	For Female Sockets	Receptacle Housing	125 °C	-55 °C	Keyed		Dust Tight Water Resistant Waterproof	IP67 IP69K	Bulkhead Front Side Nut	Bayonet Lock	Contacts Not Included Jam Nut Not Included	Unshielded	16 S	Thermoplastic	14	Circular	Crimp			Radsok
