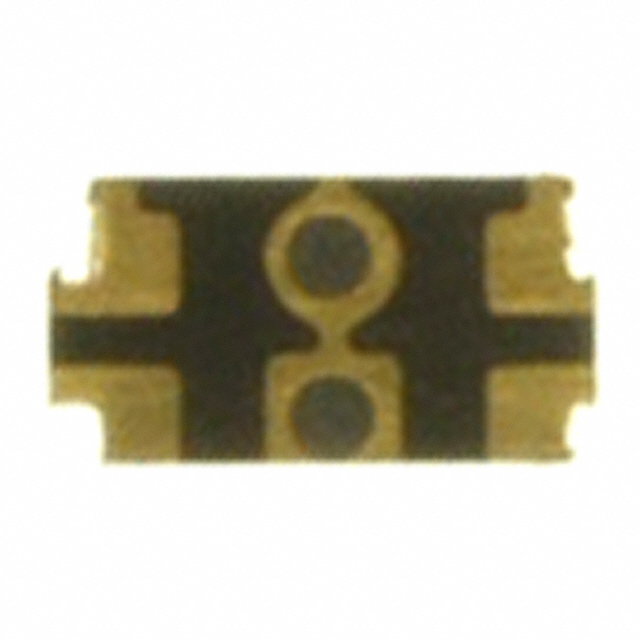

GP2S60B

Active

SHARP/Socle Technology

PHOTOINTERRUPTER TRANS OUT 4X3

Search across all available documentation for this part.

Active

SHARP/Socle Technology

PHOTOINTERRUPTER TRANS OUT 4X3

Technical Specifications

Parameters and characteristics for this part

Specification	GP2S60B

Current - Collector (Ic) (Max) [Max]	20 mA
Current - DC Forward (If) (Max)	50 mA
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Package / Case	4-SMD, No Lead
Response Time	20 µs
Sensing Distance	0.7 mm
Sensing Distance	0.028 "
Sensing Method	Reflective
Voltage - Collector Emitter Breakdown (Max) [Max]	35 V

PHOTOINTERRUPTER TRANS OUT 4X3

Part	Current - Collector (Ic) (Max) [Max]	Current - DC Forward (If) (Max)	Operating Temperature [Min]	Operating Temperature [Max]	Response Time	Package / Case	Mounting Type	Voltage - Collector Emitter Breakdown (Max) [Max]	Sensing Distance	Sensing Distance	Sensing Method
SHARP/Socle Technology GP2S60B	20 mA	50 mA	-25 °C	85 °C	20 µs	4-SMD, No Lead	Surface Mount	35 V	0.7 mm	0.028 "	Reflective

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Reflective Optical Sensor 0.028" (0.7mm) 4-SMD, No Lead
