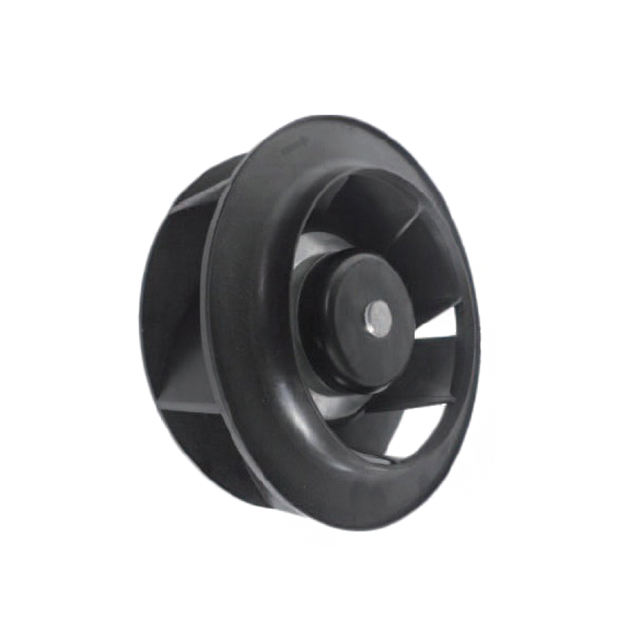

MSI1967H24B2-BBR

Active

Mechatronics Bearing Group

FAN IMP MTRZD 190X67MM 24VDC

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsMSI Series Connection and Speed Control AC/DC Fans & Blowers Catalog +1

MSI1967H24B2-BBR

Active

Mechatronics Bearing Group

FAN IMP MTRZD 190X67MM 24VDC

Deep-Dive with AI

DocumentsMSI Series Connection and Speed Control AC/DC Fans & Blowers Catalog +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MSI1967H24B2-BBR

Air Flow	10.02 m³/min
Air Flow	358 CFM
Approval Agency	CE, cUL, TUV, UL
Bearing Type	Ball
Current Rating (Amps)	4.7 A
Fan Type	Motorized Impellers
Features	Locked Rotor Sensor, Auto Restart
Material - Blade	Plastic
Noise	71 dB(A)
RPM	3000 RPM
Size / Dimension	Round
Size / Dimension [diameter]	190 mm
Static Pressure	1.83 in H2O
Static Pressure	455.8 Pa
Termination	3 Wire Leads
Voltage - Rated	24 VDC
Weight	2.9 lbs
Weight	1.3 kg
Width [x]	67 mm

MSI1967 Series

Part	Termination	Noise	Voltage - Rated	Air Flow	Air Flow	RPM	Static Pressure	Static Pressure	Size / Dimension	Size / Dimension [diameter]	Approval Agency	Current Rating (Amps)	Weight	Weight	Fan Type	Material - Blade	Features	Bearing Type	Width [x]	Voltage - Rated [custom]
Mechatronics Bearing Group MSI1967H24B2-BBR	3 Wire Leads	71 dB(A)	24 VDC	10.02 m³/min	358 CFM	3000 RPM	1.83 in H2O	455.8 Pa	Round	190 mm	CE cUL TUV UL	4.7 A	2.9 lbs	1.3 kg	Motorized Impellers	Plastic	Auto Restart Locked Rotor Sensor	Ball	67 mm
Mechatronics Bearing Group MSI1967H48B1-BBR	3 Wire Leads	71 dB(A)		10.02 m³/min	358 CFM	3000 RPM	1.83 in H2O	455.8 Pa	Round	190 mm	CE cUL TUV UL	2.5 A	2.9 lbs	1.3 kg	Motorized Impellers	Plastic	Auto Restart Speed Sensor (Tach)	Ball	67 mm	48 VDC
Mechatronics Bearing Group MSI1967H48B1+7-BBR	3 Wire Leads	71 dB(A)		10.02 m³/min	358 CFM	3000 RPM	1.83 in H2O	455.8 Pa	Round	190 mm	CE cUL TUV UL	2.5 A	2.9 lbs	1.3 kg	Motorized Impellers	Plastic	Auto Restart Speed Sensor (Tach) Voltage Control	Ball	67 mm	48 VDC
Mechatronics Bearing Group MSI1967H48B2-BBR	3 Wire Leads	71 dB(A)		10.02 m³/min	358 CFM	3000 RPM	1.83 in H2O	455.8 Pa	Round	190 mm	CE cUL TUV UL	2.5 A	2.9 lbs	1.3 kg	Motorized Impellers	Plastic	Auto Restart Locked Rotor Sensor	Ball	67 mm	48 VDC
Mechatronics Bearing Group MSI1967H48B1+6-BBR	4 Wire Leads	71 dB(A)		10.02 m³/min	358 CFM	3000 RPM	1.83 in H2O	455.8 Pa	Round	190 mm	CE cUL TUV UL	2.5 A	2.9 lbs	1.3 kg	Motorized Impellers	Plastic	Auto Restart PWM Control Speed Sensor (Tach)	Ball	67 mm	48 VDC
Mechatronics Bearing Group MSI1967H24B1-BBR	3 Wire Leads	71 dB(A)	24 VDC	10.02 m³/min	358 CFM	3000 RPM	1.83 in H2O	455.8 Pa	Round	190 mm	CE cUL TUV UL	4.7 A	2.9 lbs	1.3 kg	Motorized Impellers	Plastic	Auto Restart Speed Sensor (Tach)	Ball	67 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	6	$ 129.43

Description

General part information

MSI1967 Series

Fan Motorized Impellers 24VDC Round - 190mm Dia Ball 358.0 CFM (10.02m³/min) 3 Wire Leads

Documents

Technical documentation and resources

MSI Series Connection and Speed Control

Datasheet

AC/DC Fans & Blowers Catalog

Datasheet
