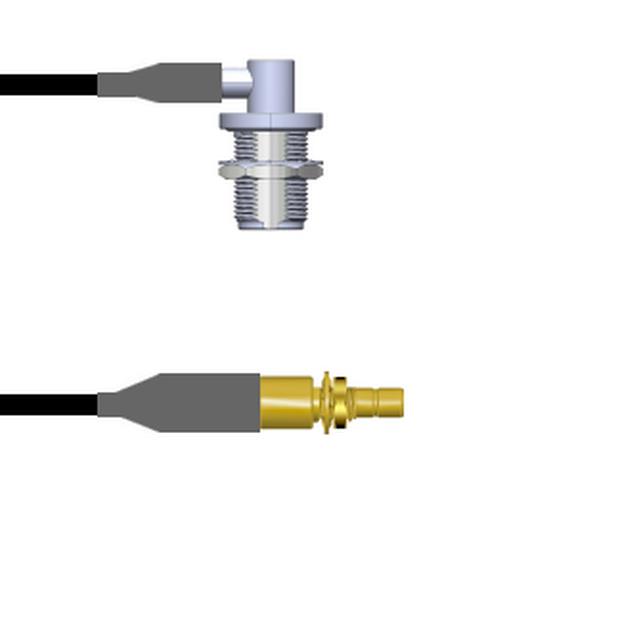

CBL ASSY SMB-NTYPE JACK-JACK 9"

Deep-Dive with AI

Search across all available documentation for this part.

Q-1S03Q0008009i

Active

Amphenol Custom Cable

CBL ASSY SMB-NTYPE JACK-JACK 9"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-1S03Q0008009i

1st Connector	SMB Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Male
2nd Connector	N-Type Jack, Right Angle
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Female
Cable Type	RG-58
Color	Black
Features	Shielded
Frequency - Max [Max]	4 GHz
Length	9 "
Length	228.6 mm
Overall Impedance	50 Ohms
Style	SMB to N-Type

Q-1S03Q0 Series

Part	Frequency - Max [Max]	Color	2nd Connector Mounting Type	1st Connector Mounting Feature	1st Connector Mounting Type	Style	2nd Contact Gender	Features	Length	Length	1st Contact Gender	1st Connector	2nd Connector Mounting Feature	Cable Type	2nd Connector	Overall Impedance	Length	Length [x]	Length [x]
Amphenol Custom Cable Q-1S03Q0008009i	4 GHz	Black	Panel Mount	Bulkhead - Front Side Nut	Panel Mount	SMB to N-Type	Female	Shielded	9 "	228.6 mm	Male	SMB Jack	Bulkhead - Front Side Nut	RG-58	N-Type Jack Right Angle	50 Ohms
Amphenol Custom Cable Q-1S03Q0008012i	4 GHz	Black	Panel Mount	Bulkhead - Front Side Nut	Panel Mount	SMB to N-Type	Female	Shielded	12 "	304.8 mm	Male	SMB Jack	Bulkhead - Front Side Nut	RG-58	N-Type Jack Right Angle	50 Ohms
Amphenol Custom Cable Q-1S03Q0008048i	4 GHz	Black	Panel Mount	Bulkhead - Front Side Nut	Panel Mount	SMB to N-Type	Female	Shielded	48 in	1200 mm	Male	SMB Jack	Bulkhead - Front Side Nut	RG-58	N-Type Jack Right Angle	50 Ohms	4 ft
Amphenol Custom Cable Q-1S03Q0008018i	4 GHz	Black	Panel Mount	Bulkhead - Front Side Nut	Panel Mount	SMB to N-Type	Female	Shielded			Male	SMB Jack	Bulkhead - Front Side Nut	RG-58	N-Type Jack Right Angle	50 Ohms		457.2 mm	457.2 mm
Amphenol Custom Cable Q-1S03Q0008024i	4 GHz	Black	Panel Mount	Bulkhead - Front Side Nut	Panel Mount	SMB to N-Type	Female	Shielded	24 "	609.6 mm	Male	SMB Jack	Bulkhead - Front Side Nut	RG-58	N-Type Jack Right Angle	50 Ohms
Amphenol Custom Cable Q-1S03Q00082.5M	4 GHz	Black	Panel Mount	Bulkhead - Front Side Nut	Panel Mount	SMB to N-Type	Female	Shielded	98.4 in	2.5 m	Male	SMB Jack	Bulkhead - Front Side Nut	RG-58	N-Type Jack Right Angle	50 Ohms	8.2 '
Amphenol Custom Cable Q-1S03Q0008003M	4 GHz	Black	Panel Mount	Bulkhead - Front Side Nut	Panel Mount	SMB to N-Type	Female	Shielded	118.1 in	3 m	Male	SMB Jack	Bulkhead - Front Side Nut	RG-58	N-Type Jack Right Angle	50 Ohms	9.8 '
Amphenol Custom Cable Q-1S03Q0008072i	4 GHz	Black	Panel Mount	Bulkhead - Front Side Nut	Panel Mount	SMB to N-Type	Female	Shielded	72 in	1.8 m	Male	SMB Jack	Bulkhead - Front Side Nut	RG-58	N-Type Jack Right Angle	50 Ohms	6 ft
Amphenol Custom Cable Q-1S03Q0008084i	4 GHz	Black	Panel Mount	Bulkhead - Front Side Nut	Panel Mount	SMB to N-Type	Female	Shielded	84 in	2.1 m	Male	SMB Jack	Bulkhead - Front Side Nut	RG-58	N-Type Jack Right Angle	50 Ohms	7 ft
Amphenol Custom Cable Q-1S03Q0008001M	4 GHz	Black	Panel Mount	Bulkhead - Front Side Nut	Panel Mount	SMB to N-Type	Female	Shielded	39.4 in	1 m	Male	SMB Jack	Bulkhead - Front Side Nut	RG-58	N-Type Jack Right Angle	50 Ohms	3.3 ft

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 120.93
		25	$ 119.40
		50	$ 117.87
		100	$ 116.35
		250	$ 114.82

Description

General part information

Q-1S03Q0 Series

Cable Assembly Coaxial SMB to N-Type RG-58 9.000" (228.60mm)
