2104-632-S-12
ActiveRAF Electronic Hardware
1/4 HEX X 1/2 LENGTH
Deep-Dive with AI
Search across all available documentation for this part.
2104-632-S-12
ActiveRAF Electronic Hardware
1/4 HEX X 1/2 LENGTH
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 2104-632-S-12 |
|---|---|
| Between Board Height | 0.5 in |
| Between Board Height | 12.7 mm |
| Between Board Height | 0.5 in |
| Color | Clear |
| Diameter - Outside | 6.35 mm |
| Diameter - Outside | 0.25 in |
| Diameter - Outside [custom] | 0.25 in |
| Gender | Female |
| Length - Overall | 0.5 in |
| Length - Overall | 0.5 in |
| Length - Overall | 12.7 mm |
| Plating | Zinc, Chromate |
| Screw, Thread Size | #6-32 |
| Threaded/Unthreaded | Threaded |
| Type | Hex Standoff |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.39 | |
| 5 | $ 1.16 | |||
| 10 | $ 1.04 | |||
| 25 | $ 0.93 | |||
| 50 | $ 0.84 | |||
| 100 | $ 0.81 | |||
| 250 | $ 0.79 | |||
| 500 | $ 0.77 | |||
| 1000 | $ 0.70 | |||
Description
General part information
2104-632 Series

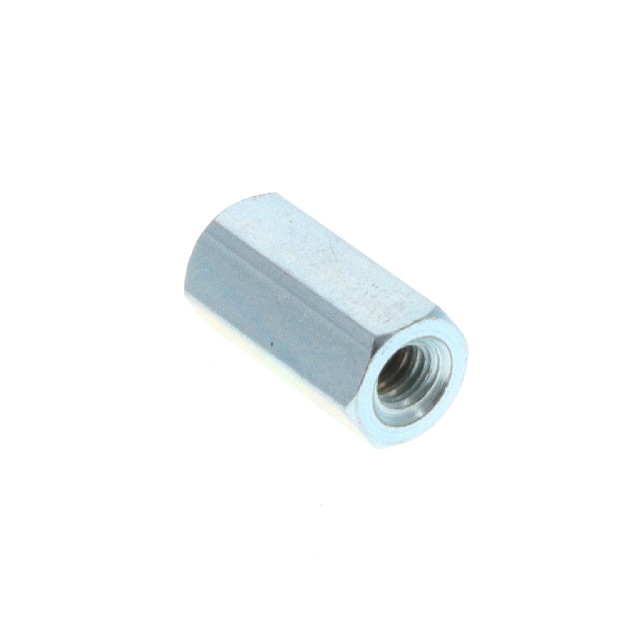

Hex Standoff Threaded #6-32 Steel 0.500" (12.70mm) 1/2" Clear
Documents
Technical documentation and resources
