1593-1-57-15-00-00-03-0
ActiveMill-Max Manufacturing Corp.

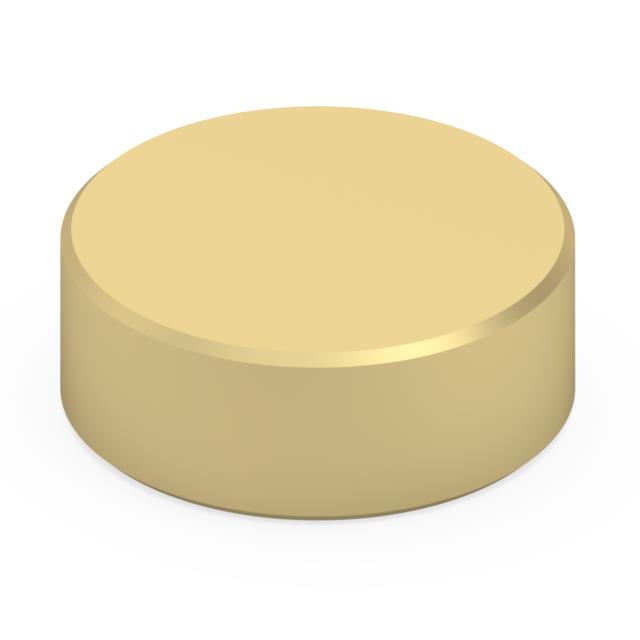

.093" DIAMETER TARGET DISC
Deep-Dive with AI
Search across all available documentation for this part.
1593-1-57-15-00-00-03-0
ActiveMill-Max Manufacturing Corp.
.093" DIAMETER TARGET DISC
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 1593-1-57-15-00-00-03-0 |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Brass Alloy |
| Contact Type | Contact Pad |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pad Layout Dimension [diameter] | 0.093 in |
| Pad Layout Dimension [diameter] | 2.36 mm |
| Pad Layout Dimension [z] | 0.035 in |
| Pad Layout Dimension [z] | 0.89 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.24 | |
| 10 | $ 0.95 | |||
| 25 | $ 0.85 | |||
| 50 | $ 0.79 | |||
| 100 | $ 0.73 | |||
| 250 | $ 0.66 | |||
| 500 | $ 0.61 | |||
| 1000 | $ 0.57 | |||
| 2500 | $ 0.52 | |||
| Digi-Reel® | 1 | $ 1.24 | ||
| 10 | $ 0.95 | |||
| 25 | $ 0.85 | |||
| 50 | $ 0.79 | |||
| 100 | $ 0.73 | |||
| 250 | $ 0.66 | |||
| 500 | $ 0.61 | |||
| 1000 | $ 0.57 | |||
| 2500 | $ 0.52 | |||
| Tape & Reel (TR) | 6000 | $ 0.47 | ||
Description
General part information
1593-1 Series
Contact Spring Surface Mount
Documents
Technical documentation and resources
No documents available
