8-55824-2
ActiveTE Connectivity AMP Connectors
BUTT SPLICE, RED, 22 AWG, 18 AWG, 0.9 MM², POLYOLEFIN
8-55824-2
ActiveTE Connectivity AMP Connectors
BUTT SPLICE, RED, 22 AWG, 18 AWG, 0.9 MM², POLYOLEFIN
Description
General part information
55824 Series

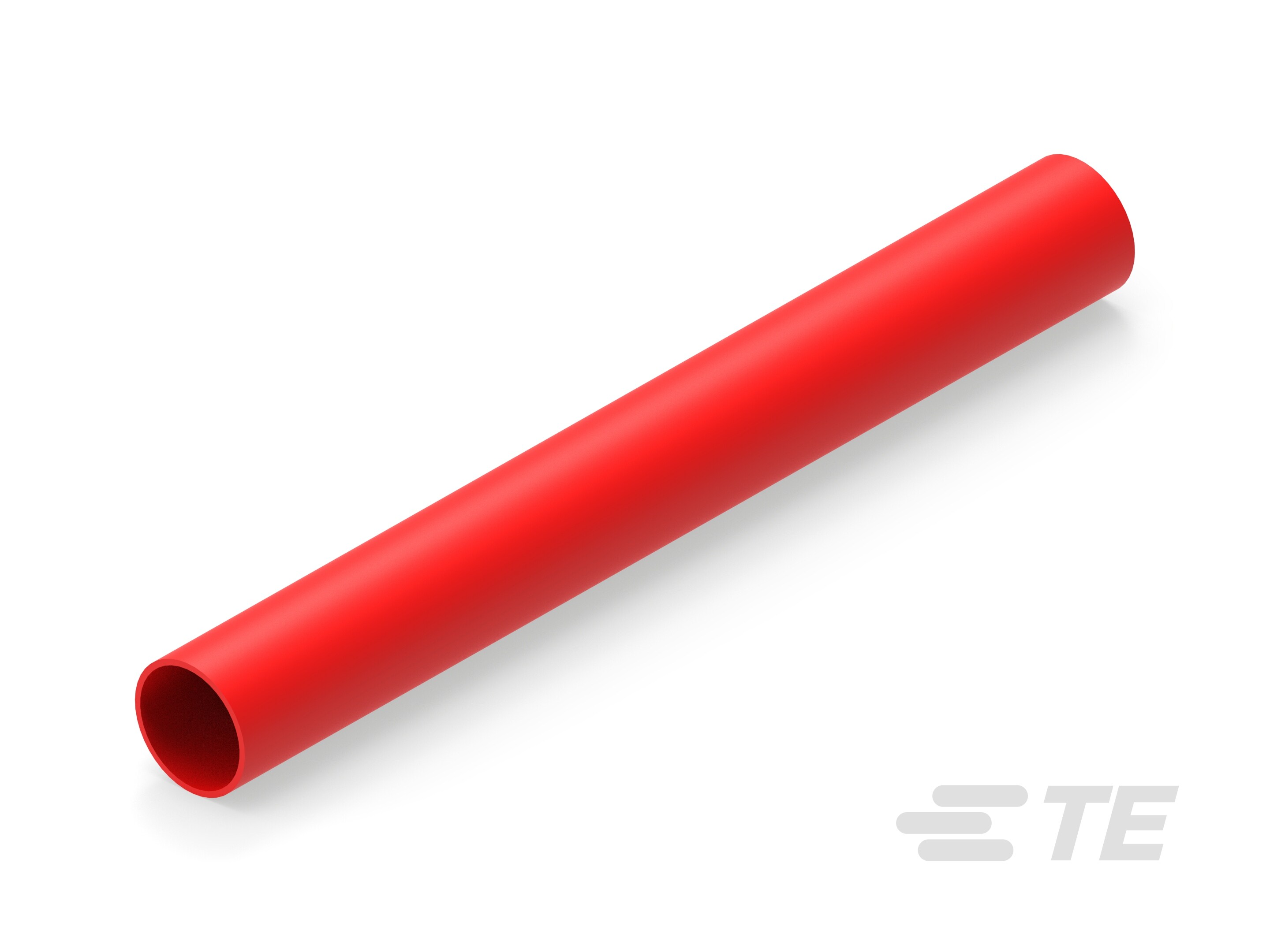

The 8-55824-2 is a heat-shrinkable pre-insulated sealed Butt Splice made of copper with tin-plated finish. It comes with a red polyolefin insulation sleeve. It accepts 22 to 18AWG wire.
Technical Specifications
Parameters and characteristics for this part
| Specification | 8-55824-2 |
|---|---|
| Color | Red |
| Insulation | Fully Insulated Heat Shrink |
| Number of Wire Entries | 2 |
| Terminal Type | Inline, Individual Openings, Butt Splice |
| Termination | Crimp |
| Wire Gauge (AWG) (Max) | 22 AWG |
| Wire Gauge (AWG) (Min) | 18 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
