341-058-520-103

Active

EDAC Inc.

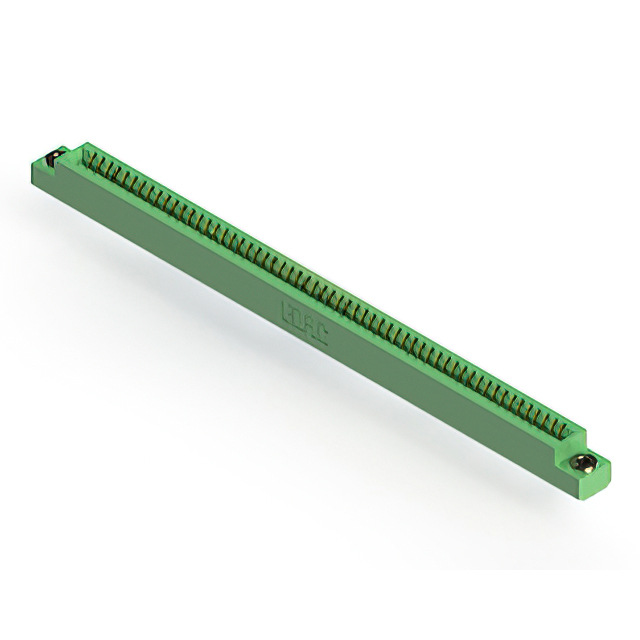

CONN EDGE SINGLE FML 58POS 0.100

341-058-520-103

Active

EDAC Inc.

CONN EDGE SINGLE FML 58POS 0.100

Description Specifications Series Pricing CAD Documents

Description

General part information

341-058 Series

58 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Green

Technical Specifications

Parameters and characteristics for this part

Specification	341-058-520-103

Card Thickness (Max)	0.07 in
Card Thickness (Min)	0.054 in
Card Type	Non Specified, Single Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Ąin
Contact Material	Copper Alloy
Contact Type	Semi Bellows
Flange Feature	Floating Bobbin, Flush Mount
Flange Feature Diameter	0.116 in
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole
Number of Positions	58
Number of Rows	1
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Pitch	0.1 in
Read Out	Single
Termination	Solder
Termination Rows	1 rows

341-058 Series

Part	Gender	Number of Positions	Contact Finish Thickness	Contact Material	Color	Operating Temperature (Min)	Operating Temperature (Max)	Read Out	Termination	Card Type	Contact Finish	Contact Type	Mounting Type	Pitch	Number of Rows	Card Thickness (Min)	Card Thickness (Max)	Termination Rows	Material - Insulation	Features	Flange Feature	Flange Feature Diameter
EDAC Inc. 341-058-520-101	Female	58	10 Ąin	Copper Alloy	Green	-40 °C	105 °C	Single	Solder	Non Specified Single Edge	Gold	Semi Bellows	Through Hole	0.1 in	1	0.054 in	0.07 in	1 rows	Polyester Thermoplastic
EDAC Inc. 341-058-556-207	Female	29 58	10 Ąin	Copper Alloy	Green	-40 °C	105 °C	Dual	Solder	Dual Edge Non Specified	Gold	Semi Bellows	Through Hole	0.1 in	2	0.054 in	0.07 in	2 rows	Polyester Thermoplastic	Card Extender	Flush Mount M3 Threaded Insert Top Opening
EDAC Inc. 341-058-522-103	Female	58	10 Ąin	Copper Alloy	Green	-40 °C	105 °C	Single	Solder	Non Specified Single Edge	Gold	Semi Bellows	Through Hole	0.1 in	1	0.054 in	0.07 in	1 rows	Polyester Thermoplastic		Floating Bobbin Flush Mount	0.116 in
EDAC Inc. 341-058-522-108	Female	58	10 Ąin	Copper Alloy	Green	-40 °C	105 °C	Single	Solder	Non Specified Single Edge	Gold	Semi Bellows	Through Hole	0.1 in	1	0.054 in	0.07 in	1 rows	Polyester Thermoplastic		4-40 Flush Mount Threaded Insert Top Opening
EDAC Inc. 341-058-520-208	Female	29 58	10 Ąin	Copper Alloy	Green	-40 °C	105 °C	Dual	Solder	Dual Edge Non Specified	Gold	Semi Bellows	Through Hole	0.1 in	2	0.054 in	0.07 in	2 rows	Polyester Thermoplastic		4-40 Flush Mount Threaded Insert Top Opening
EDAC Inc. 341-058-521-208	Female	29 58	10 Ąin	Copper Alloy	Green	-40 °C	105 °C	Dual	Solder	Dual Edge Non Specified	Gold	Semi Bellows	Through Hole	0.1 in	2	0.054 in	0.07 in	2 rows	Polyester Thermoplastic		4-40 Flush Mount Threaded Insert Top Opening
EDAC Inc. 341-058-520-103	Female	58	10 Ąin	Copper Alloy	Green	-40 °C	105 °C	Single	Solder	Non Specified Single Edge	Gold	Semi Bellows	Through Hole	0.1 in	1	0.054 in	0.07 in	1 rows	Polyester Thermoplastic		Floating Bobbin Flush Mount	0.116 in
EDAC Inc. 341-058-522-208	Female	29 58	10 Ąin	Copper Alloy	Green	-40 °C	105 °C	Dual	Solder	Dual Edge Non Specified	Gold	Semi Bellows	Through Hole	0.1 in	2	0.054 in	0.07 in	2 rows	Polyester Thermoplastic		4-40 Flush Mount Threaded Insert Top Opening
EDAC Inc. 341-058-522-104	Female	58	10 Ąin	Copper Alloy	Green	-40 °C	105 °C	Single	Solder	Non Specified Single Edge	Gold	Semi Bellows	Through Hole	0.1 in	1	0.054 in	0.07 in	1 rows	Polyester Thermoplastic		Flush Mount Top Opening Unthreaded	0.156 in
EDAC Inc. 341-058-500-201	Female	29 58	10 Ąin	Copper Alloy	Green	-40 °C	105 °C	Dual	Solder Eyelet(s)	Dual Edge Non Specified	Gold	Semi Bellows	Through Hole	0.1 in	2	0.054 in	0.07 in	2 rows	DAP Diallyl Phthalate

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

341-058-520-103 | Datasheet
