1166-12-0

Active

Pomona Electronics

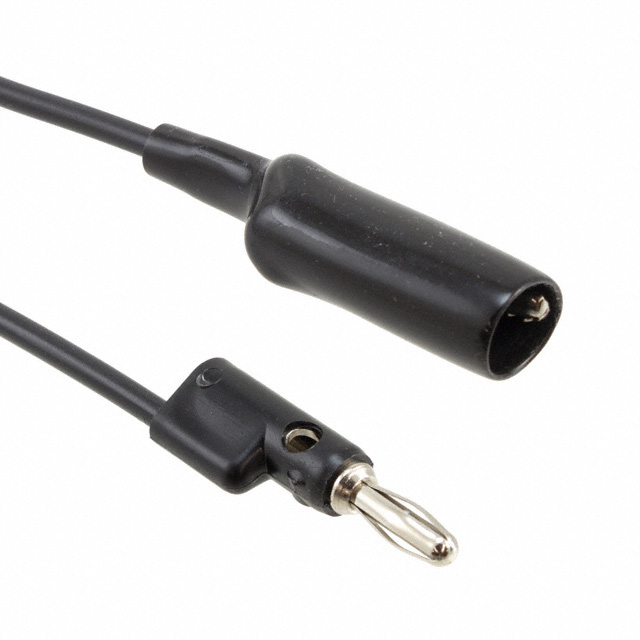

TEST LEAD BANANA TO GATOR 12"

Search across all available documentation for this part.

Active

Pomona Electronics

TEST LEAD BANANA TO GATOR 12"

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

12.0" (304.80mm) Banana Plug, Single, Stackable To Alligator Clip, Insulated Patch Cord 30VAC

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	1166-12-0	1166 Series

1st Connector	Single, Stackable, Banana Plug	Single, Stackable, Banana Plug
2nd Connector	Alligator Clip, Insulated	Alligator Clip, Insulated
Cable Length	12 in	12 - 36 "
Cable Length	304.8 mm	304.8 - 914.4 mm
Configuration	Banana to Alligator	Banana to Alligator
Contents	1 Lead, Black	Red, 1 Lead, Black
Contents	-	1
Current Rating (Amps)	5 A	5 A
Material - Insulation	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)
Stacking Method	Multi-Stacking, Front and Vertical	Multi-Stacking, Front and Vertical
Type	Patch Cord	Patch Cord
Voltage - Rated	30 VAC	30 VAC
Wire Gauge	18 AWG	18 AWG

TEST LEAD BANANA TO GATOR 24"

Part	Cable Length	Cable Length	Stacking Method	Voltage - Rated	2nd Connector	Material - Insulation	Wire Gauge	Configuration	Current Rating (Amps)	Type	Contents [custom]	Contents	1st Connector
Pomona Electronics 1166-24-2	24 "	609.6 mm	Front and Vertical, Multi-Stacking	30 VAC	Alligator Clip, Insulated	Poly-Vinyl Chloride (PVC)	18 AWG	Banana to Alligator	5 A	Patch Cord	1	Red	Banana Plug, Single, Stackable
Pomona Electronics 1166-36-2	36 in	914.4 mm	Front and Vertical, Multi-Stacking	30 VAC	Alligator Clip, Insulated	Poly-Vinyl Chloride (PVC)	18 AWG	Banana to Alligator	5 A	Patch Cord	1	Red	Banana Plug, Single, Stackable
Pomona Electronics 1166-12-2	12 in	304.8 mm	Front and Vertical, Multi-Stacking	30 VAC	Alligator Clip, Insulated	Poly-Vinyl Chloride (PVC)	18 AWG	Banana to Alligator	5 A	Patch Cord	1	Red	Banana Plug, Single, Stackable
Pomona Electronics 1166-12-0	12 in	304.8 mm	Front and Vertical, Multi-Stacking	30 VAC	Alligator Clip, Insulated	Poly-Vinyl Chloride (PVC)	18 AWG	Banana to Alligator	5 A	Patch Cord		1 Lead, Black	Banana Plug, Single, Stackable
Pomona Electronics 1166-36-2#	36 in	914.4 mm	Front and Vertical, Multi-Stacking	30 VAC	Alligator Clip, Insulated	Poly-Vinyl Chloride (PVC)	18 AWG	Banana to Alligator	5 A	Patch Cord	1	Red	Banana Plug, Single, Stackable
