PP-2155TL-M

Active

CUI Devices

CONN DC POWER PL 1 POS SOLDER LUG ST CABLE MOUNT 2 TERMINAL 1 PORT BULK

Search across all available documentation for this part.

Active

CUI Devices

CONN DC POWER PL 1 POS SOLDER LUG ST CABLE MOUNT 2 TERMINAL 1 PORT BULK

Technical Specifications

Parameters and characteristics for this part

Specification	PP-2155TL-M

Actual Diameter	0.083 ", 0.217 "
Actual Diameter	2.1 mm, 5.5 mm
Body Color	Silver, Black
Body Material	Brass
Connector Type	Plug
Contact Material	Brass, Phosphor Bronze
Contact Material - Plating [custom]	Nickel
Features	Cover
Gender	Female
Housing Material	Acrylonitrile Butadiene Styrene (ABS)
Industry Recognized Mating Diameter [diameter]	0.083 in, 0.217 "
Industry Recognized Mating Diameter [diameter]	5.5 mm, 2.1 mm
Insulation Color	Black
Internal Switch(s)	False
Material Flammability Rating	UL94 HB
Mating Length/Depth	0.295 in
Mating Length/Depth	7.5 mm
Mounting Type	Free Hanging (In-Line)
Number of Positions/Contacts [custom]	2
Number of Positions/Contacts [custom]	2
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Shielding	Unshielded
Termination	Solder Eyelet
Voltage - Rated	24 VDC

Part	Insulation Color	Number of Positions/Contacts [custom]	Number of Positions/Contacts [custom]	Features	Shielding	Material Flammability Rating	Gender	Contact Material	Body Material	Body Color	Mating Length/Depth	Mating Length/Depth	Voltage - Rated	Termination	Housing Material	Mounting Type	Actual Diameter	Actual Diameter	Connector Type	Contact Material - Plating [custom]	Industry Recognized Mating Diameter [diameter]	Industry Recognized Mating Diameter [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)
CUI Devices PP-2155TL-M	Black	2	2	Cover	Unshielded	UL94 HB	Female	Brass Phosphor Bronze	Brass	Black Silver	0.295 in	7.5 mm	24 VDC	Solder Eyelet	Acrylonitrile Butadiene Styrene (ABS)	Free Hanging (In-Line)	0.083 " 0.217 "	2.1 mm 5.5 mm	Plug	Nickel	0.083 in 0.217 "	2.1 mm 5.5 mm	70 °C	-25 °C
CUI Devices PP-2155TL-OM	Black	2	2		Unshielded	UL94 V-0	Female	Phosphor Bronze	Brass	Silver	0.295 in	7.5 mm	24 VDC	Solder Eyelet		Free Hanging (In-Line)	0.083 " 0.217 "	2.1 mm 5.5 mm	Plug	Nickel	0.083 in 0.217 "	2.1 mm 5.5 mm	70 °C	-25 °C	7 A
CUI Devices PP-2155TL-OM	Black	2	2		Unshielded	UL94 V-0	Female	Phosphor Bronze	Brass	Silver	0.295 in	7.5 mm	24 VDC	Solder Eyelet		Free Hanging (In-Line)	0.083 " 0.217 "	2.1 mm 5.5 mm	Plug	Nickel	0.083 in 0.217 "	2.1 mm 5.5 mm	70 °C	-25 °C	7 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

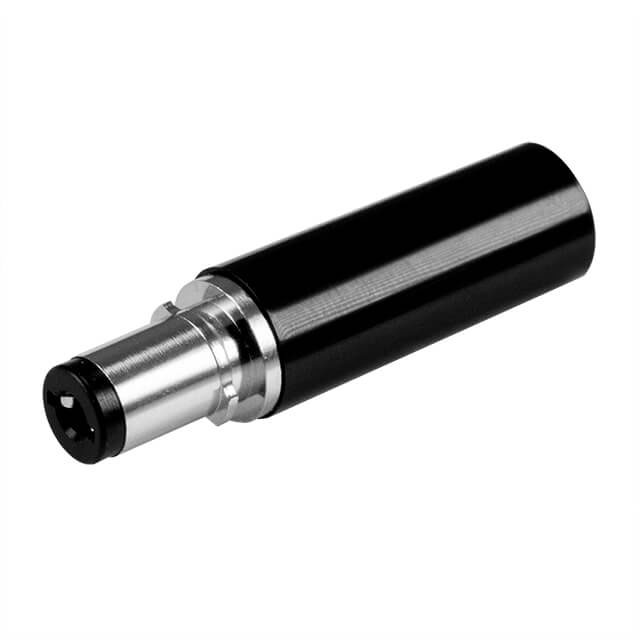

Power Barrel Connector Plug 2.10mm ID (0.083"), 5.50mm OD (0.217") Free Hanging (In-Line)
