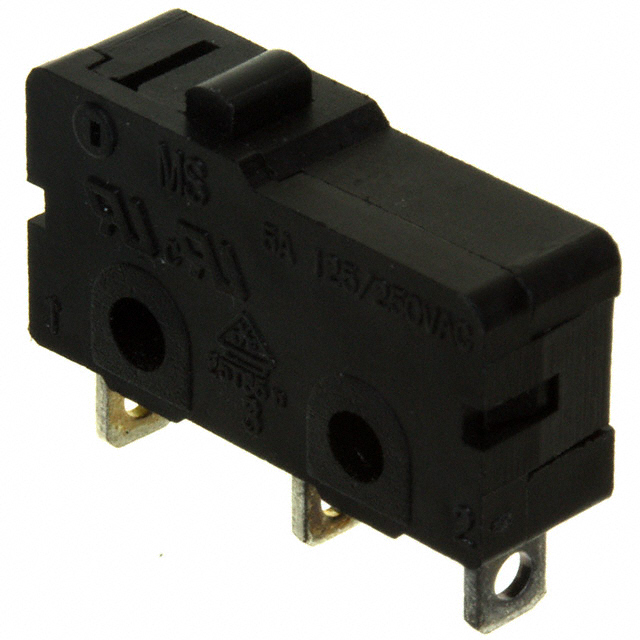

MS0850500F080C1A

Active

E-Switch

SWITCH SNAP ACTION SPDT 5A 125V

Search across all available documentation for this part.

Active

E-Switch

SWITCH SNAP ACTION SPDT 5A 125V

Technical Specifications

Parameters and characteristics for this part

Part	Operating Temperature [Min]	Operating Temperature [Max]	Switch Function	Circuit	Electrical Life	Operating Force	Voltage Rating - AC	Termination Style	Mechanical Life	Actuator Type	Operating Position [custom]	Operating Position [custom]	Current Rating (Amps)	Release Force	Pretravel	Pretravel	Mounting Type
E-Switch MS0850500F080C1A	-25 °C	85 °C	On-Mom	SPDT	50000 Cycles	80 gf	125 V	Quick Connect - 0.110" (2.8mm)	1000000 Cycles	Round (Pin Plunger)	0.335 in	8.5 mm	5 A	25 gf	0.043 "	1.1 mm	Chassis Mount
E-Switch MS0850500F060C1C	-25 °C	85 °C	Off-Mom	SPST-NO	50000 Cycles	60 gf	125 V	Quick Connect - 0.110" (2.8mm)	1000000 Cycles	Round (Pin Plunger)	0.335 in	8.5 mm	5 A	25 gf	0.043 "	1.1 mm	Chassis Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	500	$ 0.80

General part information

Switch SPDT Chassis Mount
