282103

Active

Amphenol RF

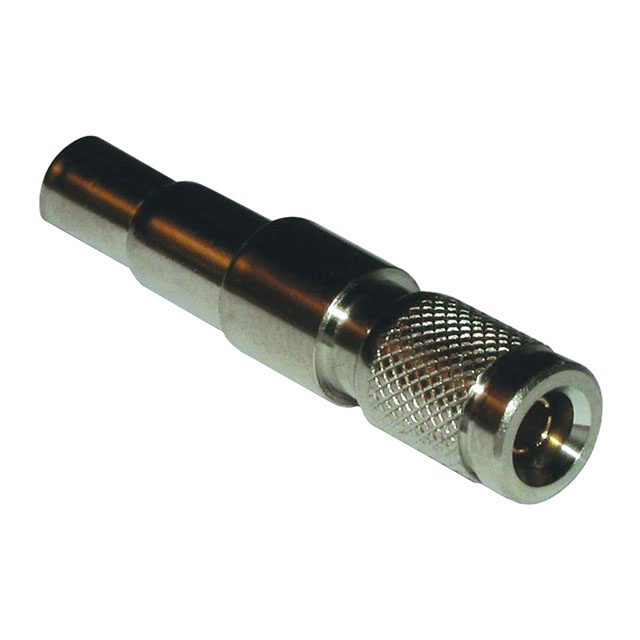

CONN 1.0/2.3 PLG STR 50OHM SOLDR

Search across all available documentation for this part.

Active

Amphenol RF

CONN 1.0/2.3 PLG STR 50OHM SOLDR

Technical Specifications

Parameters and characteristics for this part

Specification	282103

Body Finish	Nickel
Body Material	Brass
Cable Group	188, 188A, 316, LMR-100, M17/119-RG174, RG-174
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	1.0/2.3
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Push-Pull
Frequency - Max [Max]	4 GHz
Housing Color	Silver
Impedance	50 Ohms
Includes	1 Ferrule, 1 Contact, 1 Connector
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-40 °C
Shield Termination	Crimp
Voltage Rating	250 VDC

Part	Fastening Type	Center Contact Material	Mating Cycles	Voltage Rating	Impedance	Connector Type	Center Contact Plating	Housing Color	Includes	Connector Style	Frequency - Max [Max]	Dielectric Material	Shield Termination	Number of Ports	Contact Termination	Cable Group	Mounting Type	Body Material	Body Finish	Operating Temperature [Min]	Operating Temperature [Max]
Amphenol RF 282104	Push-Pull	Beryllium Copper	500	250 VDC	50 Ohms	Female Socket Jack	Gold	Gold	1 Connector 1 Contact 1 Ferrule	1.0/2.3	10 GHz	Polytetrafluoroethylene (PTFE)	Crimp	1	Solder	188 188A 316 LMR-100 M17/119-RG174 RG-174	Free Hanging (In-Line)	Brass	Gold
Amphenol RF 282103	Push-Pull	Brass	500	250 VDC	50 Ohms	Male Pin Plug	Gold	Silver	1 Connector 1 Contact 1 Ferrule	1.0/2.3	4 GHz	Polytetrafluoroethylene (PTFE)	Crimp	1	Solder	188 188A 316 LMR-100 M17/119-RG174 RG-174	Free Hanging (In-Line)	Brass	Nickel	-40 °C	155 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

1.0/2.3 Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Solder
