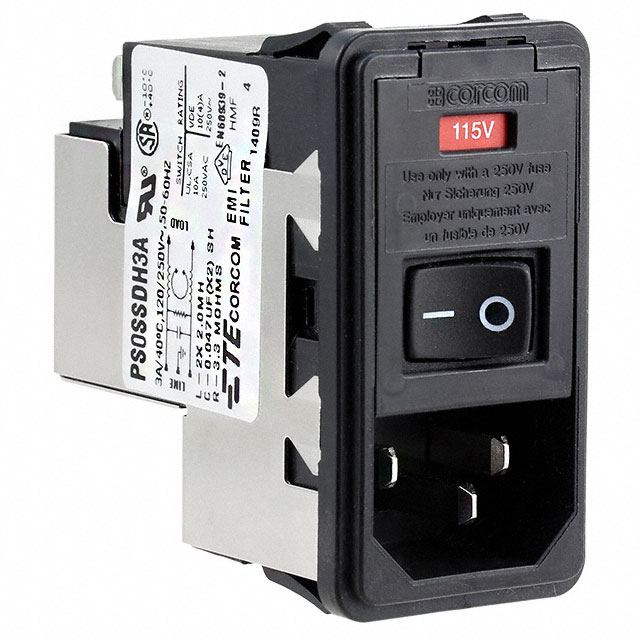

PS0SSDH3A

Active

TE Connectivity Corcom Filters

PWR ENT MOD RCPT IEC320-C14 PNL

Search across all available documentation for this part.

Active

TE Connectivity Corcom Filters

PWR ENT MOD RCPT IEC320-C14 PNL

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	PS0SSDH3A	PS0SSD Series

Accomodates a Fuse	True	True
Approval Agency	UL, VDE, CSA	UL, VDE, CSA
Connector Style	IEC 320-C14	IEC 320-C14
Connector Type	Receptacle, Male Blades - Module	Receptacle, Male Blades - Module
Current Rating - Appliance Inlet	3 A	3 - 10 A
Current Rating - Filter	3 A	3 A
Features	Shielded, Voltage Selector	Shielded, Voltage Selector
Filter Type	Filtered (EMI, RFI) - Commercial, Medical	Filtered (EMI, RFI) - Commercial, Medical, Unfiltered - Commercial
Fuse Holder, Drawer	Fuse Holder, Twin Fused	Fuse Holder, Twin Fused
Mounting Type	Panel Mount, Snap-In	Panel Mount, Snap-In
Panel Cutout Dimensions	Variable Size	Variable Size
Panel Thickness [Max]	2.9 mm	2.11 - 2.9 mm
Panel Thickness [Max]	0.114 in	0.083 - 0.114 in
Panel Thickness [Min]	0.79 mm	0.79 mm
Panel Thickness [Min]	0.031 "	0.031 "
Switch Features	Switch On-Off	Switch On-Off
Termination	0.187 "	0.187 "
Termination	4.7 mm	4.7 mm
Termination	Quick Connect	Quick Connect
Voltage Rating - Appliance Inlet	120 VAC	120 VAC

PWR ENT MOD RCPT IEC320-C14 PNL

Part	Filter Type	Fuse Holder, Drawer	Approval Agency	Switch Features	Accomodates a Fuse	Termination	Termination	Termination	Voltage Rating - Appliance Inlet	Mounting Type	Connector Style	Panel Cutout Dimensions	Current Rating - Filter	Current Rating - Appliance Inlet	Panel Thickness [Max]	Panel Thickness [Max]	Panel Thickness [Min]	Panel Thickness [Min]	Connector Type	Features
TE Connectivity Corcom Filters PS0SSDH3A	Filtered (EMI, RFI) - Commercial, Medical	Fuse Holder, Twin Fused	CSA, UL, VDE	Switch On-Off		0.187 "	4.7 mm	Quick Connect	120 VAC	Panel Mount, Snap-In	IEC 320-C14	Variable Size	3 A	3 A	2.9 mm	0.114 in	0.79 mm	0.031 "	Receptacle, Male Blades - Module	Shielded, Voltage Selector
TE Connectivity Corcom Filters PS0SSD000	Unfiltered - Commercial	Fuse Holder, Twin Fused	CSA, UL, VDE	Switch On-Off		0.187 "	4.7 mm	Quick Connect	120 VAC	Panel Mount, Snap-In	IEC 320-C14	Variable Size		10 A	2.11 mm	0.083 "	0.79 mm	0.031 "	Receptacle, Male Blades - Module	Voltage Selector

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	80	$ 26.40

General part information

Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Snap-In
