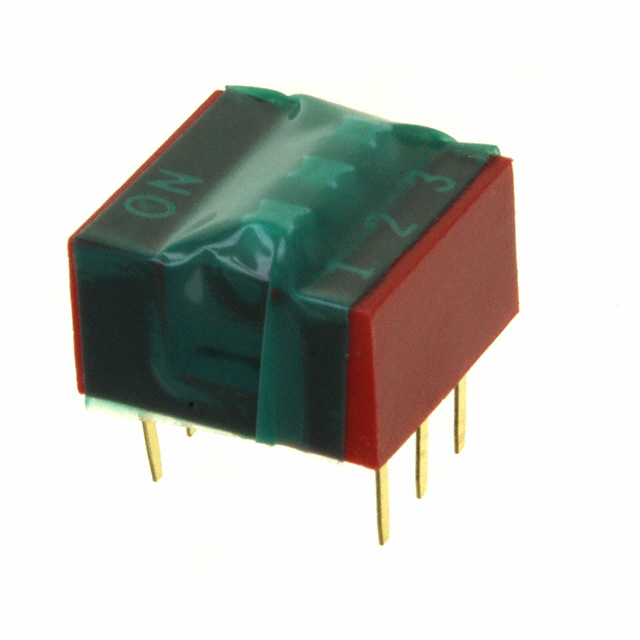

KAS1103ET

Active

E-Switch

SWITCH SLIDE DIP SPST 0.025A 24V

Search across all available documentation for this part.

Active

E-Switch

SWITCH SLIDE DIP SPST 0.025A 24V

Technical Specifications

Parameters and characteristics for this part

Specification	KAS1103ET

Actuator Level	Raised
Actuator Type	Slide (Standard)
Body Material	Polybutylene Terephthalate (PBT), Glass Filled
Circuit	SPST
Contact Finish	Gold
Contact Material	Phosphor Bronze
Current Rating (Amps)	25 mA
Electrical Life	2000 Steps
Features	Tape Seal
Height Above Board	0.275 in
Height Above Board	6.99 mm
Length	8.99 mm
Length	0.354 in
Mechanical Life	2000 Cycles
Mounting Type	Through Hole
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Pitch	Full
Pitch [x]	0.1 in
Pitch [x]	2.54 mm
Termination Style	PC Pin
Voltage Rating	24 VDC
Washable	True

Part	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Type	Termination Style	Height Above Board	Height Above Board	Current Rating (Amps)	Body Material	Pitch [x]	Pitch	Pitch [x]	Circuit	Voltage Rating	Mechanical Life	Mounting Type	Electrical Life	Actuator Level	Contact Material	Contact Finish	Length	Length	Features	Height Above Board
E-Switch KAS1103E	85 °C	-40 °C	Slide (Standard)	PC Pin	0.275 in	6.99 mm	25 mA	Polybutylene Terephthalate (PBT) Glass Filled	0.1 in	Full	2.54 mm	SPST	24 VDC	2000 Cycles	Through Hole	2000 Steps	Raised	Phosphor Bronze	Gold	8.99 mm	0.354 in
E-Switch KAS1103ET	85 °C	-40 °C	Slide (Standard)	PC Pin	0.275 in	6.99 mm	25 mA	Polybutylene Terephthalate (PBT) Glass Filled	0.1 in	Full	2.54 mm	SPST	24 VDC	2000 Cycles	Through Hole	2000 Steps	Raised	Phosphor Bronze	Gold	8.99 mm	0.354 in	Tape Seal
E-Switch KAS1103R	85 °C	-40 °C	Slide (Standard)	PC Pin	6 mm		25 mA	Polybutylene Terephthalate (PBT) Glass Filled	0.1 in	Full	2.54 mm	SPST	24 VDC	2000 Cycles	Through Hole	2000 Steps	Flush Recessed	Phosphor Bronze	Gold	8.99 mm	0.354 in		0.236 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Dip Switch SPST 3 Position Through Hole Slide (Standard) Actuator 25mA 24VDC
