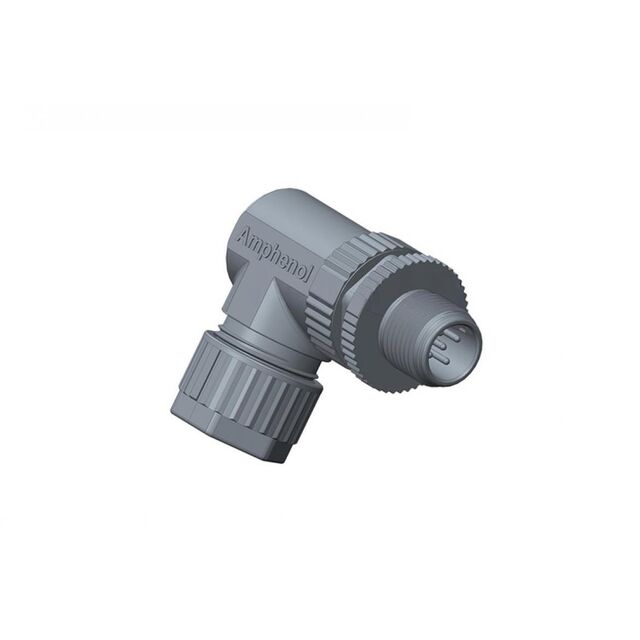

MSBP-05BMMB-SR7001

Active

Amphenol LTW

M12 CONN SCREW IN 90

Search across all available documentation for this part.

Active

Amphenol LTW

M12 CONN SCREW IN 90

Technical Specifications

Parameters and characteristics for this part

Specification	MSBP-05BMMB-SR7001

Backshell Material, Plating	Polyamide (PA), Nylon
Cable Opening [Max] [diameter]	0.276 in
Cable Opening [Max] [diameter]	7 mm
Cable Opening [Min] [diameter]	4 mm
Cable Opening [Min] [diameter]	0.157 in
Color	Black
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	4 A
Features	Backshell
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Nylon, Polyamide (PA)
Mounting Type	Free Hanging (In-Line), Right Angle
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	B
Primary Material	Plastic
Shell Size - Insert	M12-5
Shielding	Unshielded
Termination	Screw
Voltage Rating	60 VDC

Part	Termination	Mounting Type	Ingress Protection	Features	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Insert Material	Primary Material	Orientation	Backshell Material, Plating	Color	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Shell Size - Insert	Connector Type	Contact Material	Contact Finish - Mating	Shielding	Current Rating (Amps)
Amphenol LTW MSBP-05BMMB-SR7001	Screw	Free Hanging (In-Line) Right Angle	IP67 - Dust Tight Waterproof	Backshell	-40 °C	105 ░C	60 VDC	Nylon Polyamide (PA)	Plastic	B	Nylon Polyamide (PA)	Black	0.276 in	4 mm	0.157 in	7 mm	M12-5	Male Pins Receptacle	Copper Alloy	Gold	Unshielded	4 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5 Position Circular Connector Receptacle, Male Pins Screw
