Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 3.86 | |
| 10 | $ 3.76 | |||
| 25 | $ 3.70 | |||
| 50 | $ 3.65 | |||
| 100 | $ 3.60 | |||
| 250 | $ 3.55 | |||
| 500 | $ 3.45 | |||
| 1000 | $ 2.94 | |||
General part information

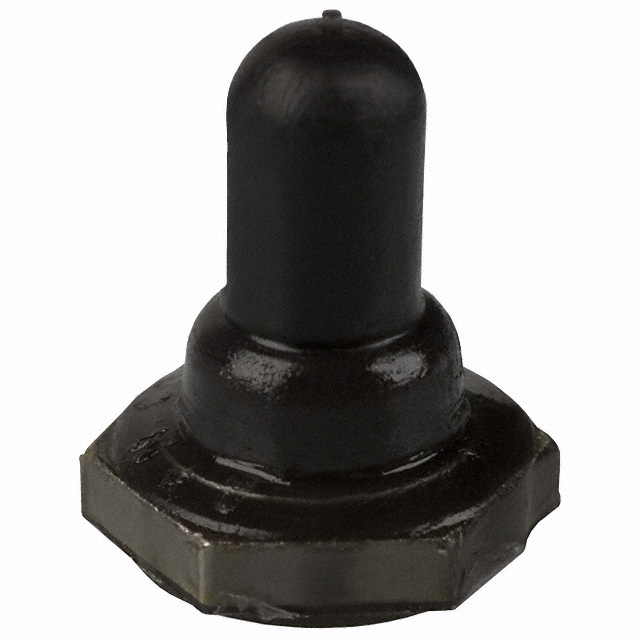

TOGGLE FULL BOOT BLACK
Technical documentation and resources
Parameters and characteristics commom to parts in this series
| Specification | N5030L 17 | N5030 Series |
|---|---|---|
| Actuator Diameter [diameter] | 1.57 mm | 1.57 - 2.64 mm |
| Actuator Diameter [diameter] | 0.062 in | 0.062 - 0.104 in |
| Color | Black | Gray, Black, Red |
| Features | - | Shielded |
| For Use With/Related Products | Multiple Series | Multiple Series |
| Ingress Protection | IP66/IP68 | IP66/IP68 |
| Material | Silicone Rubber | Silicone Rubber |
| Mounting Feature | Front of Panel | Front of Panel |
| Operating Temperature [Max] | 204 °C | 204 °C |
| Operating Temperature [Min] | -70 °C | -70 °C |
| Size / Dimension [z] | 0.5 in | 0.422 - 0.594 in |
| Size / Dimension [z] | 12.7 mm | 10.72 - 15.09 mm |
| Thread Size | 1/4-40 NS-2B | 1/4-40 NS-2B |
| Type | Full Boot, Toggle | Full Boot, Toggle |
SWITCH SEALING BOOT, TOGGLE SWITCHES
| Part | Actuator Diameter [diameter] | Actuator Diameter [diameter] | Size / Dimension [z] | Size / Dimension [z] | Type | Mounting Feature | Features | Thread Size | Ingress Protection | Operating Temperature [Max] | Operating Temperature [Min] | For Use With/Related Products | Material | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
APM HEXSEAL N5030S RFI | 1.57 mm | 0.062 in | 15.09 mm | 0.594 in | Full Boot, Toggle | Front of Panel | Shielded | 1/4-40 NS-2B | IP66/IP68 | 204 °C | -70 °C | Multiple Series | Silicone Rubber | Gray |
APM HEXSEAL N5030L 17 | 1.57 mm | 0.062 in | 12.7 mm | 0.5 in | Full Boot, Toggle | Front of Panel | 1/4-40 NS-2B | IP66/IP68 | 204 °C | -70 °C | Multiple Series | Silicone Rubber | Black | |
APM HEXSEAL N5030L 1 | 1.57 mm | 0.062 in | 12.7 mm | 0.5 in | Full Boot, Toggle | Front of Panel | 1/4-40 NS-2B | IP66/IP68 | 204 °C | -70 °C | Multiple Series | Silicone Rubber | Gray | |
APM HEXSEAL N5030L 53 | 1.57 mm | 0.062 in | 12.7 mm | 0.5 in | Full Boot, Toggle | Front of Panel | 1/4-40 NS-2B | IP66/IP68 | 204 °C | -70 °C | Multiple Series | Silicone Rubber | Red | |
APM HEXSEAL N5030S 1 | 1.57 mm | 0.062 in | 15.09 mm | 0.594 in | Full Boot, Toggle | Front of Panel | 1/4-40 NS-2B | IP66/IP68 | 204 °C | -70 °C | Multiple Series | Silicone Rubber | Gray | |
APM HEXSEAL N5030L RFI 2 | 1.57 mm | 0.062 in | 12.7 mm | 0.5 in | Full Boot, Toggle | Front of Panel | Shielded | 1/4-40 NS-2B | IP66/IP68 | 204 °C | -70 °C | Multiple Series | Silicone Rubber | Gray |
APM HEXSEAL N5030 1 | 2.64 mm | 0.104 in | 10.72 mm | 0.422 in | Full Boot, Toggle | Front of Panel | 1/4-40 NS-2B | IP66/IP68 | 204 °C | -70 °C | Multiple Series | Silicone Rubber | Gray |
