28556.4

Active

Conta-Clip, Inc.

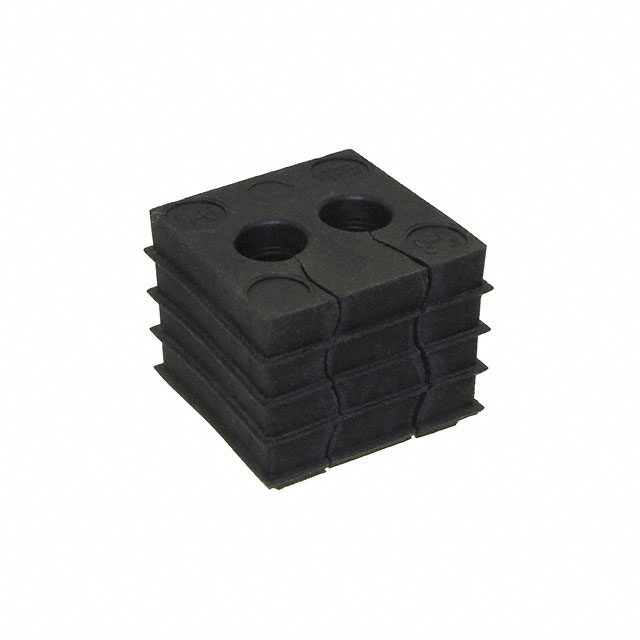

FRAME GROMMET SPLIT TPE BLACK

Search across all available documentation for this part.

Active

Conta-Clip, Inc.

FRAME GROMMET SPLIT TPE BLACK

Technical Specifications

Parameters and characteristics for this part

Specification	28556.4

Bushing, Grommet Type	Frame Grommet, Split
Color	Black
Diameter - Inside [Max] [diameter]	0.236 in, 6 mm
Diameter - Inside [Min] [diameter]	0.197 in, 5 mm
Features	IP66 - Dust Tight, Water Resistant
For Use With/Related Products	2 Cable Openings
Material	Thermoplastic Elastomer (TPE)
Material Flammability Rating	UL94 HB
Panel Cutout Dimensions [x]	20.3 mm
Panel Cutout Dimensions [x]	0.799 in

Part	Material	Material Flammability Rating	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [x]	For Use With/Related Products	Features	Diameter - Inside [Min] [diameter]	Diameter - Inside [Max] [diameter]	Color	Bushing, Grommet Type
Conta-Clip, Inc. 28556.4	Thermoplastic Elastomer (TPE)	UL94 HB	20.3 mm	0.799 in	2 Cable Openings	IP66 - Dust Tight Water Resistant	0.197 in 5 mm	0.236 in 6 mm	Black	Frame Grommet Split

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Square - 0.799" (20.30mm) Frame Grommet, Split 0.197" ~ 0.236" (5.00mm ~ 6.00mm) Black
