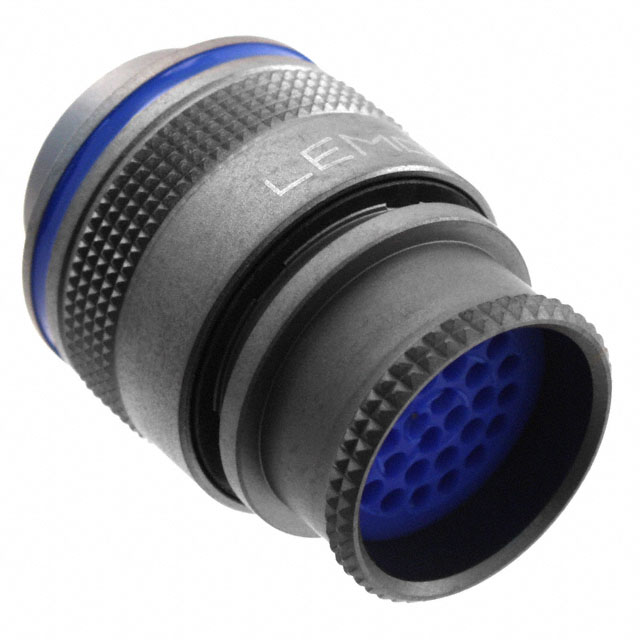

FMN.3M.330.XLCT

Active

LEMO

CONN PLUG MALE 30POS GOLD CRIMP

Search across all available documentation for this part.

Active

LEMO

CONN PLUG MALE 30POS GOLD CRIMP

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	FMN.3M.330.XLCT	FMN.3M Series

Applications	Military, Aerospace, Automotive, Aviation	Military, Aerospace, Automotive, Aviation
Cable Opening [custom]	0.591 in	0.591 in
Cable Opening [custom]	15 mm	15 mm
Color	Gray	Gray
Connector Type	Plug, Male Pins	Plug, Male Pins
Contact Finish - Mating	Gold	Gold
Contact Finish Thickness - Mating	1 µm	1 µm
Contact Finish Thickness - Mating	39.4 µin	39.4 µin
Contact Material	Brass	Brass
Current Rating (Amps)	3.5 A	3.5 A
Features	Coupling Nut	Coupling Nut
Ingress Protection	IP68 - Dust Tight, Waterproof	IP68 - Dust Tight, Waterproof
Insert Material	Polyetheretherketone (PEEK)	Polyetheretherketone (PEEK)
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	30	30
Operating Temperature [Max]	200 °C	200 °C
Operating Temperature [Min]	-55 °C	-55 °C
Orientation	N	N
Primary Material	Metal	Metal
Shell Finish	Nickel	Nickel
Shell Material	Aluminum Alloy	Aluminum Alloy
Shell Size - Insert	330	330
Shielding	Shielded	Shielded
Termination	Crimp	Crimp

CONN PLUG MALE 30POS GOLD CRIMP

Part	Color	Shielding	Operating Temperature [Min]	Operating Temperature [Max]	Cable Opening [custom]	Cable Opening [custom]	Contact Finish - Mating	Features	Shell Material	Termination	Current Rating (Amps)	Applications	Primary Material	Contact Material	Insert Material	Shell Size - Insert	Connector Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions	Mounting Type	Ingress Protection	Orientation	Shell Finish
LEMO FMN.3M.330.XLCT	Gray	Shielded	-55 °C	200 °C	0.591 in	15 mm	Gold	Coupling Nut	Aluminum Alloy	Crimp	3.5 A	Aerospace, Automotive, Aviation, Military	Metal	Brass	Polyetheretherketone (PEEK)	330	Male Pins, Plug	1 µm	39.4 µin	30	Free Hanging (In-Line)	IP68 - Dust Tight, Waterproof	N	Nickel
LEMO FMN.3M.330.XLC	Gray	Shielded	-55 °C	200 °C	0.591 in	15 mm	Gold	Coupling Nut	Aluminum Alloy	Crimp	3.5 A	Aerospace, Automotive, Aviation, Military	Metal	Brass	Polyetheretherketone (PEEK)	330	Male Pins, Plug	1 µm	39.4 µin	30	Free Hanging (In-Line)	IP68 - Dust Tight, Waterproof	N	Nickel

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

30 Position Circular Connector Plug, Male Pins Crimp
