A806CHNF

Active

Hoffman Enclosures, Inc.

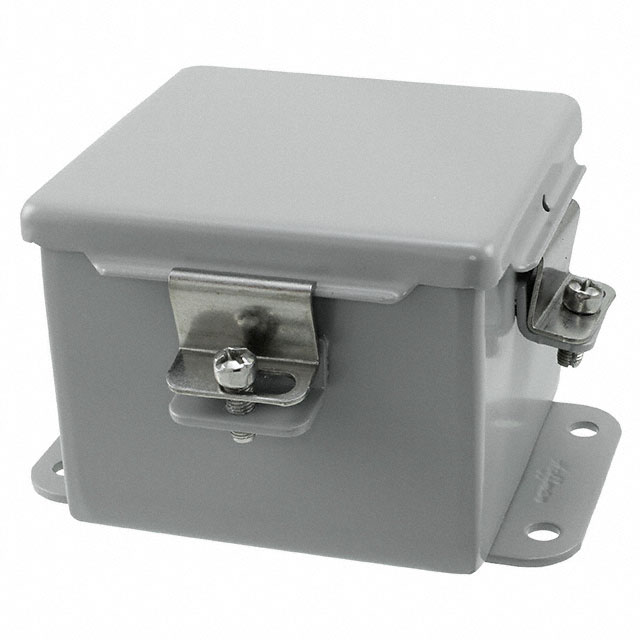

JUNCTION BOX STL 7.99"L X 5.98"W

Search across all available documentation for this part.

Active

Hoffman Enclosures, Inc.

JUNCTION BOX STL 7.99"L X 5.98"W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Junction Box Metal, Steel Gray Hinged Door, Lid 7.992" L x 5.984" W (203.00mm x 152.00mm) X 3.504" (89.00mm)

Technical documentation and resources

Specification	A806CHNF	A806 Series

Area (L x W)	308 cm˛	308 cm˛
Area (L x W)	47.7 in˛	47.7 in˛
Color	Gray	Gray
Container Type	Junction Box	Junction Box
Design	Hinged Door, Lid	Hinged Door, Lid, Cover Included
Features	Wall Mount, Stainless Steel Hinges	Wall Mount, Sealing Gasket, Latches, Stainless Steel Hinges
Height [z]	3.504 in	3.504 in
Height [z]	89 mm	89 mm
Material	Metal, Steel	Metal, Steel
Ratings	-	NEMA 4, IP66, UL-508A, 12
Size / Dimension [x]	7.992 in, 203 mm	7.992 - 203 in
Size / Dimension [y]	5.984 in, 152 mm	5.984 - 152 in
Thickness	14 Gauge	14 Gauge
Weight	5.6 lbs	5.4 - 5.6 lbs
Weight	2.5 kg	2.4 - 2.5 kg

Part	Material	Area (L x W)	Area (L x W)	Height [z]	Height [z]	Container Type	Design	Size / Dimension [x]	Size / Dimension [y]	Features	Ratings	Color	Thickness	Weight	Weight
Hoffman Enclosures, Inc. A806CHFL	Metal, Steel	308 cm˛	47.7 in˛	3.504 in	89 mm	Junction Box	Hinged Door, Lid	7.992 in, 203 mm	5.984 in, 152 mm	Latches, Sealing Gasket, Wall Mount	12, IP66, NEMA 4, UL-508A	Gray	14 Gauge	5.4 lbs	2.4 kg
Hoffman Enclosures, Inc. A806NF	Metal, Steel	308 cm˛	47.7 in˛	3.504 in	89 mm	Junction Box	Cover Included	7.992 in, 203 mm	5.984 in, 152 mm	Sealing Gasket, Wall Mount		Gray	14 Gauge
Hoffman Enclosures, Inc. A806CHNF	Metal, Steel	308 cm˛	47.7 in˛	3.504 in	89 mm	Junction Box	Hinged Door, Lid	7.992 in, 203 mm	5.984 in, 152 mm	Stainless Steel Hinges, Wall Mount		Gray	14 Gauge	5.6 lbs	2.5 kg
