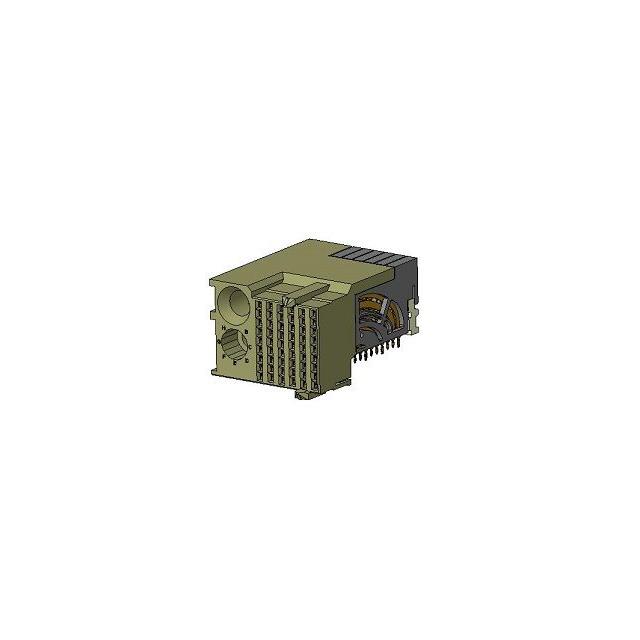

Specification	10135261-10YLF

Color	Natural
Connector Style	Guide Right, Airmax VS2™
Connector Type	Receptacle, Female Sockets
Connector Usage	Backplane
Contact Finish	Gold
Current Rating (Per Contact)	500 mA
Material Flammability Rating	UL94 V-0
Mounting Type	Right Angle, Through Hole, Board Edge
Number of Columns	6
Number of Positions	54
Number of Positions Loaded	All
Number of Rows	9
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-55 °C
Pitch	0.079 in
Termination	Press-Fit
Voltage Rating	30 V
Voltage Rating (Type)	DC, AC

10135261 Series

Part	Material Flammability Rating	Current Rating (Per Contact)	Operating Temperature (Min)	Operating Temperature (Max)	Voltage Rating	Voltage Rating (Type)	Color	Number of Rows	Contact Finish	Mounting Type	Connector Usage	Number of Positions Loaded	Number of Columns	Connector Style	Connector Type	Termination	Pitch	Number of Positions	Current Rating	Features
Amphenol ICC (FCI) 10135261-10YLF	UL94 V-0	500 mA	-55 °C	85 °C	30 V	AC DC	Natural	9	Gold	Board Edge Right Angle Through Hole	Backplane	All	6	Airmax VS2™ Guide Right	Female Sockets Receptacle	Press-Fit	0.079 in	54
Amphenol ICC (FCI) 10135261-10JLF	UL94 V-0	500 mA	-55 °C	85 °C	30 V	AC DC	Natural	9	Gold	Board Edge Right Angle Through Hole	Backplane	All	6	Airmax VS2™ Guide Left	Female Sockets Receptacle	Press-Fit	0.079 in	54
Amphenol ICC (FCI) 10135261-10PLF
Amphenol ICC (FCI) 10135261-10ALF	UL94 V-0						Black	9		Board Edge Right Angle Through Hole	Daughtercard	All	6	High Speed	Female Sockets Receptacle	Press-Fit	0.079 in	54	0.5 A	Polarizing Key
