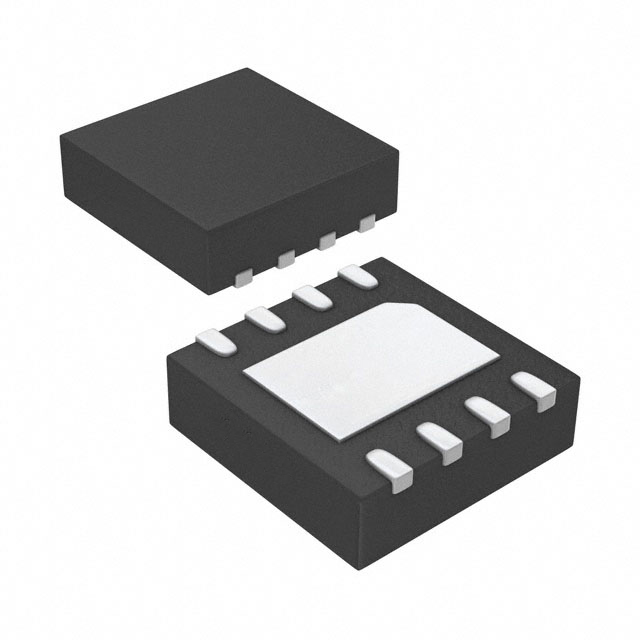

RTQ2521GQW

Active

Richtek USA Inc.

IC REG LIN POS ADJ 1.2A WDFN-8

Search across all available documentation for this part.

Active

Richtek USA Inc.

IC REG LIN POS ADJ 1.2A WDFN-8

Technical Specifications

Parameters and characteristics for this part

Specification	RTQ2521GQW

Control Features	Soft Start, Current Limit, Enable, Power Good
Current - Output	1.2 A
Current - Quiescent (Iq)	4 mA
Current - Supply (Max) [Max]	5 mA
Mounting Type	Surface Mount
Number of Regulators	1
Operating Temperature [Max]	125 ¯C
Operating Temperature [Min]	-40 °C
Output Configuration	Positive
Output Type	Adjustable
Package / Case	8-WFDFN Exposed Pad
Protection Features	Short Circuit, Over Current, Over Temperature, Reverse Current, Under Voltage Lockout (UVLO)
PSRR [Max]	60 dB
PSRR [Min]	38 dB
Supplier Device Package	8-WDFN-EL, 3x3
Voltage - Input (Max) [Max]	6.5 V
Voltage - Output (Max) [Max]	5.5 V
Voltage - Output (Min/Fixed)	0.8 V
Voltage Dropout (Max) [Max]	0.075 V

Part	Current - Quiescent (Iq)	Supplier Device Package	Control Features	Voltage - Output (Max) [Max]	Output Configuration	Mounting Type	Package / Case	Voltage - Output (Min/Fixed)	Current - Supply (Max) [Max]	PSRR [Min]	PSRR [Max]	Voltage - Input (Max) [Max]	Protection Features	Voltage Dropout (Max) [Max]	Output Type	Operating Temperature [Min]	Operating Temperature [Max]	Current - Output	Number of Regulators
Richtek USA Inc. RTQ2521GQW	4 mA	3x3 8-WDFN-EL	Current Limit Enable Power Good Soft Start	5.5 V	Positive	Surface Mount	8-WFDFN Exposed Pad	0.8 V	5 mA	38 dB	60 dB	6.5 V	Over Current Over Temperature Reverse Current Short Circuit Under Voltage Lockout (UVLO)	0.075 V	Adjustable	-40 °C	125 ¯C	1.2 A	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Linear Voltage Regulator IC Positive Adjustable 1 Output 1.2A 8-WDFN-EL (3x3)
