112291

Active

McGill Microwave Systems

CONNECTOR: BNC; SOCKET; FEMALE; STRAIGHT; 75Ω; SOLDERING; PTFE

112291

Active

McGill Microwave Systems

CONNECTOR: BNC; SOCKET; FEMALE; STRAIGHT; 75Ω; SOLDERING; PTFE

Description Specifications Series Pricing CAD Documents

Description

General part information

1122 Series

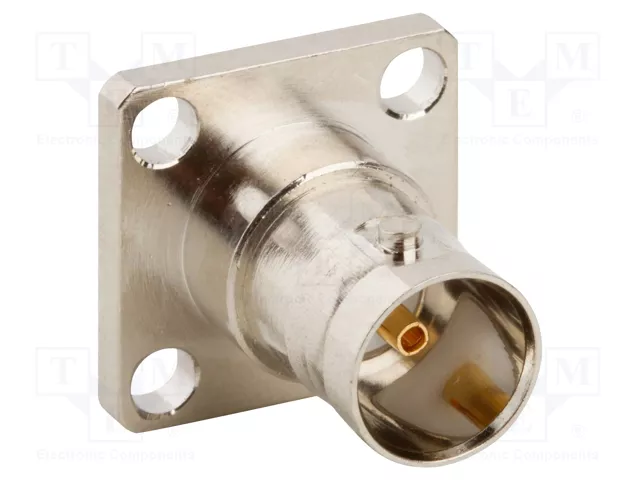

BNC Connector Jack, Female Socket 75 Ohms Panel Mount Solder Cup

Technical Specifications

Parameters and characteristics for this part

Specification	112291

Body Finish	Nickel
Body Material	Brass
Center Contact Material	Phosphor Bronze
Center Contact Plating	Gold
Connector Style	BNC
Connector Type	Jack, Female Socket
Contact Termination	Solder Cup
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Features	Extended Insulation
Frequency - Max	4 GHz
Housing Color	Silver
Impedance	75 Ohm
Mating Cycles	500 cycles
Mounting Feature	Flange
Mounting Type	Panel Mount
Number of Ports	1
Shield Termination	Solder
Voltage Rating	500 V

1122 Series

Part	Fastening Type	Cable Group	Connector Style	Center Contact Material	Contact Termination	Connector Type	Mounting Type	Housing Color	Mounting Feature	Impedance	Frequency - Max	Number of Ports	Shield Termination	Body Finish	Body Material	Dielectric Material	Voltage Rating	Center Contact Plating	Mating Cycles	Includes	Includes Total Count	Features	Insertion Loss	Operating Temperature (Min)	Operating Temperature (Max)
McGill Microwave Systems 112289	Bayonet Lock	179A 179B 187 187A Belden 9221 M17/94-RG179 RG-179	BNC	Phosphor Bronze	Crimp	Female Socket Jack	Panel Mount	Silver	Flange	75 Ohm	4 GHz	1	Crimp	Nickel	Brass	Polyoxymethylene (POM) Acetal	500 V	Gold	500 cycles	Connector Contact Ferrule Sleeve	4 pcs
McGill Microwave Systems 112253	Bayonet Lock	179A 179B 187 187A Belden 9221 M17/94-RG179 RG-179	BNC	Phosphor Bronze	Crimp	Female Socket Jack	Panel Mount	Silver	Bulkhead Front Side Nut	75 Ohm	4 GHz	1	Crimp	Nickel	Zinc Die Cast	Polytetrafluoroethylene (PTFE)	500 V	Gold	500 cycles	Connector Contact Ferrule Lockwasher Nut Sleeve	6 pcs	Isolated
McGill Microwave Systems 112202	Bayonet Lock	141 303 58A 58B 58C 9907 Belden B7806A LMR-195 RG-58	BNC	Phosphor Bronze	Crimp	Female Socket Jack	Panel Mount	Silver	Bulkhead Front Side Nut	50 Ohm	4 GHz	1	Crimp	Nickel	Brass	Polytetrafluoroethylene (PTFE)	500 V	Gold	500 cycles	Connector Contact Ferrule Lockwasher Nut	5 pcs		0.2 dB
McGill Microwave Systems 112205	Bayonet Lock	140 210 59B 62 8263 8279 9209 Belden 8241 RG-59	BNC	Phosphor Bronze	Crimp	Female Socket Jack	Panel Mount	Silver	Bulkhead Front Side Nut	75 Ohm	4 GHz	1	Crimp	Nickel	Brass	Polytetrafluoroethylene (PTFE)	500 V	Gold	500 cycles	Connector Contact Ferrule Lockwasher Nut	5 pcs
McGill Microwave Systems 112234	Bayonet Lock	188 188A 316 LMR-100 M17/119-RG174 RG-174	BNC	Phosphor Bronze	Crimp	Female Socket Jack	Panel Mount	Silver	Bulkhead Front Side Nut	50 Ohm	4 GHz	1	Crimp	Nickel	Brass	Polyoxymethylene (POM) Acetal	500 V	Gold	500 cycles	Connector Contact Ferrule Gasket Lockwasher Nut Sleeve	7 pcs		0.2 dB
McGill Microwave Systems 112239	Bayonet Lock	140 210 59B 62 8263 8279 9209 Belden 8241 RG-59	BNC	Phosphor Bronze	Solder	Female Socket Jack	Panel Mount	Silver	Bulkhead Front Side Nut	75 Ohm	4 GHz	1	Crimp	Nickel	Brass	Polytetrafluoroethylene (PTFE)		Gold	500 cycles			Isolated		-65 °C	165 °C
McGill Microwave Systems 112291	Bayonet Lock		BNC	Phosphor Bronze	Solder Cup	Female Socket Jack	Panel Mount	Silver	Flange	75 Ohm	4 GHz	1	Solder	Nickel	Brass	Polytetrafluoroethylene (PTFE)	500 V	Gold	500 cycles			Extended Insulation

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

112291.pdf
