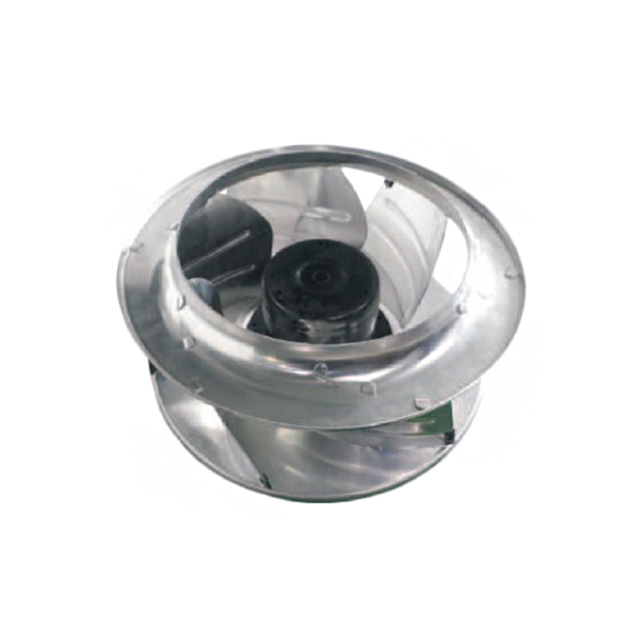

MSI3116H48B1+7-BBR
ActiveMechatronics Bearing Group
FAN IMP MTRZD 315X161.0MM 48VDC
Deep-Dive with AI
Search across all available documentation for this part.
MSI3116H48B1+7-BBR
ActiveMechatronics Bearing Group
FAN IMP MTRZD 315X161.0MM 48VDC
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MSI3116H48B1+7-BBR |
|---|---|
| Air Flow | 46.9 m³/min |
| Air Flow | 1675 CFM |
| Approval Agency | CE, cUL, TUV, UL |
| Bearing Type | Ball |
| Current Rating (Amps) | 8.8 A |
| Fan Type | Motorized Impellers |
| Features | Speed Sensor (Tach), Auto Restart, Voltage Control |
| Material - Blade | Aluminum |
| Noise | 76 dB(A) |
| RPM | 2100 RPM |
| Size / Dimension [diameter] | 315 mm Dia |
| Static Pressure | 784.7 Pa |
| Static Pressure | 3.15 in H2O |
| Termination | 3 Wire Leads |
| Voltage - Rated [custom] | 48 VDC |
| Weight | 6.6 lbs |
| Weight | 3 kg |
| Width [y] | 161 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 331.85 | |
| 10 | $ 305.65 | |||
| 25 | $ 286.00 | |||
Description
General part information
MSI3116 Series
Fan Motorized Impellers 48VDC Round - 315mm Dia Ball 1675.0 CFM (46.90m³/min) 3 Wire Leads
