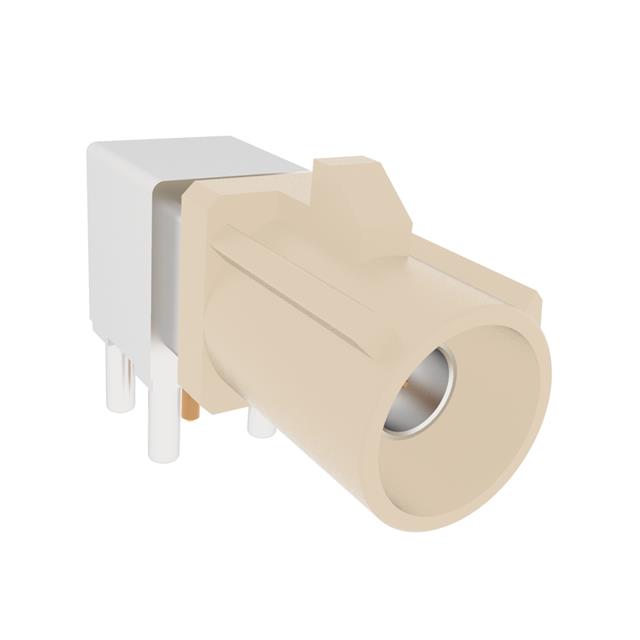

2FA1-NBRP-PCB-6

Active

McGill Microwave Systems

FAKRA GEN 2 PCB THROUGH HOLE RIG

2FA1-NBRP-PCB-6

Active

McGill Microwave Systems

FAKRA GEN 2 PCB THROUGH HOLE RIG

Description Specifications Series Pricing CAD Documents

Description

General part information

2FA1 Series

SMB, Fakra Connector Plug, Male Pin 50 Ohms Through Hole, Right Angle Solder

Technical Specifications

Parameters and characteristics for this part

Specification	2FA1-NBRP-PCB-6

Body Finish	Tin
Body Material	Zinc Die Cast
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	Fakra, SMB
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Locking Ramp
Features	Code B
Frequency - Max	4 GHz
Housing Color	Cream
Impedance	50 Ohm
Mating Cycles	100 cycles
Mounting Type	Through Hole, Right Angle
Number of Ports	1
Operating Temperature (Max)	165 °C
Operating Temperature (Min)	-65 °C
Shield Termination	Solder

2FA1 Series

Part	Cable Group	Impedance	Shield Termination	Number of Ports	Connector Style	Features	Housing Color	Contact Termination	Center Contact Material	Mounting Type	Connector Type	Fastening Type	Frequency - Max	Operating Temperature (Max)	Operating Temperature (Min)	Mating Cycles	Dielectric Material	Body Finish	Includes Total Count	Includes	Insertion Loss	Body Material	Center Contact Plating	Features - Code
McGill Microwave Systems 2FA1-NBSJ-C04-0	141 303 58A 58B 58C 9907 Belden B7806A LMR-195 RG-58	50 Ohm	Crimp	1	Fakra SMB	Code B	Cream	Crimp	Phosphor Bronze	Free Hanging (In-Line)	Female Socket Jack	Latch Lock	6000 MHz	100 °C	-40 °C	100 cycles	Polytetrafluoroethylene (PTFE)	Nickel	3 pcs	Connector Contact Ferrule	0.3 dB	Zinc Die Cast	Gold
McGill Microwave Systems 2FA1-NCSJ-C04-6	141 303 58A 58B 58C 9907 Belden B7806A LMR-195 RG-58	50 Ohm	Crimp	1	Fakra SMB	Code C	Blue Signal	Crimp	Phosphor Bronze	Free Hanging (In-Line)	Female Socket Jack	Latch Lock	6000 MHz	100 °C	-40 °C	100 cycles	Polytetrafluoroethylene (PTFE)	Nickel	3 pcs	Connector Contact Ferrule	0.3 dB	Zinc Die Cast	Gold
McGill Microwave Systems 2FA1-NASP-C01-1	188 188A 316 LMR-100 M17/119-RG174 RG-174	50 Ohm	Crimp	1	Fakra SMB	Code A	Black Jet	Crimp	Brass	Free Hanging (In-Line)	Male Pin Plug	Locking Ramp	4 GHz	115 °C	-40 °C	100 cycles	Polymethylpentene (PMP) Polytetrafluoroethylene (PTFE)	Nickel	3 pcs	Connector Contact Ferrule	0.3 dB	Zinc Die Cast	Gold	A
McGill Microwave Systems 2FA1-NCSJ-C04-0	141 303 58A 58B 58C 9907 Belden B7806A LMR-195 RG-58	50 Ohm	Crimp	1	Fakra SMB	Code C	Blue Signal	Crimp	Phosphor Bronze	Free Hanging (In-Line)	Female Socket Jack	Latch Lock	6000 MHz	100 °C	-40 °C	100 cycles	Polytetrafluoroethylene (PTFE)	Nickel	3 pcs	Connector Contact Ferrule	0.3 dB	Zinc Die Cast	Gold
McGill Microwave Systems 2FA1-NASJ-C04-0	141 303 58A 58B 58C 9907 Belden B7806A LMR-195 RG-58	50 Ohm	Crimp	1	Fakra SMB	Code A	Black Jet	Crimp	Phosphor Bronze	Free Hanging (In-Line)	Female Socket Jack	Latch Lock	4 GHz	100 °C	-40 °C	100 cycles	Polytetrafluoroethylene (PTFE)	Nickel	3 pcs	Connector Contact Ferrule	0.3 dB	Zinc Die Cast	Gold	A
McGill Microwave Systems 2FA1-NZSP-C04-1	141 303 58A 58B 58C 9907 Belden B7806A LMR-195 RG-58	50 Ohm	Crimp	1	Fakra SMB	Code Z	Blue Water	Crimp	Brass	Free Hanging (In-Line)	Male Pin Plug	Locking Ramp	4 GHz	115 °C	-40 °C	100 cycles	Polymethylpentene (PMP) Polytetrafluoroethylene (PTFE)	Nickel	3 pcs	Connector Contact Ferrule	0.3 dB	Zinc Die Cast	Gold
McGill Microwave Systems 2FA1-NBRP-PCB-6		50 Ohm	Solder	1	Fakra SMB	Code B	Cream	Solder	Brass	Right Angle Through Hole	Male Pin Plug	Locking Ramp	4 GHz	165 °C	-65 °C	100 cycles	Polytetrafluoroethylene (PTFE)	Tin				Zinc Die Cast	Gold

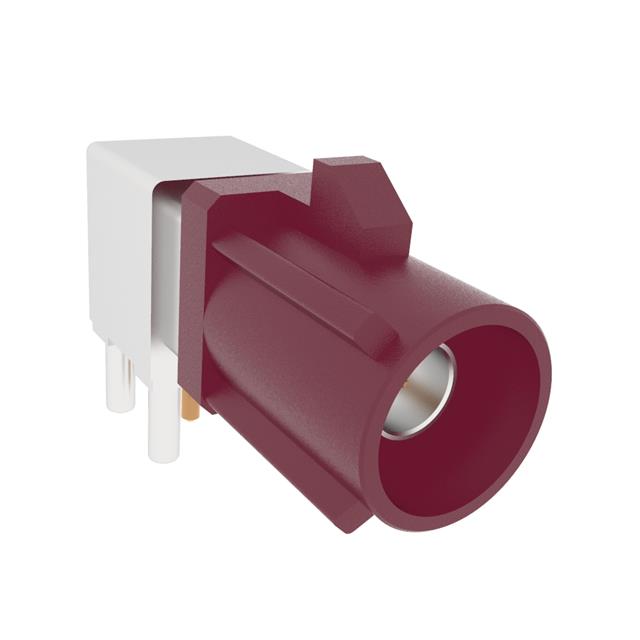

McGill Microwave Systems 2FA1-NDRP-PCB-6		50 Ohm	Solder	1	Fakra SMB	Code D	Claret Violet	Solder	Brass	Right Angle Through Hole	Male Pin Plug	Locking Ramp	4 GHz	165 °C	-65 °C	100 cycles	Polytetrafluoroethylene (PTFE)	Tin				Zinc Die Cast	Gold

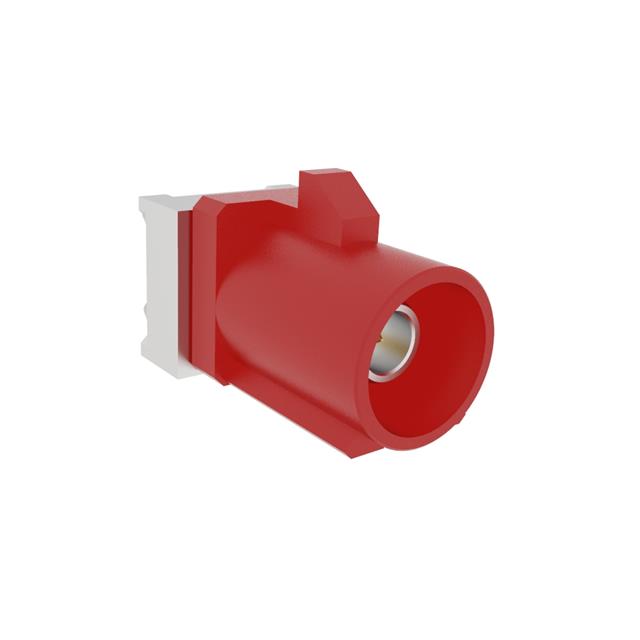

McGill Microwave Systems 2FA1-NLSP-PCBB6		50 Ohm	Solder	1	Fakra SMB	Code L	Carmine Red	Solder	Brass	Through Hole	Male Pin Plug	Locking Ramp	3 GHz	85 °C	-40 °C	100 cycles	Polytetrafluoroethylene (PTFE)	Tin				Zinc Die Cast	Gold
McGill Microwave Systems 2FA1-NDSJ-C04-0	141 303 58A 58B 58C 9907 Belden B7806A LMR-195 RG-58	50 Ohm	Crimp	1	Fakra SMB	Code D	Claret Violet	Crimp	Phosphor Bronze	Free Hanging (In-Line)	Female Socket Jack	Latch Lock	6000 MHz	100 °C	-40 °C	100 cycles	Polytetrafluoroethylene (PTFE)	Nickel	3 pcs	Connector Contact Ferrule	0.3 dB	Zinc Die Cast	Gold
