936154-1

Active

TE Connectivity AMP Connectors

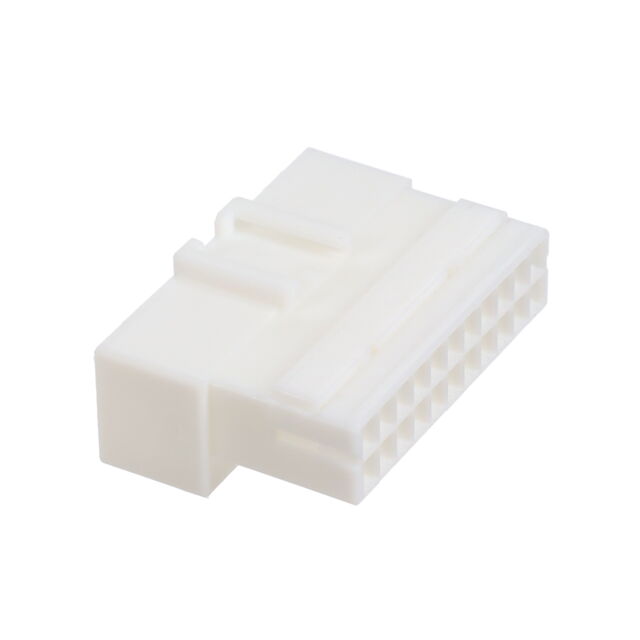

CONN RCPT HSG 22POS

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN RCPT HSG 22POS

Technical Specifications

Parameters and characteristics for this part

Specification	936154-1

Color	Natural
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Tab
Insulation Material	Polybutylene Terephthalate (PBT)
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	22 positions
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-30 ░C

CONN RCPT HSG 22POS

Part	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Contact Termination	Color	Mounting Type	Connector Type	Number of Rows	Insulation Material	Contact Type	Note
TE Connectivity AMP Connectors 936154-1	22 positions	-30 ░C	105 ░C	Crimp	Natural	Free Hanging (In-Line)	Receptacle	2	Polybutylene Terephthalate (PBT)	Tab	Contacts Not Included

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

22 Rectangular Connectors - Housings Receptacle Natural
