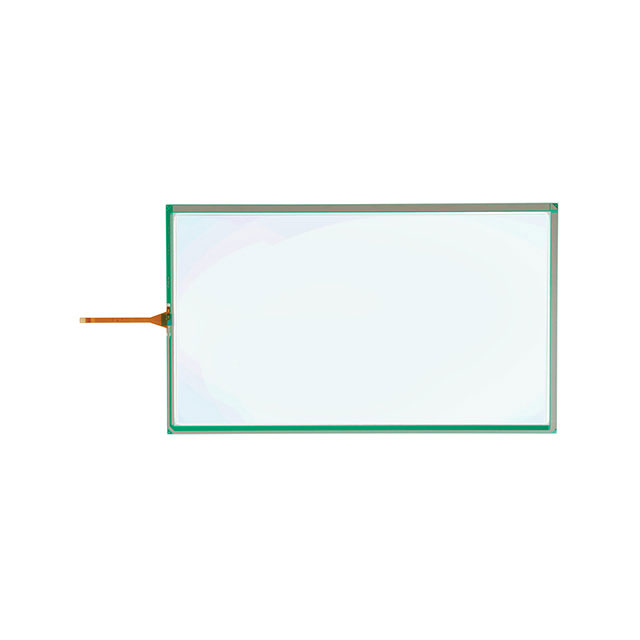

TP01156W-4KB
ObsoleteNKK Switches
TOUCH SCREEN RESISTIVE 15.6"
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TP01156W-4KB
ObsoleteNKK Switches
TOUCH SCREEN RESISTIVE 15.6"
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TP01156W-4KB |
|---|---|
| Diagonal Screen Size [custom] | 15.6 in |
| Diagonal Screen Size [custom] | 396.24 mm |
| Height [z] | 196.8 mm |
| Height [z] | 7.75 in |
| Interface | 4-Wire |
| Length | 347.5 mm |
| Length | 13.68 " |
| Type | Resistive |
| Width [y] | 2.1 mm |
| Width [y] | 0.08 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
TP01156 Series
Resistive Touch Screen Overlay 15.6" (396.24mm) 4-Wire
Documents
Technical documentation and resources
