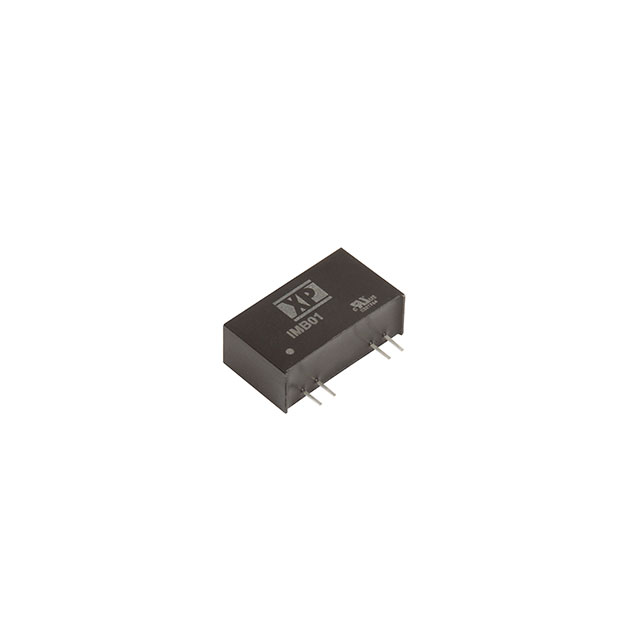

IMB0112S05
ActiveXP POWER
DC DC CONVERTER 5V 1W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
IMB0112S05
ActiveXP POWER
DC DC CONVERTER 5V 1W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | IMB0112S05 |
|---|---|
| Applications | Medical |
| Approval Agency | UL, TUV, CB |
| Current - Output (Max) [Max] | 200 mA |
| Efficiency | 79 % |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 105 C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 7-SIP Module, 4 Leads |
| Size / Dimension [x] | 0.87 in |
| Size / Dimension [x] | 22 mm |
| Size / Dimension [y] | 0.3 " |
| Size / Dimension [y] | 7.5 mm |
| Size / Dimension [z] | 0.49 in |
| Size / Dimension [z] | 12.5 mm |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 13.2 V |
| Voltage - Input (Min) [Min] | 10.8 V |
| Voltage - Isolation | 4000 V |
| Voltage - Output 1 | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 15.11 | |
| 5 | $ 14.66 | |||
| 10 | $ 14.20 | |||
| 25 | $ 13.60 | |||
| 100 | $ 12.69 | |||
Description
General part information
IMB0112 Series
Isolated Module DC DC Converter 1 Output 5V 200mA 10.8V - 13.2V Input
