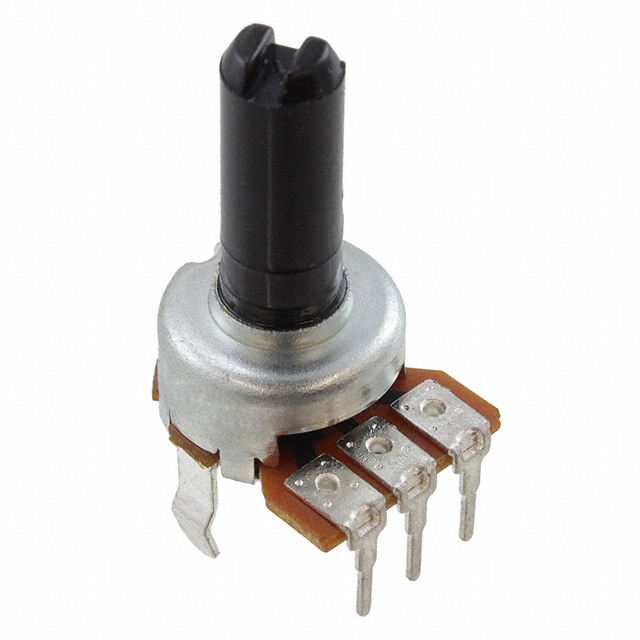

PDB12-H4251-103BF

Active

Bourns Inc.

POT 10K OHM 0.08W CARBON LINEAR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PDB12-H4251-103BF

Active

Bourns Inc.

POT 10K OHM 0.08W CARBON LINEAR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PDB12-H4251-103BF

Actuator Diameter [diameter]	0.236 in
Actuator Diameter [diameter]	6 mm
Actuator Length [x]	0.984 in
Actuator Length [x]	25 mm
Actuator Type	Flatted
Adjustment Type	Top Adjustment
Built in Switch	False
Mounting Type	Through Hole
Number of Gangs	1
Number of Turns	1
Power (Watts)	80 mW
Resistance (Ohms)	10k
Resistive Material	Carbon
Rotation	300 ░
Size - Body [x]	0.504 "
Size - Body [x]	12.8 mm
Size - Body [y]	12.4 mm
Size - Body [y]	0.488 in
Taper	Linear
Termination Style	Board Locks, PC Pins
Tolerance	20 %

PDB12 Series

Part	Adjustment Type	Power (Watts)	Number of Gangs	Actuator Diameter [diameter]	Actuator Diameter [diameter]	Taper	Actuator Type	Resistance (Ohms)	Rotation	Mounting Type	Number of Turns	Resistive Material	Termination Style	Size - Body [y]	Size - Body [x]	Size - Body [x]	Size - Body [y]	Tolerance	Actuator Length [z]	Actuator Length [z]	Actuator Length [x]	Actuator Length [x]	Resistance (Ohms)	Actuator Length
Bourns Inc. PDB12-H4201-202BF	Top Adjustment	80 mW	1	0.236 in	6 mm	Linear	Flatted	2k	300 ░	Through Hole	1	Carbon	Board Locks PC Pins	12.4 mm	0.504 "	12.8 mm	0.488 in	20 %	20 mm	0.787 in
Bourns Inc. PDB12-F4251-104BF	Side Adjustment	80 mW	1	0.236 in	6 mm	Linear	Flatted		300 ░	Through Hole	1	Carbon	Board Locks PC Pins	12.8 mm	0.65 "	12.8 mm	0.504 "	20 %			0.984 in	25 mm	100 kOhms
Bourns Inc. PDB12-H4251-103BF	Top Adjustment	80 mW	1	0.236 in	6 mm	Linear	Flatted	10k	300 ░	Through Hole	1	Carbon	Board Locks PC Pins	12.4 mm	0.504 "	12.8 mm	0.488 in	20 %			0.984 in	25 mm
Bourns Inc. PDB12-F4251-503BF	Side Adjustment	80 mW	1	0.236 in	6 mm	Linear	Flatted		300 ░	Through Hole	1	Carbon	Board Locks PC Pins	12.8 mm	0.65 "	12.8 mm	0.504 "	20 %			0.984 in	25 mm	50 kOhms
Bourns Inc. PDB12-M4251-103BF	Top Adjustment	80 mW	1	0.236 in	6 mm	Linear	Flatted	10k	300 ░	Through Hole	1	Carbon	PC Pins	12.4 mm	0.504 "	12.8 mm	0.488 in	20 %			0.984 in	25 mm
Bourns Inc. PDB12-F4251-254BF	Side Adjustment	80 mW	1	0.236 in	6 mm	Linear	Flatted	250k	300 ░	Through Hole	1	Carbon	Board Locks PC Pins	12.8 mm	0.65 "	12.8 mm	0.504 "	20 %			0.984 in	25 mm
Bourns Inc. PDB12-H4151-102BF	Top Adjustment	80 mW	1	0.236 in	6 mm	Linear	Flatted		300 ░	Through Hole	1	Carbon	Board Locks PC Pins	12.4 mm	0.504 "	12.8 mm	0.488 in	20 %		0.591 in			1 kOhms	15 mm
Bourns Inc. PDB12-M4201-203BF	Top Adjustment	80 mW	1	0.236 in	6 mm	Linear	Flatted		300 ░	Through Hole	1	Carbon	PC Pins	12.4 mm	0.504 "	12.8 mm	0.488 in	20 %	20 mm	0.787 in			20 kOhms
Bourns Inc. PDB12-M4251-105BF	Top Adjustment	80 mW	1	0.236 in	6 mm	Linear	Flatted	1M	300 ░	Through Hole	1	Carbon	PC Pins	12.4 mm	0.504 "	12.8 mm	0.488 in	20 %			0.984 in	25 mm
Bourns Inc. PDB12-F4251-503CF	Side Adjustment	80 mW	1	0.236 in	6 mm	Linear	Flatted		300 ░	Through Hole	1	Carbon	Board Locks PC Pins	12.8 mm	0.65 "	12.8 mm	0.504 "	20 %			0.984 in	25 mm	50 kOhms

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.28
		10	$ 1.13
		100	$ 0.94
		1000	$ 0.70
		5000	$ 0.57
		10000	$ 0.55

Description

General part information

PDB12 Series

10k Ohm 1 Gang Linear Through Hole Potentiometer 1.0 Turns Carbon 0.08W PC Pins, Board Locks
