WI-M-8-25-2

Active

MUELLER ELECTRIC

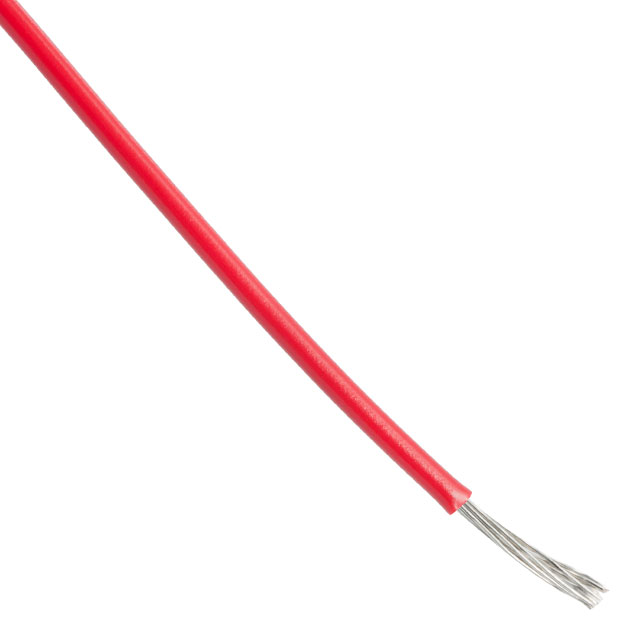

TEST LEAD WIRE, 8AWG, RED, 7.62M ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

MUELLER ELECTRIC

TEST LEAD WIRE, 8AWG, RED, 7.62M ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	WI-M-8-25-2	WI-M-8 Series

Conductor Material	Copper, Tinned	Copper, Tinned
Jacket (Insulation) Diameter [diameter]	5.99 mm	5.99 mm
Jacket (Insulation) Diameter [diameter]	0.236 in	0.236 in
Jacket Color	Red	Black, Red
Length	-	3.05 - 15.24 m
Length	-	10 ft
Length [x]	25 ft	25 - 100 ft
Length [x]	7.62 m	7.62 - 30.5 m
Voltage	1100 V	1100 V
Wire Gauge	8 AWG	8 AWG

TEST LEAD WIRE, 8AWG, BLACK, 30.5M ROHS COMPLIANT: YES

Part	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Wire Gauge	Jacket Color	Length [x]	Length [x]	Conductor Material	Voltage	Length	Length
MUELLER ELECTRIC WI-M-8-100-0	5.99 mm	0.236 in	8 AWG	Black	30.5 m	100 ft	Copper, Tinned	1100 V
MUELLER ELECTRIC WI-M-8-50-0	5.99 mm	0.236 in	8 AWG	Black		50 ft	Copper, Tinned	1100 V	15.24 m
MUELLER ELECTRIC WI-M-8-10-0	5.99 mm	0.236 in	8 AWG	Black			Copper, Tinned	1100 V	3.05 m	10 ft
MUELLER ELECTRIC WI-M-8-100-2	5.99 mm	0.236 in	8 AWG	Red	30.5 m	100 ft	Copper, Tinned	1100 V
MUELLER ELECTRIC WI-M-8-10-2	5.99 mm	0.236 in	8 AWG	Red			Copper, Tinned	1100 V	3.05 m	10 ft
MUELLER ELECTRIC WI-M-8-25-0	5.99 mm	0.236 in	8 AWG	Black	7.62 m	25 ft	Copper, Tinned	1100 V
MUELLER ELECTRIC WI-M-8-25-2	5.99 mm	0.236 in	8 AWG	Red	7.62 m	25 ft	Copper, Tinned	1100 V
MUELLER ELECTRIC WI-M-8-50-2	5.99 mm	0.236 in	8 AWG	Red		50 ft	Copper, Tinned	1100 V	15.24 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

8 AWG Test Lead Wire Red 1100V 25.00' (7.62m)
